Features & Details
- 【MPPT TECHNOLOGY】 - Precise tracking of maximum power points. The MPPT algorithm optimizes the power sensing of solar panels. It accurately captures and collects sunlight and stores the maximum output power points, significantly increasing power generation by over 25%. The monitoring system allows you to monitor the power plant's energy generation efficiency and reduce personnel costs.
- 【HIGH PERFORMANCE】 - Reverse power transmission. With efficient reverse power transmission technology, the power transmission rate reaches up to 99.9%. Full digital control is achieved through intelligent soft-switching technology and an integrated MCU for module loading. It incorporates a high-frequency switching power supply and SPWM control technology. This results in strong anti-interference capability, fast processing speed, high intelligence, high control accuracy, and excellent output waveform.
- 【PROTECTION & RELIABILITY】 - This IP65 waterproof design and aluminum alloy material effectively prevent rainwater erosion on the surface. It provides electrical insulation and is more reliable to use. It offers multiple protection functions such as overcurrent protection, short-circuit protection, low-voltage protection, and overvoltage protection.
- 【EASY OPERATION】 - Many inverters are lightweight and easy to install and can be stacked as needed to form a single-phase parallel stacking system. Almost no maintenance is required. Occasionally clean the dust off the photovoltaic module.
- 【SUSTAINABLE USE】 - The grid-tied solar micro-inverter can convert direct current (DC) generated by solar panels into alternating current (AC). Our solar inverter provides sustainable energy and offers excellent environmental benefits.
Frequently Bought Together
Reviews 4.6
All reviews are from verified purchases
Average rating based on 16 reviews
Reviews 4.6
All reviews are from verified purchases
See all 16 reviews
About this item
Product specification
- Recommended input power
- 1200 W
- We recommend using PV modules
- 4 x 300 W, 30-50 VOC
- Maximum DC input voltage
- 54 V
- Peak current tracking voltage
- 25-40 V
- Operating voltage range
- 17-50 V
- Min/Max starting voltage
- 22-50V
- Maximum DC short current
- 80A
- Maximum input current
- 54.4A
- Output power
- 220VAC
- Peak power
- 1200 W
- Nominal output power
- 1150 W
- Rated output current
- 5A
- Nominal voltage range
- 180-260 VAC
- Nominal frequency range
- 47-52.5 Hz
- Power factor
- > 99%
- Maximum units per branch circuit
- 6 (single-phase)
- Static MPPT efficiency
- 99.5%
- Maximum power efficiency
- 92.5%
- Nighttime electricity consumption
- <1W
- THD
- <5%
- Ambient temperature
- -40 ~ +60 ℃
- Operating temperature range (indoor inverter)
- -40 ~ +82 ℃
- Waterproof rating
- IP65
- Cooling
- Self-cooling
Description

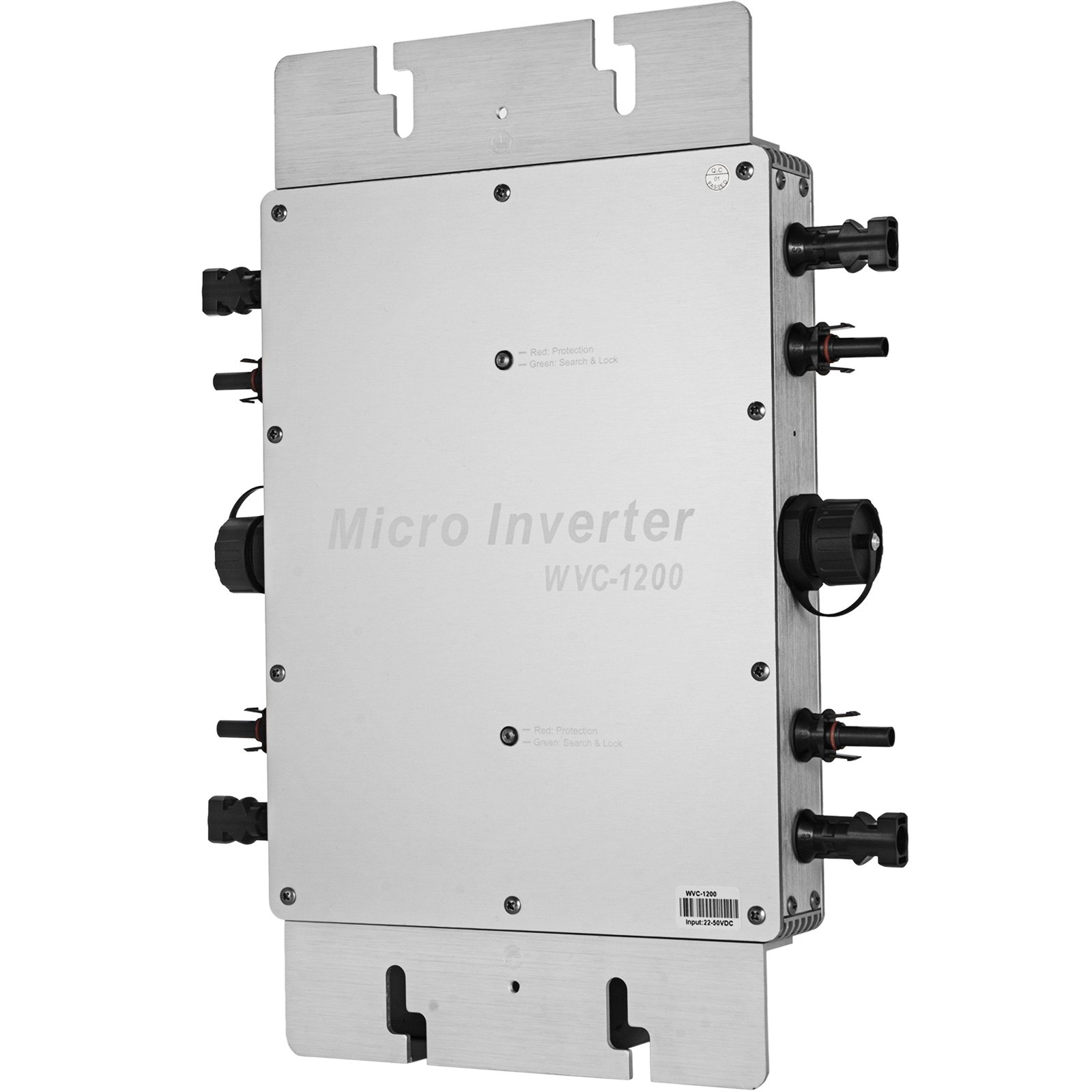

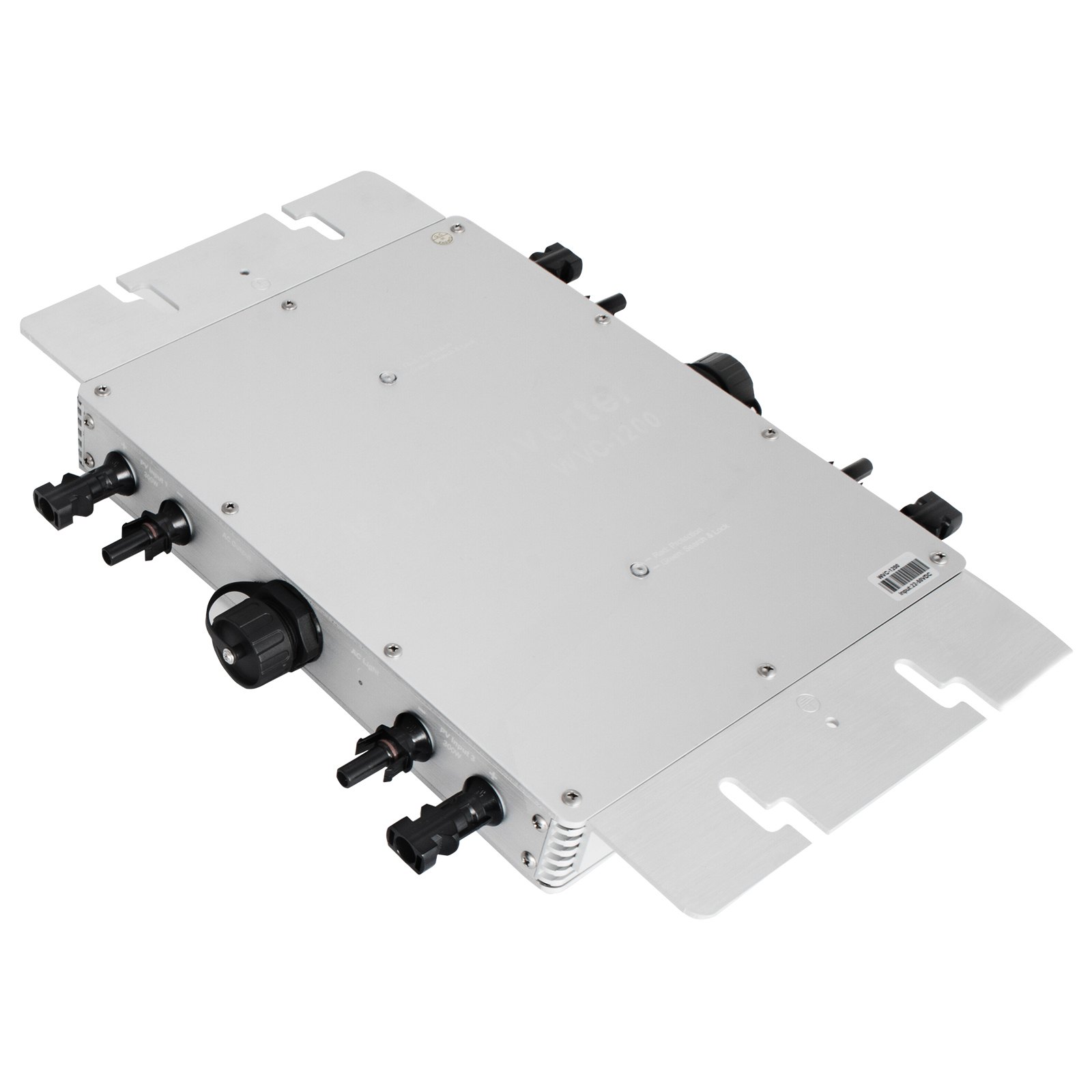

Solar Grid Tie Micro Inverter 220 V
Efficiently converts sunlight into clean, green electricity. Our grid-connected micro-inverter utilizes MPPT technology, reverse energy transfer, and digital control. It's designed to deliver enough power to run various household appliances. Furthermore, its IP65 waterproof design and aluminum alloy construction ensure an extended lifespan. Energy conservation is the first step towards sustainable energy, and this inverter aims to achieve just that.
- MPPT technology
- High performance
- Protection & Reliability
- Simple operation

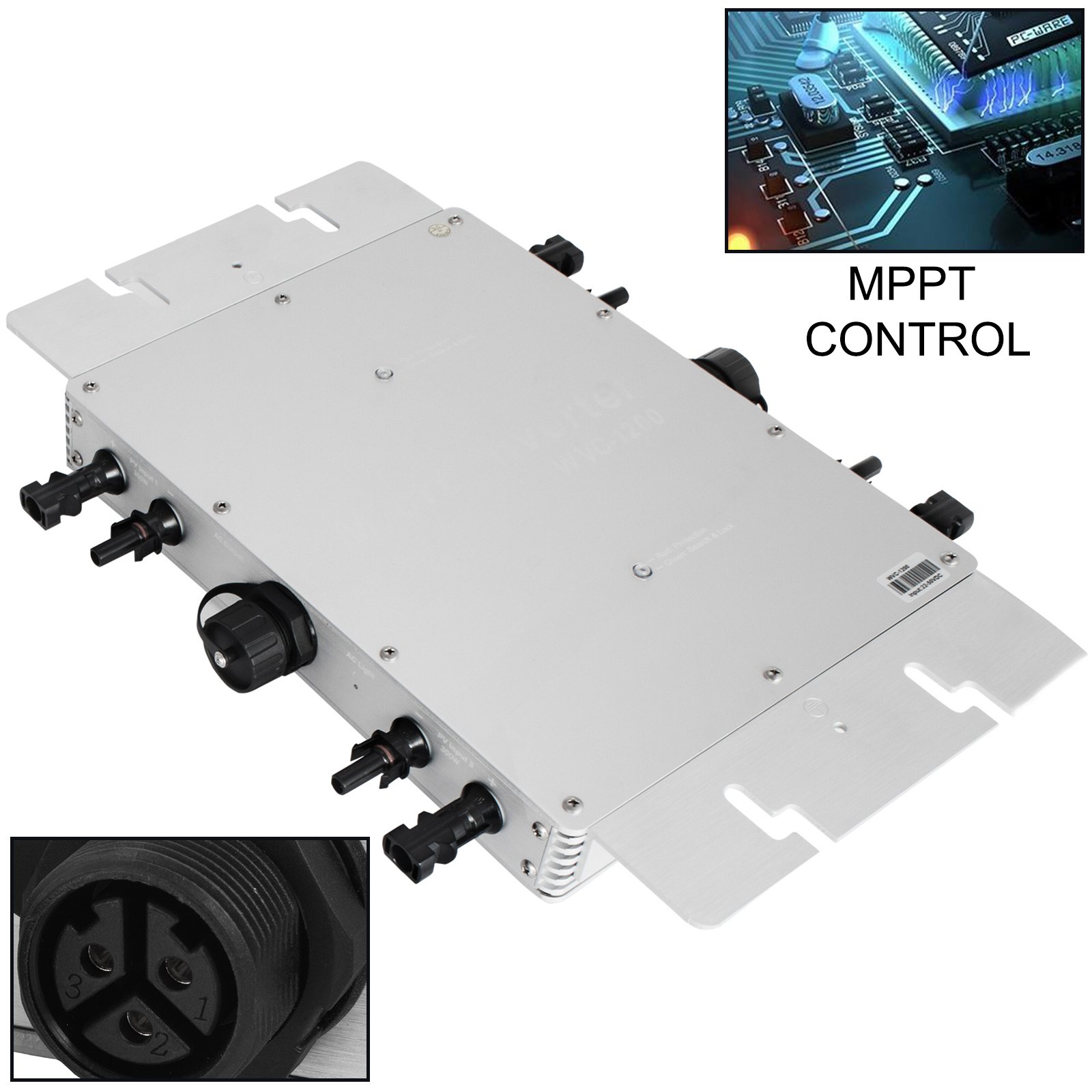

High level of automation
The robust MPPT algorithm can automatically track power points and increase power generation by 25%. With a real-time monitoring system, it can help you monitor power generation efficiency and reduce personnel costs.
Stable dual-channel technology

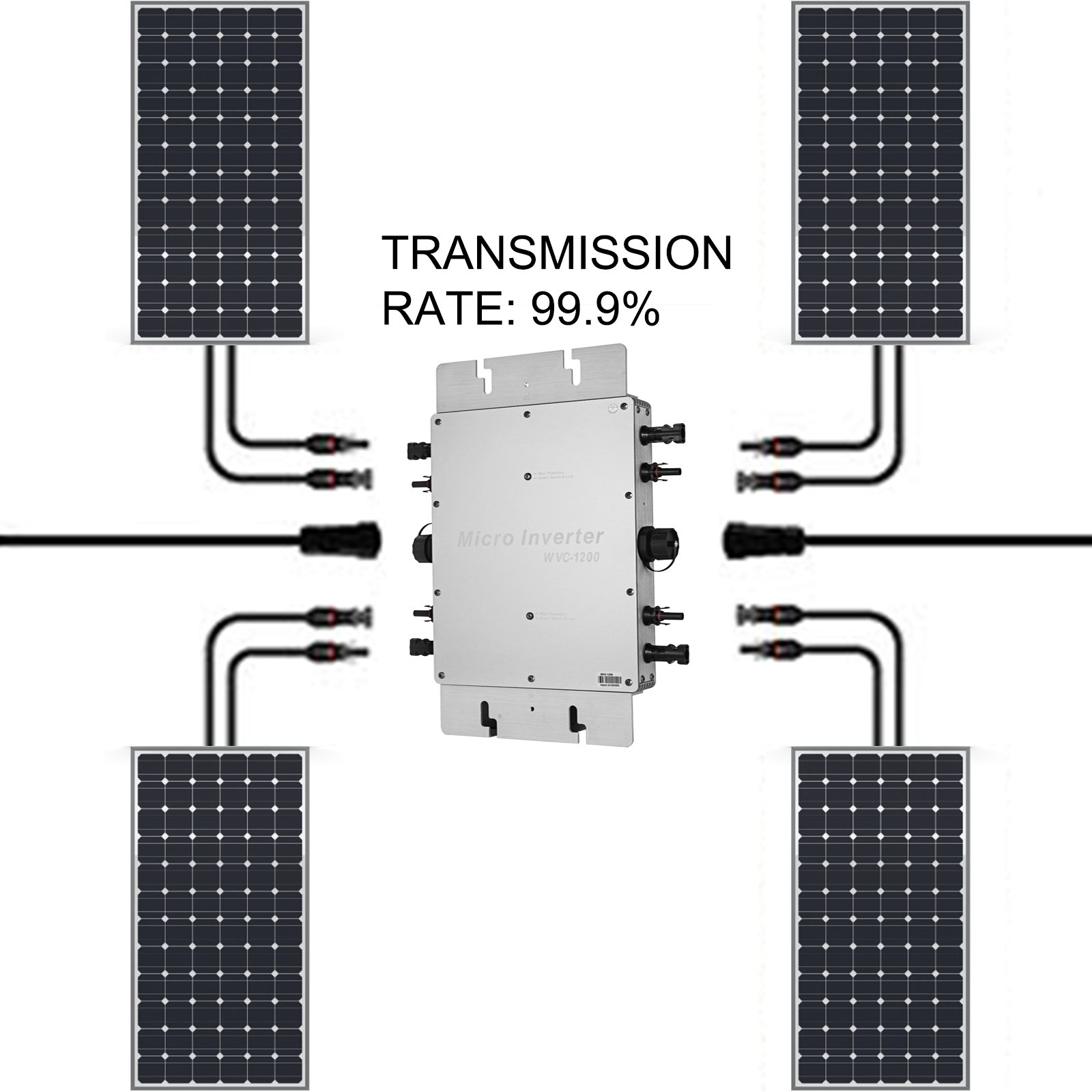

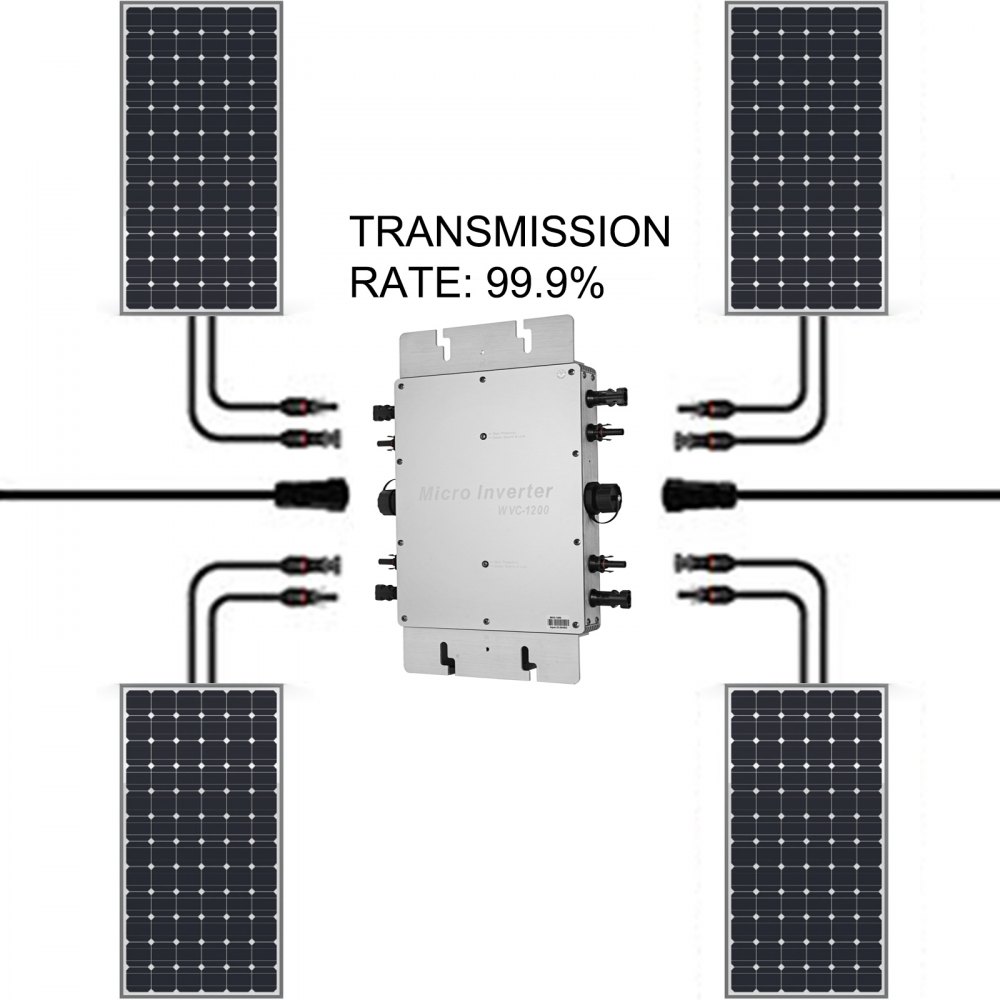

This inverter uses dual-channel circuit technology, meaning two photovoltaic panel inputs can share an MPPT system, ensuring power output and transmission stability. During operation, these two channels will never interfere with each other while tracking the point of maximum power, efficiently increasing the power transmission rate to up to 99.9%.

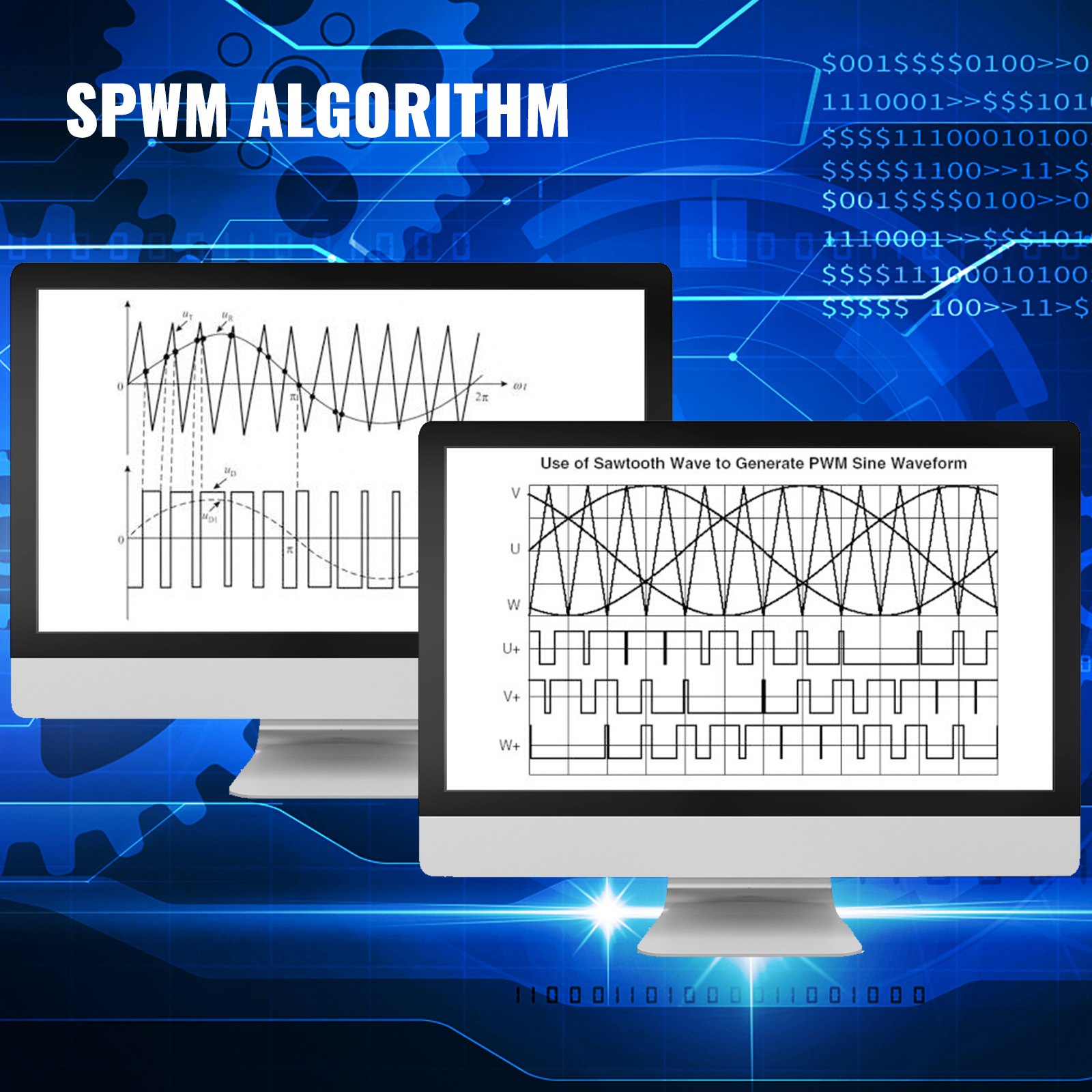

Digital control
Digital SPWM control technology is characterized by strong interference immunity, fast calculation speed, high level of intelligence, high control accuracy and excellent output waveform.

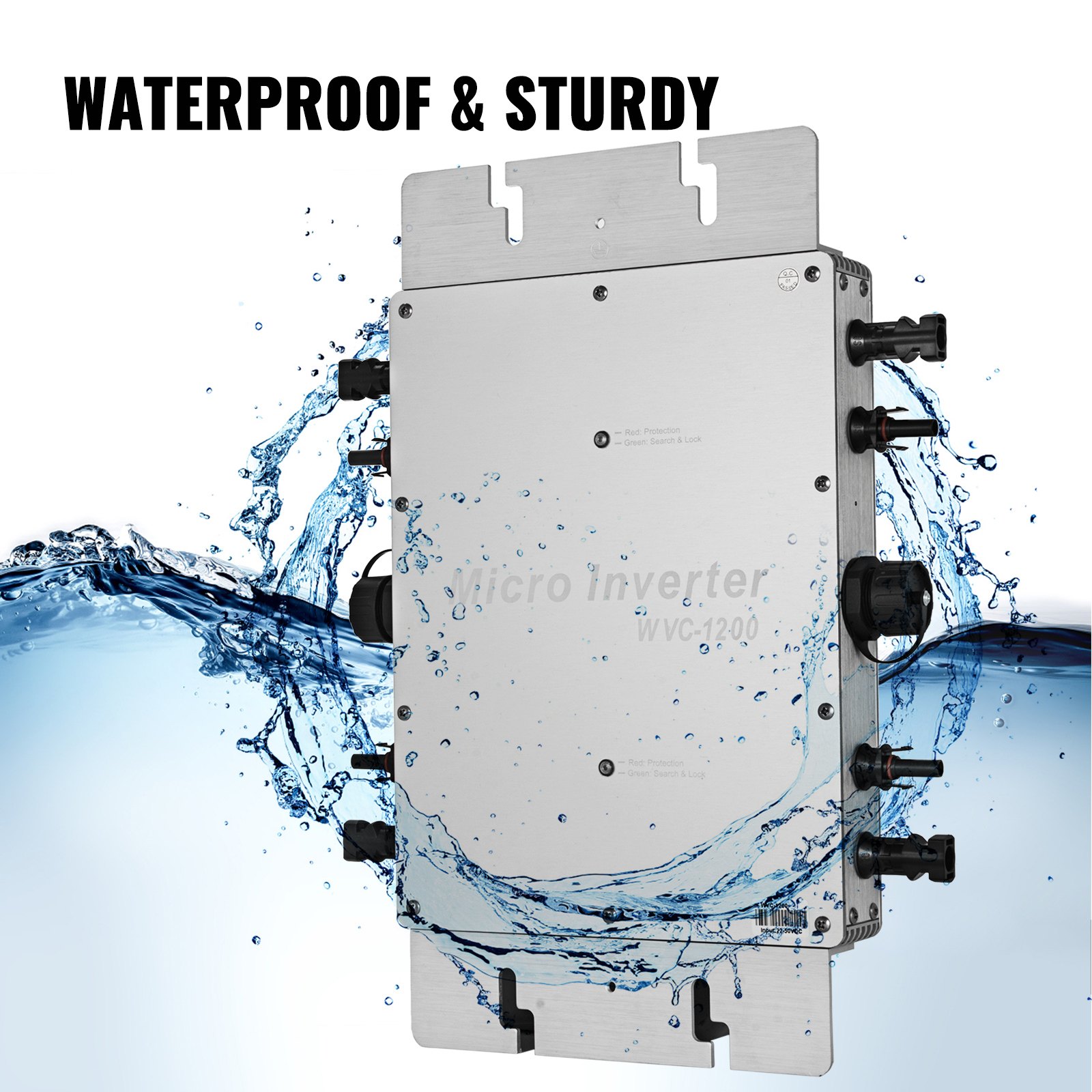

IP65 & Aluminum Material
With its IP65 waterproof design and aluminum alloy construction, it is safe and reliable. Multiple protective features are incorporated to extend its lifespan.
Easy to use

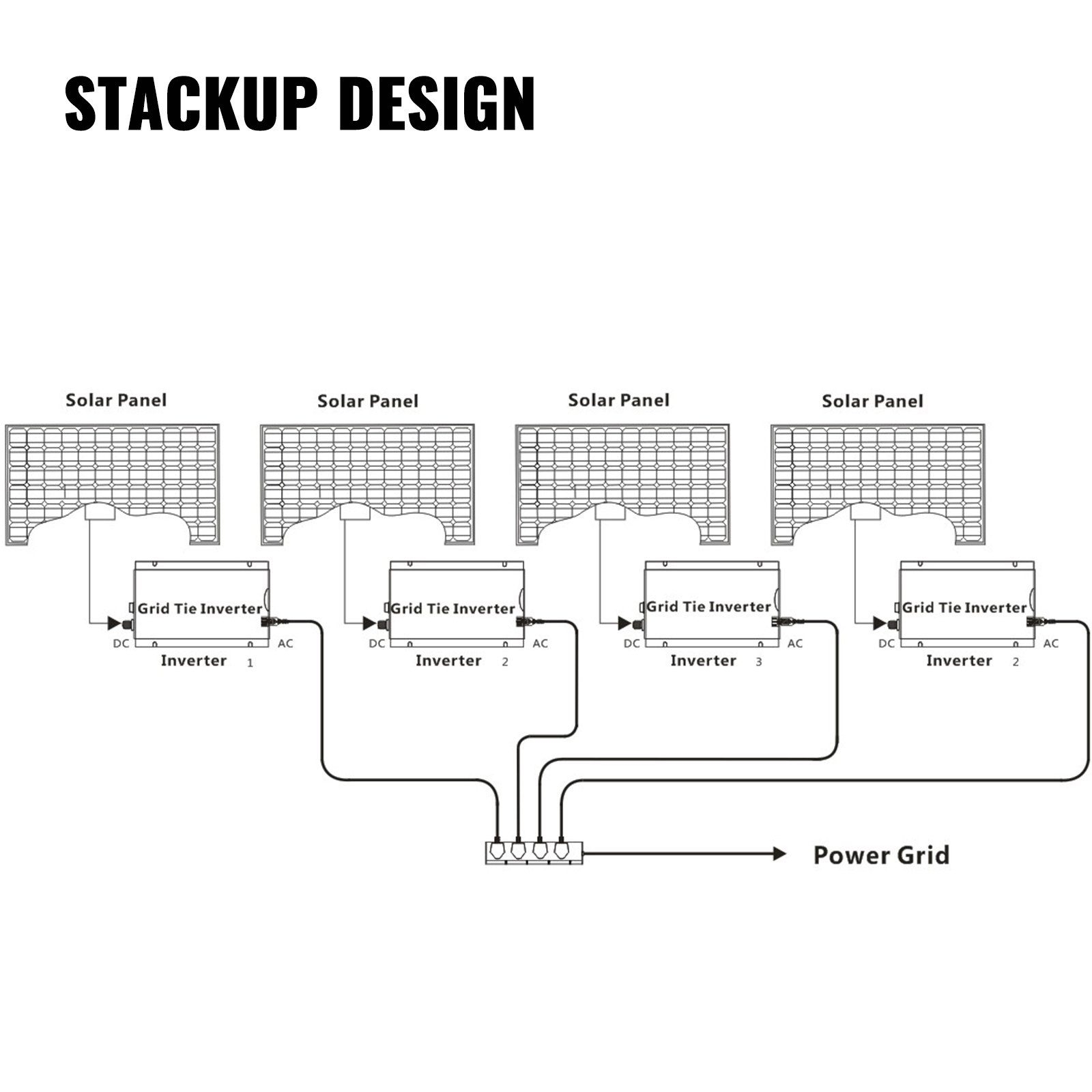

Many inverters are lightweight and easy to install, and can be stacked in any configuration to form a single-phase parallel stacking system. Installation and maintenance are simple.
Wide range of uses
It is suitable for various household appliances. It can convert the direct current generated by solar panels into alternating current, which is then available for household appliances.
- Recommended input power: 1200 W
- We recommend using PV modules: 4 x 300 W, 30-50 VOC
- Maximum DC input voltage: 54 V
- Peak current tracking voltage: 25-40 V
- Operating voltage range: 17-50 V
- Min/Max starting voltage: 22-50V
- Maximum DC short current: 80A
- Maximum input current: 54.4A
- Output power: 220VAC
- Peak power: 1200 W
- Nominal output power: 1150 W
- Rated output current: 5A
- Nominal voltage range: 180-260 VAC
- Nominal frequency range: 47-52.5 Hz
- Power factor: > 99%
- Maximum units per branch circuit: 6 (single-phase)
- Static MPPT efficiency: 99.5%
- Maximum power efficiency: 92.5%
- Nighttime electricity consumption: <1W
- THD: <5%
- Ambient temperature: -40 ~ +60 ℃
- Operating temperature range (indoor inverter): -40 ~ +82 ℃
- Waterproof rating: IP65
- Cooling: Self-cooling

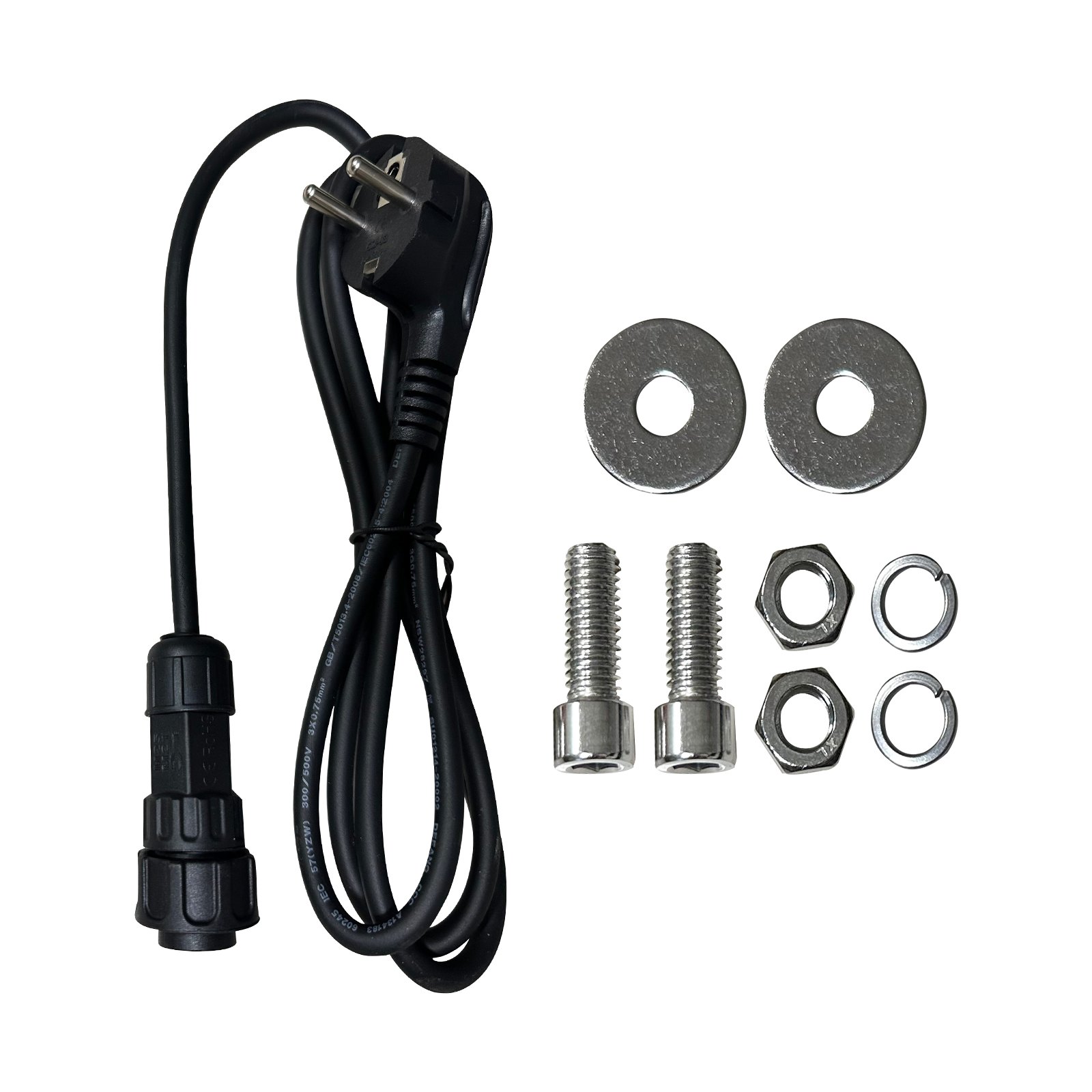

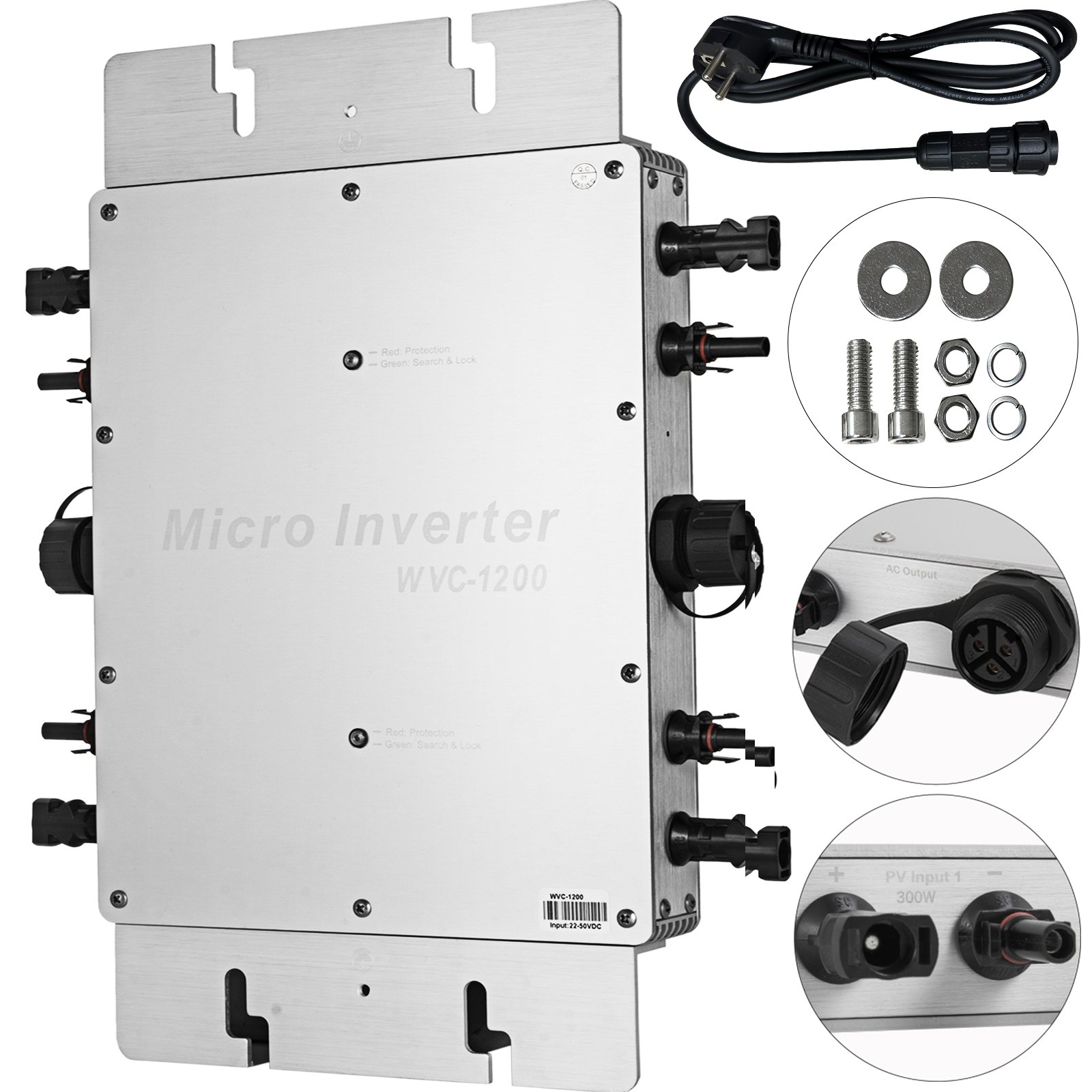

- 1 x 1200W Solar Grid Tie Micro Inverter
- 1 x T-plug
- 1 x 1.5 m power cable
- 1 x set of mounting accessories
- 1 x Product manual
Solar Grid Tie Micro Inverter 220 V
Efficiently converts sunlight into clean, green electricity. Our grid-connected micro-inverter utilizes MPPT technology, reverse energy transfer, and digital control. It's designed to deliver enough power to run various household appliances. Furthermore, its IP65 waterproof design and aluminum alloy construction ensure an extended lifespan. Energy conservation is the first step towards sustainable energy, and this inverter aims to achieve just that.
- MPPT technology
- High performance
- Protection & Reliability
- Simple operation
High level of automation
The robust MPPT algorithm can automatically track power points and increase power generation by 25%. With a real-time monitoring system, it can help you monitor power generation efficiency and reduce personnel costs.
Stable dual-channel technology
This inverter uses dual-channel circuit technology, meaning two photovoltaic panel inputs can share an MPPT system, ensuring power output and transmission stability. During operation, these two channels will never interfere with each other while tracking the point of maximum power, efficiently increasing the power transmission rate to up to 99.9%.
Digital control
Digital SPWM control technology is characterized by strong interference immunity, fast calculation speed, high level of intelligence, high control accuracy and excellent output waveform.
IP65 & Aluminum Material
With its IP65 waterproof design and aluminum alloy construction, it is safe and reliable. Multiple protective features are incorporated to extend its lifespan.
Easy to use
Many inverters are lightweight and easy to install, and can be stacked in any configuration to form a single-phase parallel stacking system. Installation and maintenance are simple.
Wide range of uses
It is suitable for various household appliances. It can convert the direct current generated by solar panels into alternating current, which is then available for household appliances.
- 1 x 1200W Solar Grid Tie Micro Inverter
- 1 x T-plug
- 1 x 1.5 m power cable
- 1 x set of mounting accessories
- 1 x Product manual
- Recommended input power: 1200 W
- We recommend using PV modules: 4 x 300 W, 30-50 VOC
- Maximum DC input voltage: 54 V
- Peak current tracking voltage: 25-40 V
- Operating voltage range: 17-50 V
- Min/Max starting voltage: 22-50V
- Maximum DC short current: 80A
- Maximum input current: 54.4A
- Output power: 220VAC
- Peak power: 1200 W
- Nominal output power: 1150 W
- Rated output current: 5A
- Nominal voltage range: 180-260 VAC
- Nominal frequency range: 47-52.5 Hz
- Power factor: > 99%
- Maximum units per branch circuit: 6 (single-phase)
- Static MPPT efficiency: 99.5%
- Maximum power efficiency: 92.5%
- Nighttime electricity consumption: <1W
- THD: <5%
- Ambient temperature: -40 ~ +60 ℃
- Operating temperature range (indoor inverter): -40 ~ +82 ℃
- Waterproof rating: IP65
- Cooling: Self-cooling
Questions and Answers (31)
dove si collegano le batterie?
Collegare la batteria al terminale di ingresso e collegare alla batteria di accumulo 36v.
By vevor
Helpful
(
20
)
Salve io vorrei collegare 4 pannelli ogni pannello è 450w tensione 48v posso collegarli all'inverter da 1200w?
Sì, è possibile collegare 4 pannelli, 450 W per pannello, tensione 48 V, il prodotto è adatto.
By vevor
Helpful
(
11
)
posso collegare 4 pannelli da 400watt posso collegare 7 batterie da 100 amp in serie
Qual è la tensione di un pannello batteria?
By vevor
Helpful
(
11
)
O 2 pannelli di 395W e 49,4 V ogni uno poi 2pannelli di 100w e 21v posso collegare? alle 4 uscite?
Ciao, due 200 W e 21 V dovrebbero essere collegati in serie per formare un gruppo, oppure due 395 W e 49,4 V dovrebbero essere usati come un unico gruppo di input.
By vevor
Helpful
(
4
)
buongiorno. Le singole entrate dai pannelli possono superare i 300w oppure no? Mi spiego, se metto due soli pannelli (ma da 450 watt l'uno) va bene oppure ogni "porta in entrata" non può superare i 300w?
Ciao, può superare i 300W.
By vevor
Helpful
(
3
)
