Features & Details

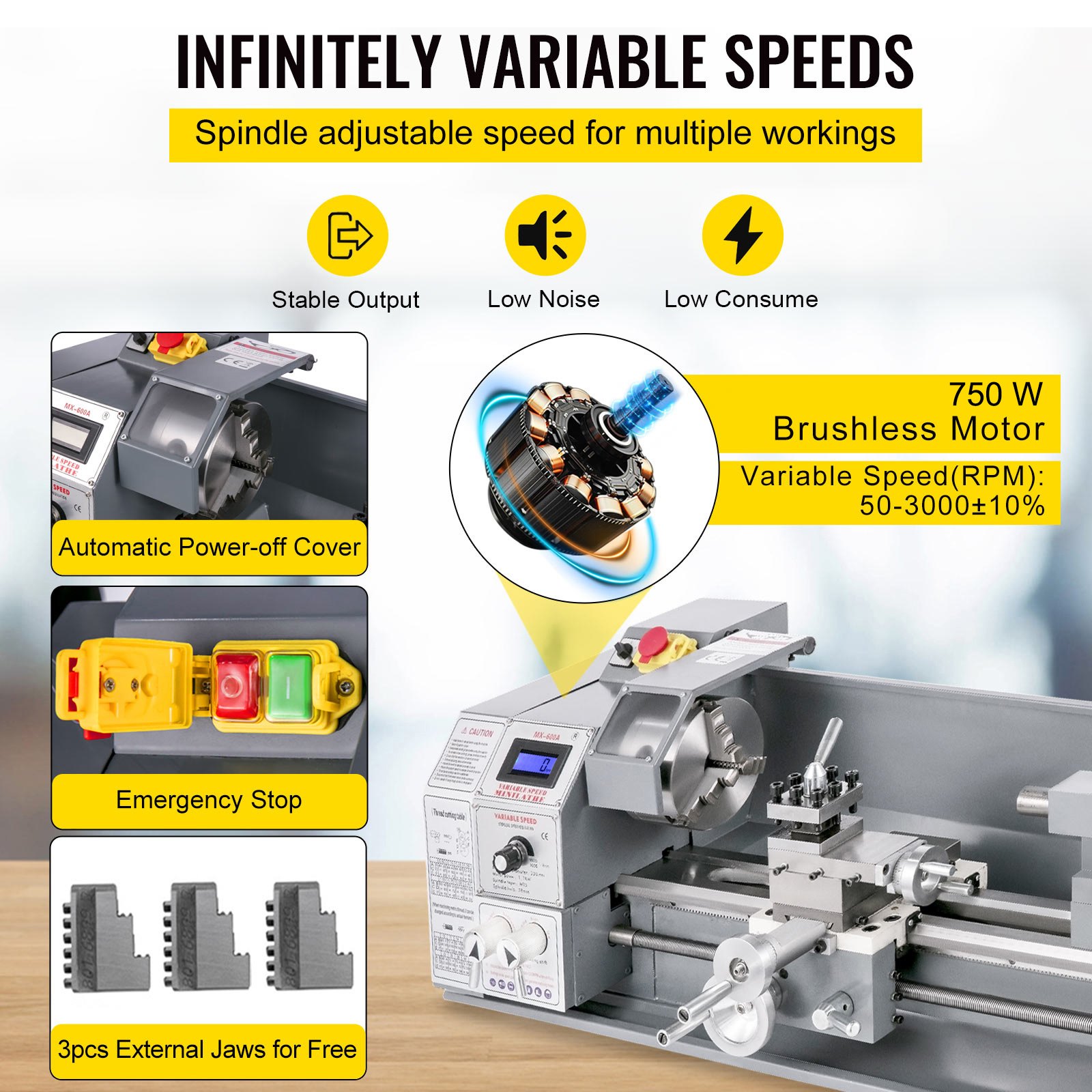

- Infinitely variable speed control: The mini metal lathe is powered by a 750W brushless motor. Variable speed (RPM): 50-3000±10%. Spindle taper: MT5. The LED display clearly shows the speed for precise work. Soft start, switch for clockwise or counterclockwise spindle rotation. Operation is possible manually or with adjustable automatic feed.

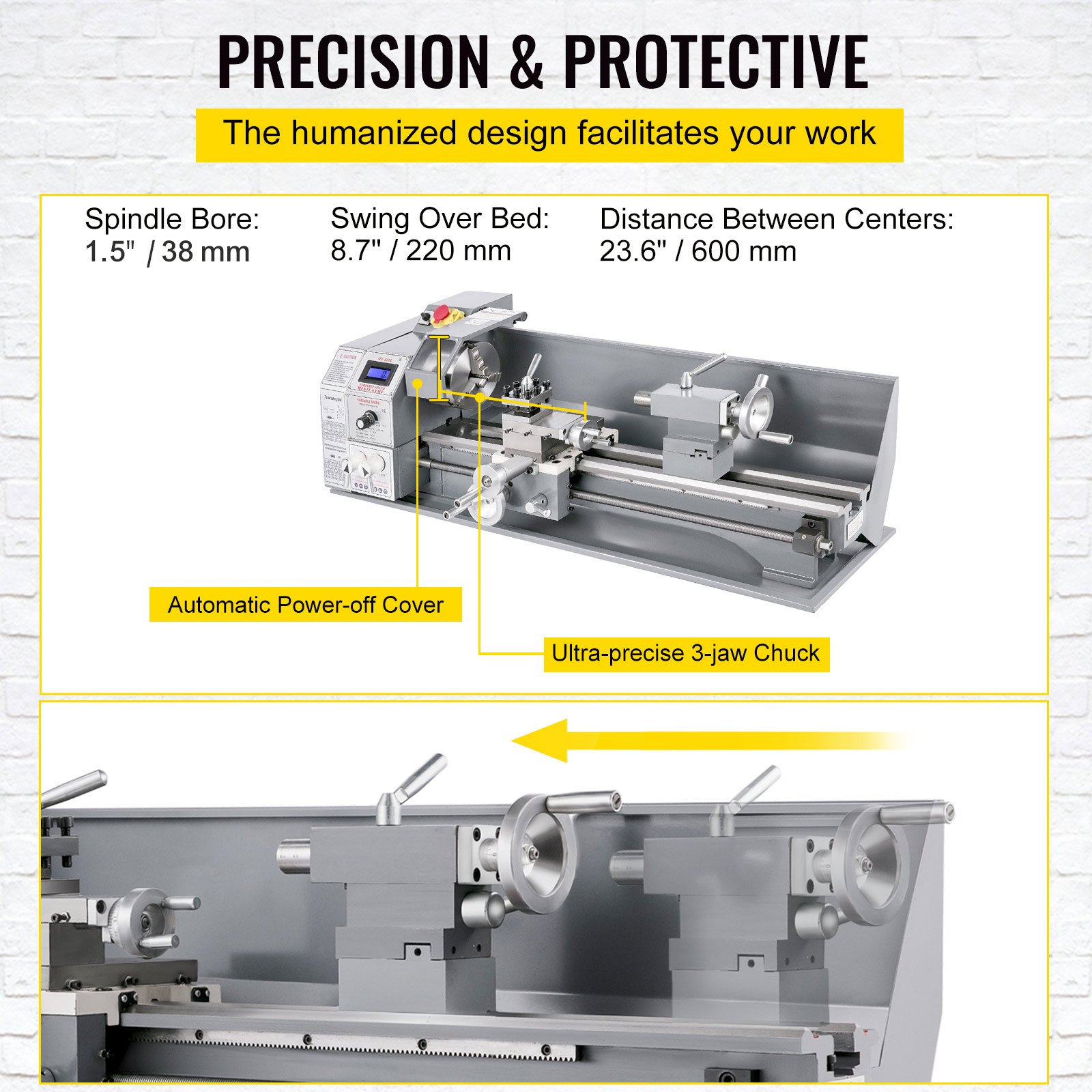

- 600 mm swivel range: The bench lathe features a 4.9-inch (125 mm) diameter three-jaw chuck. The 8.7-inch (220 mm) swivel range over the bed and the 23.6-inch (600 mm) swivel range over the cross slide offer greater flexibility for large or heavy workpieces. Inch thread range: 8-44 TPI available.
- Compact tool holder: The tool holder of the mini lathe can be changed quickly and enables the cutting of internal and external surfaces as well as angled surfaces. This is achieved by adjusting the angle of the tool holder and the support, while the cutting tools can be freely moved with the feed rod. The heat-hardened lead screw can be switched between three speeds by turning the two handles below the rotary switch.
- Safety & Protection: The steady rest acts as an end support and ensures stable operation. The follower steady rest is used for turning long, narrow workpieces. Includes edge protection. A digital display clearly shows the speed and ensures precise, smooth operation.
- Adjustable tailstock: Tailstock taper: MT2. Turn the lever clockwise to lock the tailstock and advance the handwheel. Tailstock offset for taper cutting is achieved by adjusting the four set screws at the tailstock base.
Frequently Bought Together
Reviews 4.7
All reviews are from verified purchases
Average rating based on 12 reviews
Reviews 4.7
All reviews are from verified purchases
See all 12 reviews
About this item
Product specification
- Power
- 750 W
- Motor type
- Brushless
- Voltage
- 220 V 50 Hz
- Phase
- Single-phase
- Swivel range above bed
- 8.7 inches / 220 mm
- Tip spacing
- 23.6 inches / 600 mm
- 3-jaw chuck diameter
- 4.9 inches / 125 mm
- Spindle bore
- 1.5 inches / 38 mm
- Variable speed (rpm)
- 50-3000±10%
- Spindle cone
- MT#5
- Tailstock taper
- MT#2
- Spindle accuracy
- 0.01 mm
- Inch thread range
- 8-44 TPI
- Longitudinal feed range
- 0.02-0.1 inch / 0.5-3 mm
- Gear material
- Metal
- Item weight
- 183 lbs / 83 kg

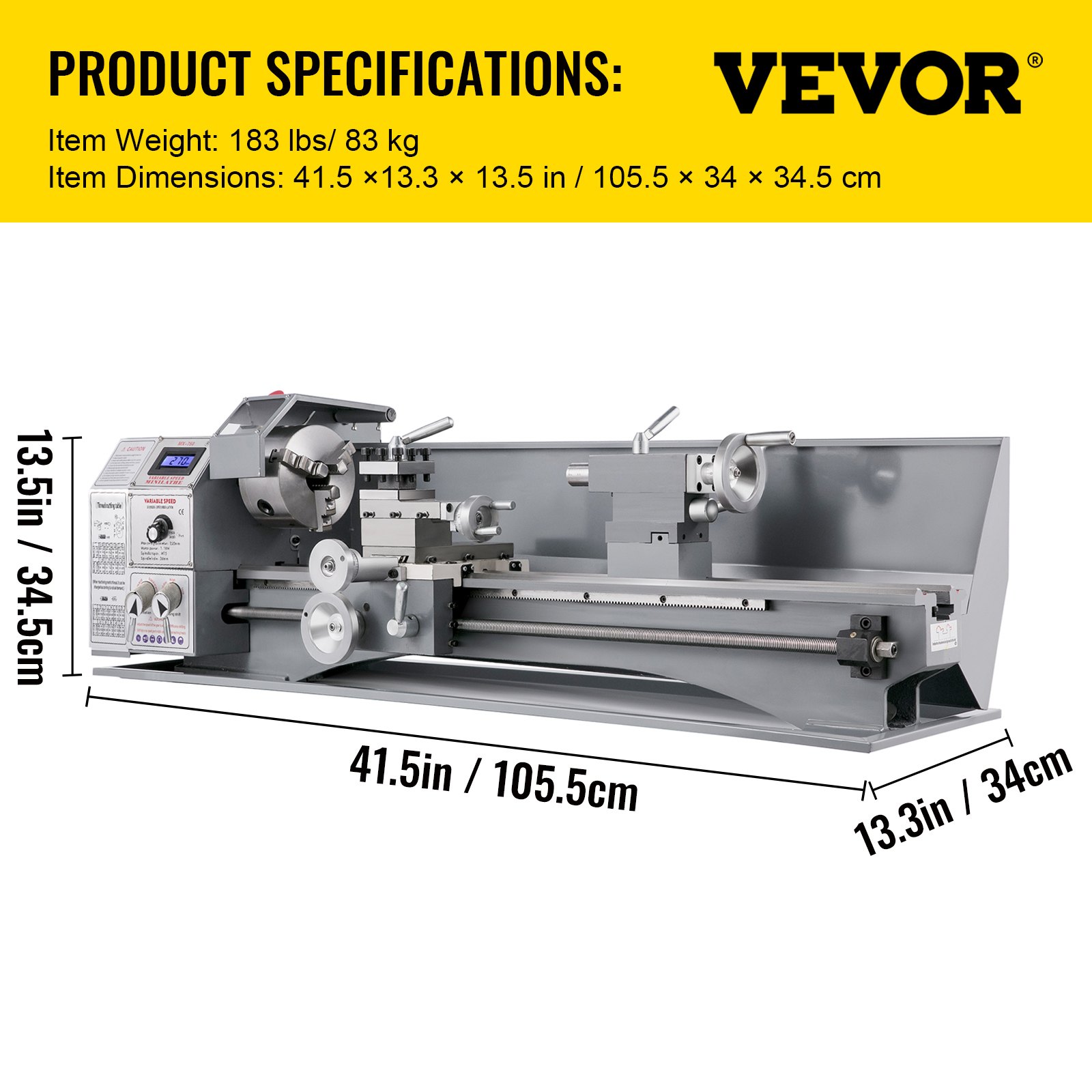

- Dimensions
- 41.5 x 13.3 x 13.5 inches / 105.5 x 34 x 34.5 cm
Description

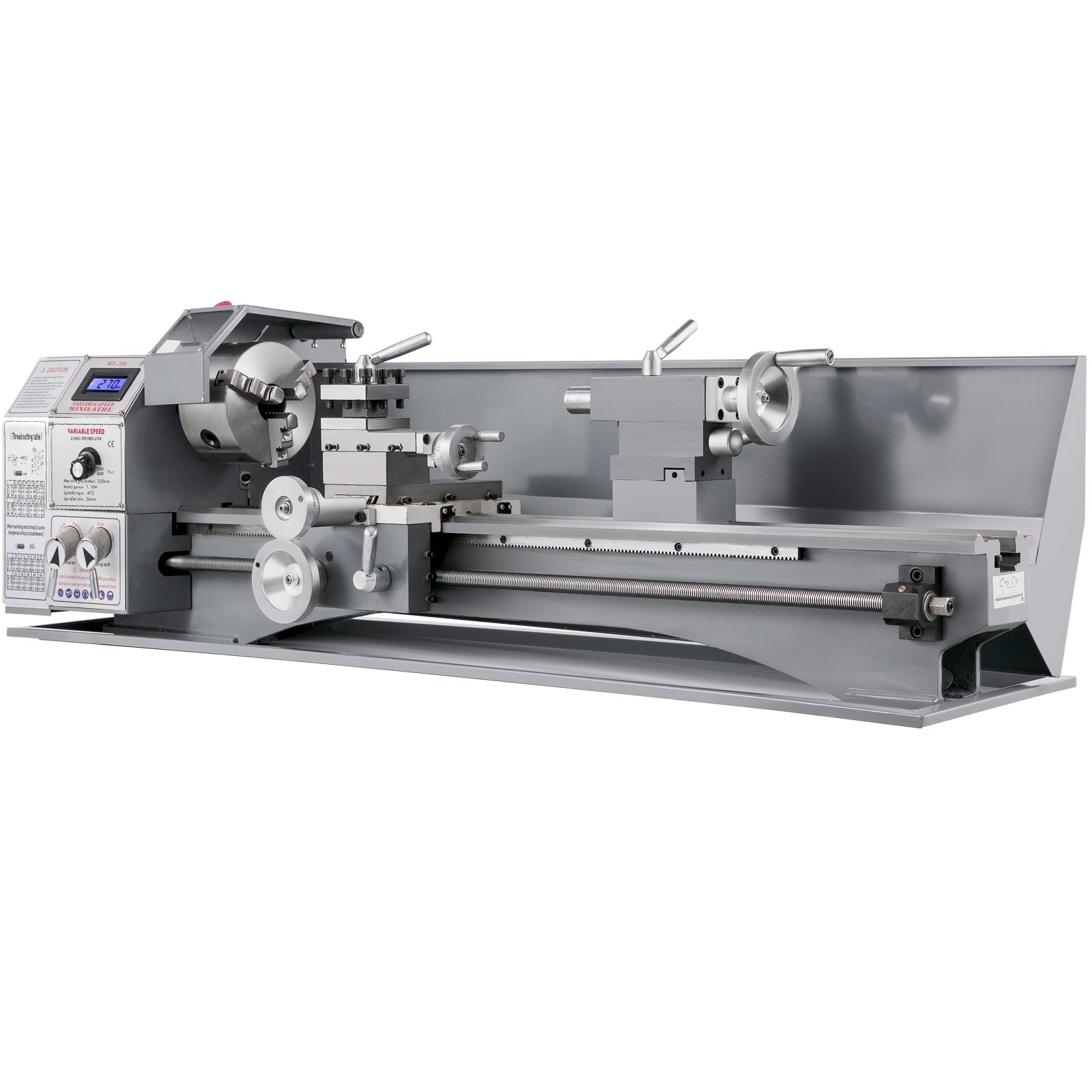

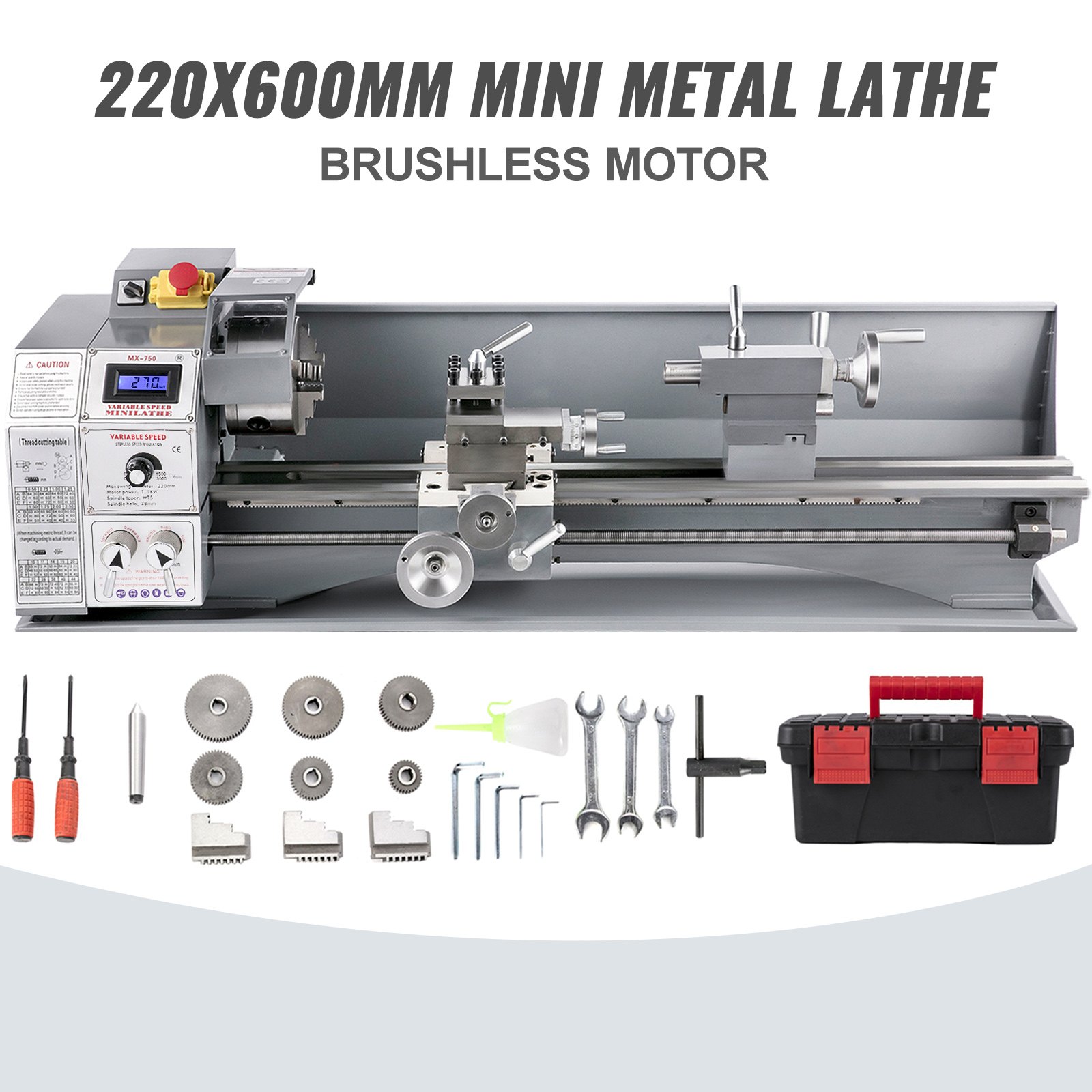

220 x 600 mm Mini Metal Lathe
The 220 x 600 mm precision mini lathe features a 750 W motor, a three-jaw chuck, an MT5 spindle taper, and an MT2 tailstock taper. It is designed for various types of metal turning and is easy to operate. The high-quality cast iron bed is manufactured using high-frequency quenching and precision grinding. The spindle speed is continuously variable from 500 to 3000 ±10% RPM. A steady rest and follower rest are available for large and/or heavy workpieces.
- Variable speed control
- 600 mm swivel range
- Compact tool holder
- Safety & Protection
- Adjustable tailstock

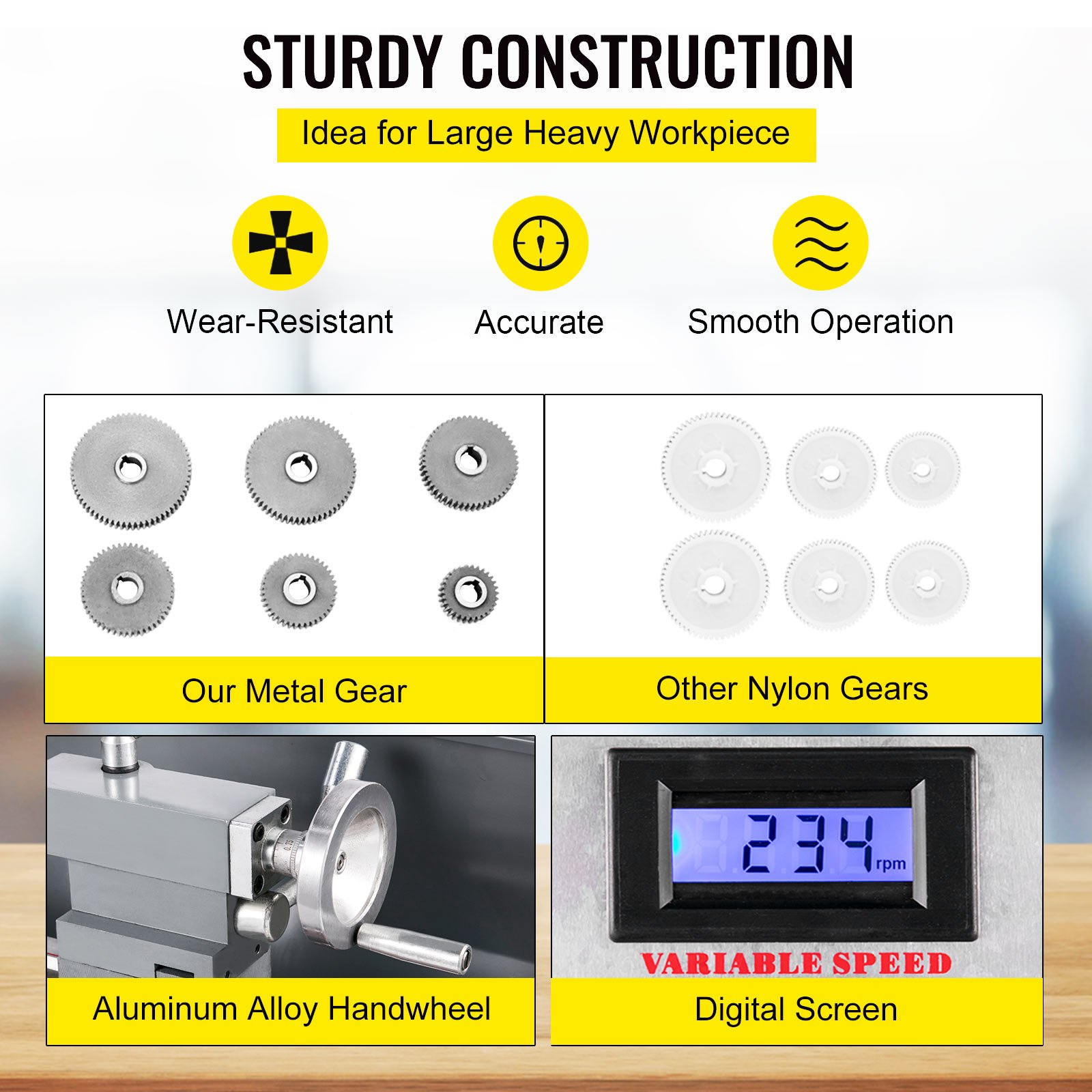

Heavy-duty metal lathe
The milling machine is made of robust and wear-resistant cast iron, a durable material characterized by a long service life.
Adjustable speed

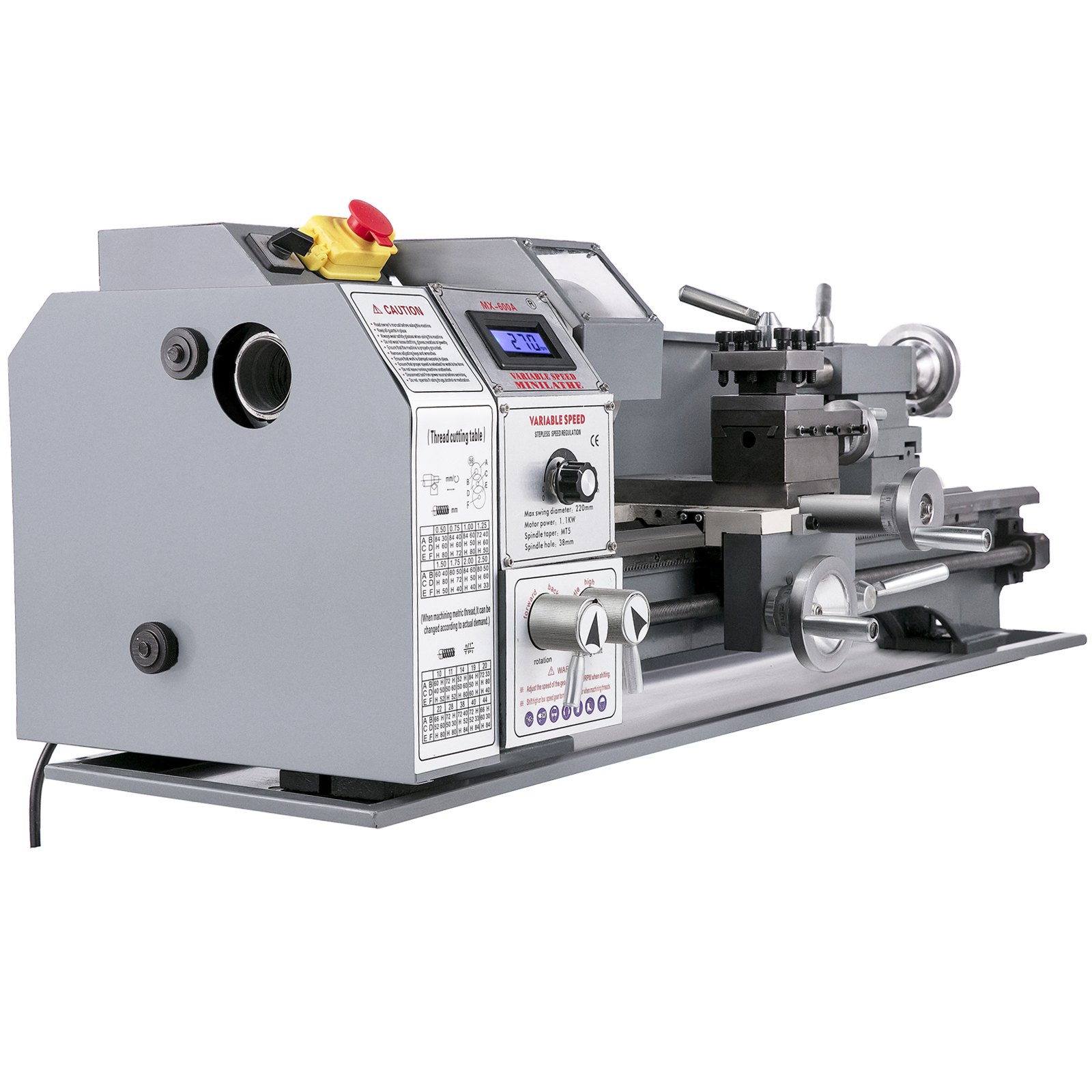

Brushless motor, power: 750 W, variable speed (rpm): 50-3000±10%. Spindle taper: MT5. Simply change the speed by turning the switch. The operating indicator informs you about the ongoing work.
Easy to use

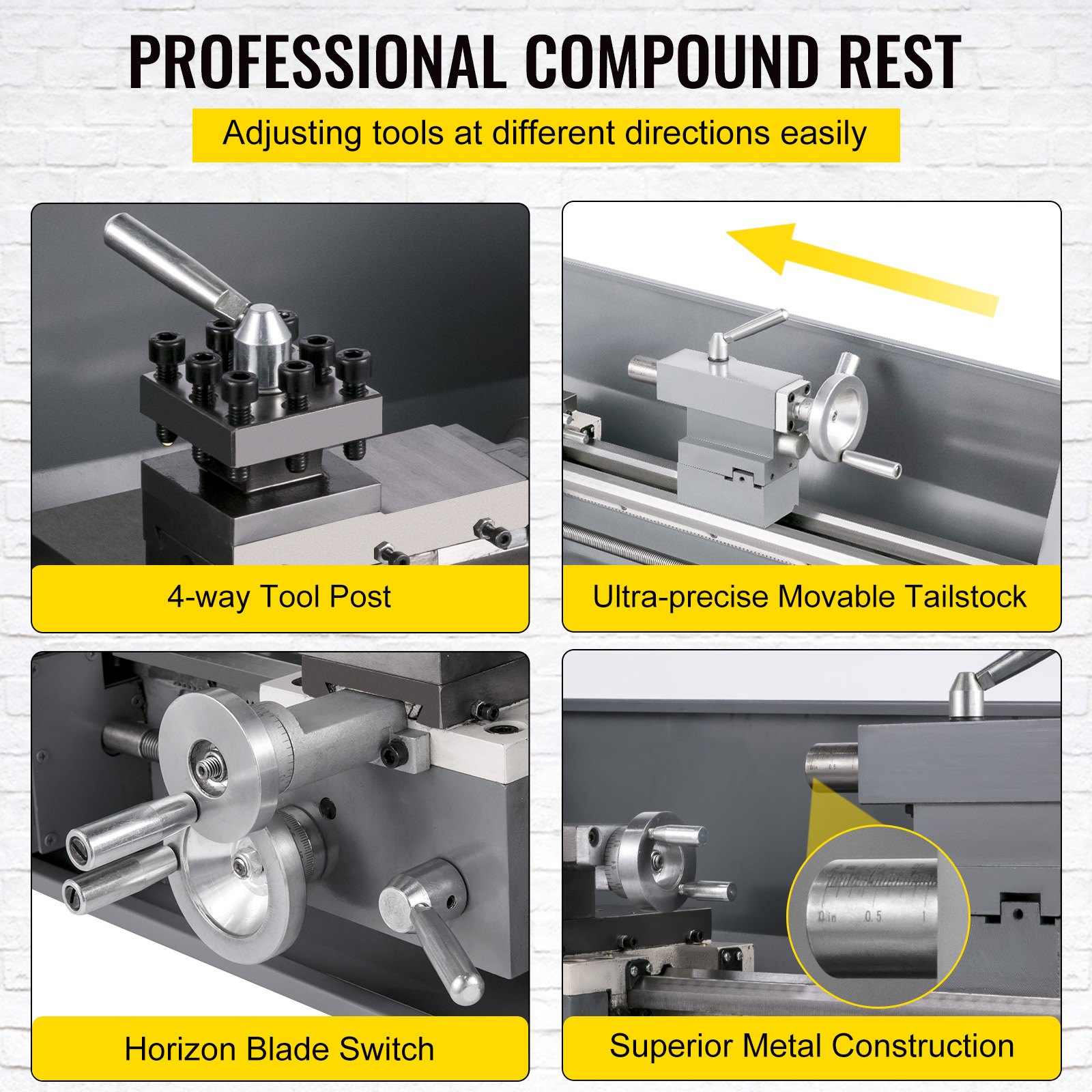

The mini lathe features a three-jaw chuck and a 38 mm (1.5 in) spindle bore. It is frequently used when precise machining is required. The lathe's 4-way turret is easy to adjust, and changing cutting tools is convenient.
MT 2 tailstock taper
The lathe is equipped with a tailstock that supports the longitudinal axis of rotation of the workpiece being machined. This makes your work safer and more stable.
Compact cross slide
Constructed with wear-resistant, freely moving blades and a feed rod. 8-44 TPI adjustable leadscrew. V-slides with a distance between centers of 23.6 inches / 600 mm. A lamp enables precise work in dark environments.

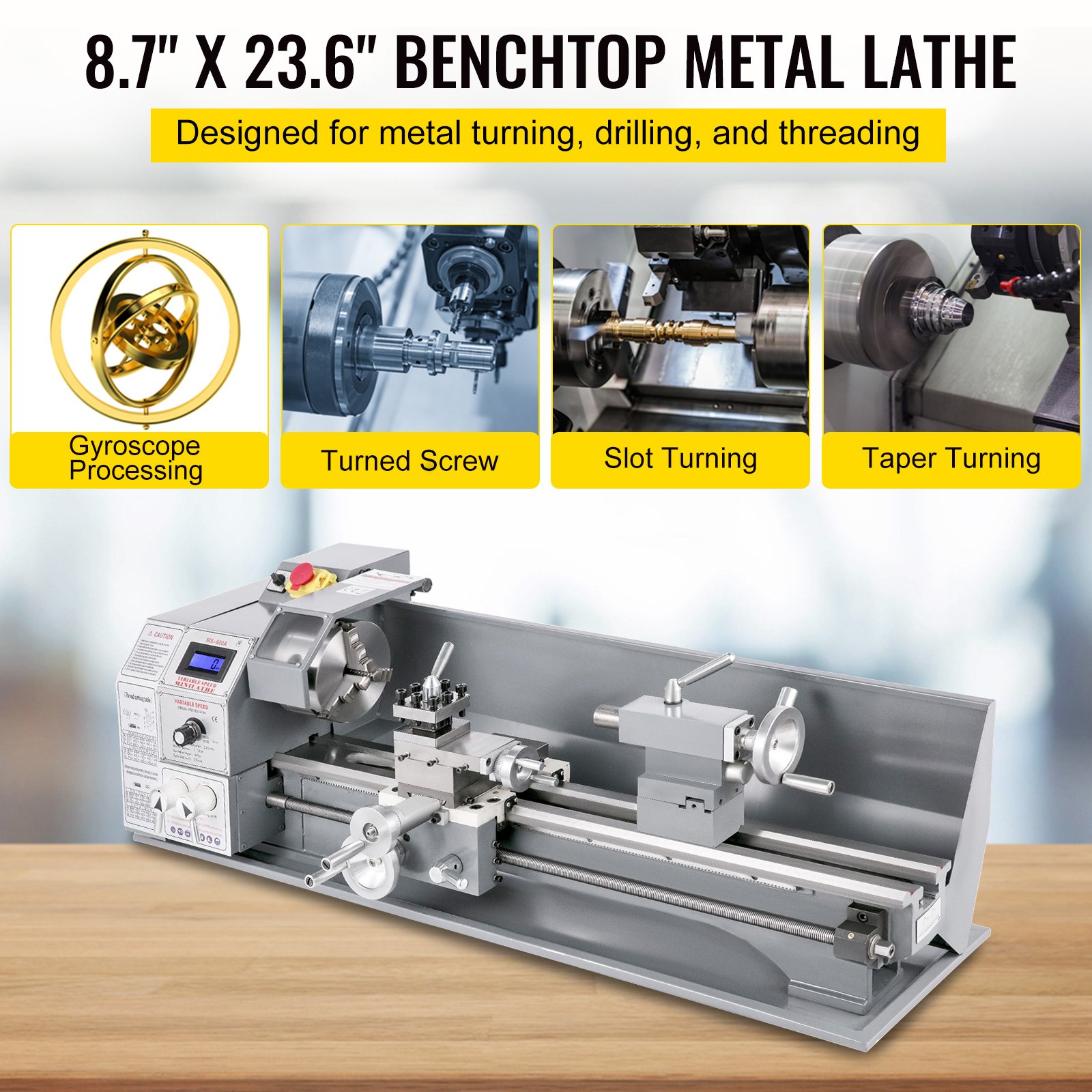

Wide applications
Suitable for machining round bar workpieces, such as taper turning, drilling, thread cutting, and other cutting operations. All accessories are carefully packaged.
- Power: 750 W
- Motor type: Brushless
- Voltage: 220 V 50 Hz
- Phase: Single-phase
- Swivel range above bed: 8.7 inches / 220 mm
- Tip spacing: 23.6 inches / 600 mm
- 3-jaw chuck diameter: 4.9 inches / 125 mm
- Spindle bore: 1.5 inches / 38 mm
- Variable speed (rpm): 50-3000±10%
- Spindle cone: MT#5
- Tailstock taper: MT#2
- Spindle accuracy: 0.01 mm
- Inch thread range: 8-44 TPI
- Longitudinal feed range: 0.02-0.1 inch / 0.5-3 mm
- Gear material: Metal
- Item weight: 183 lbs / 83 kg
- Dimensions: 41.5 x 13.3 x 13.5 inches / 105.5 x 34 x 34.5 cm

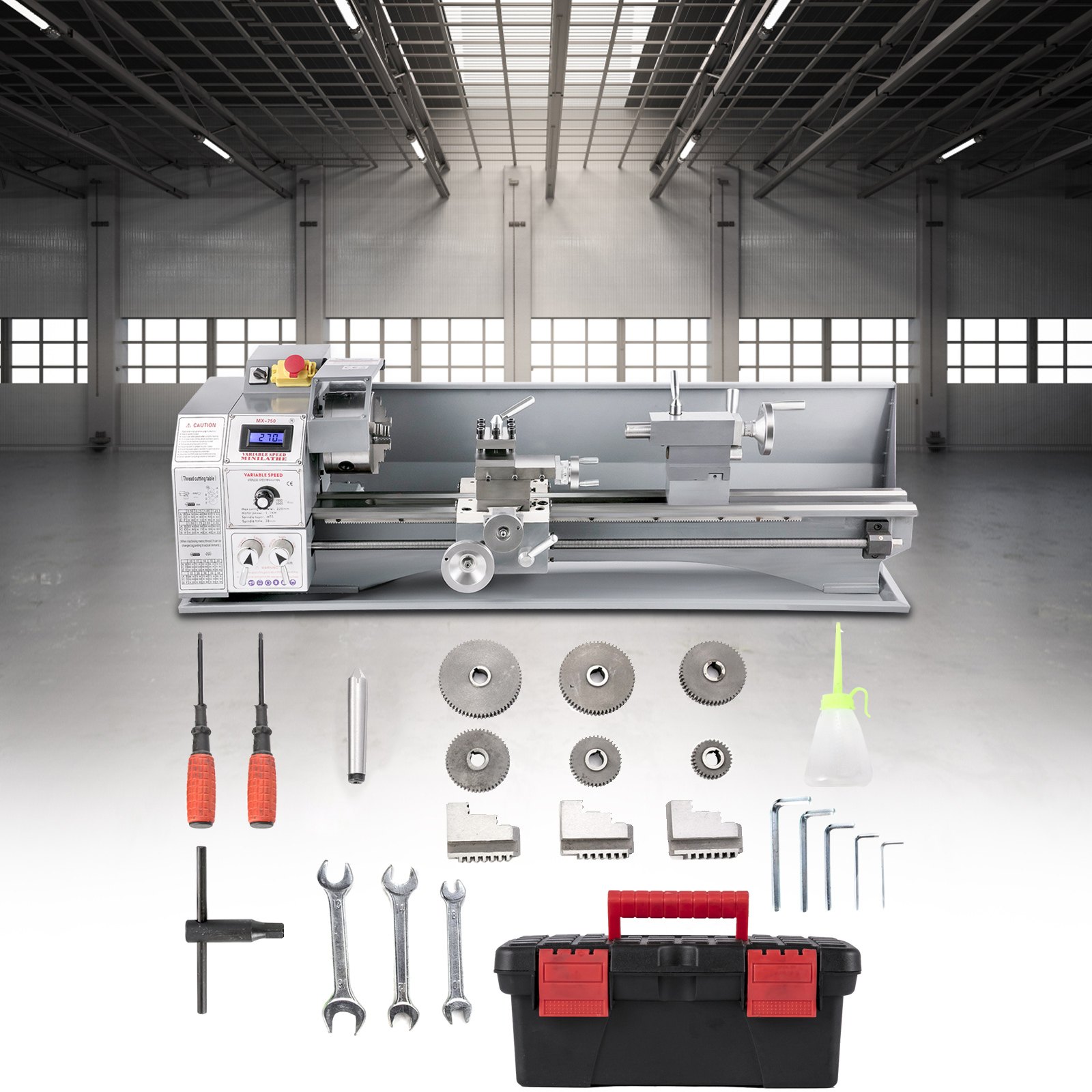

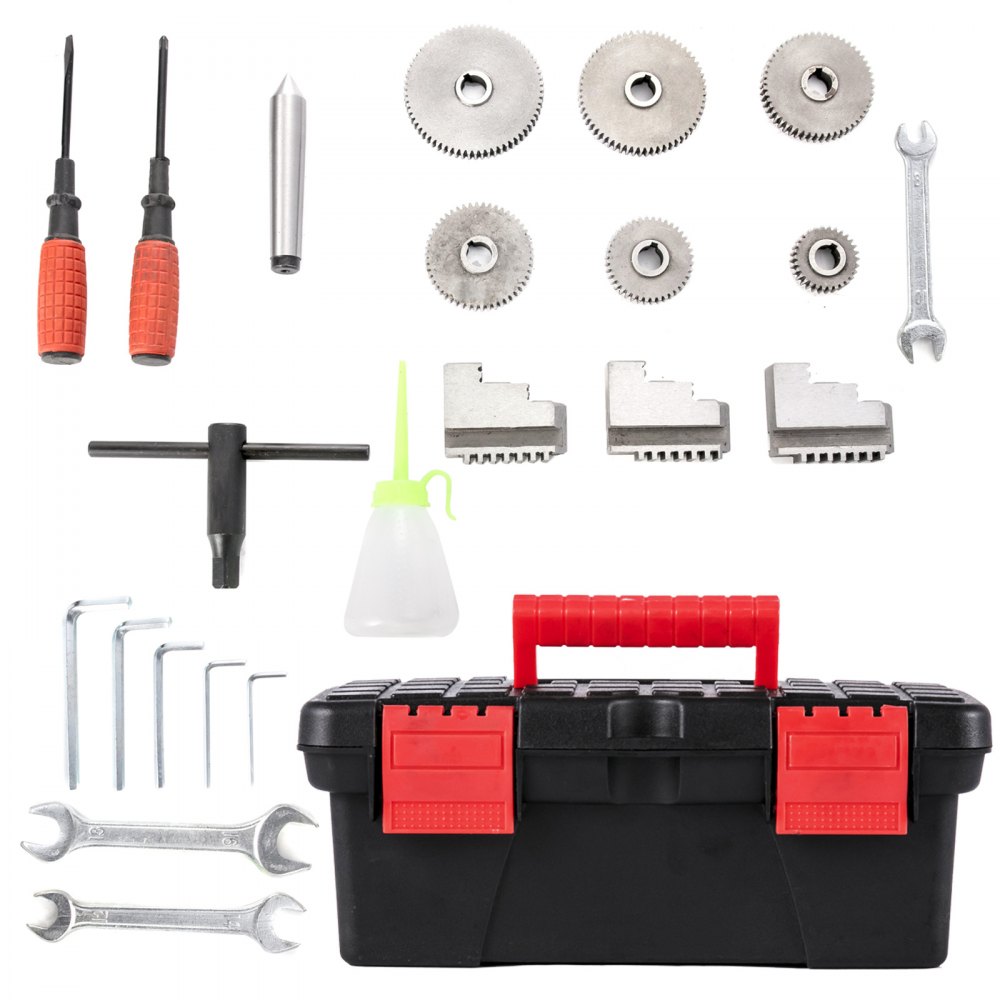

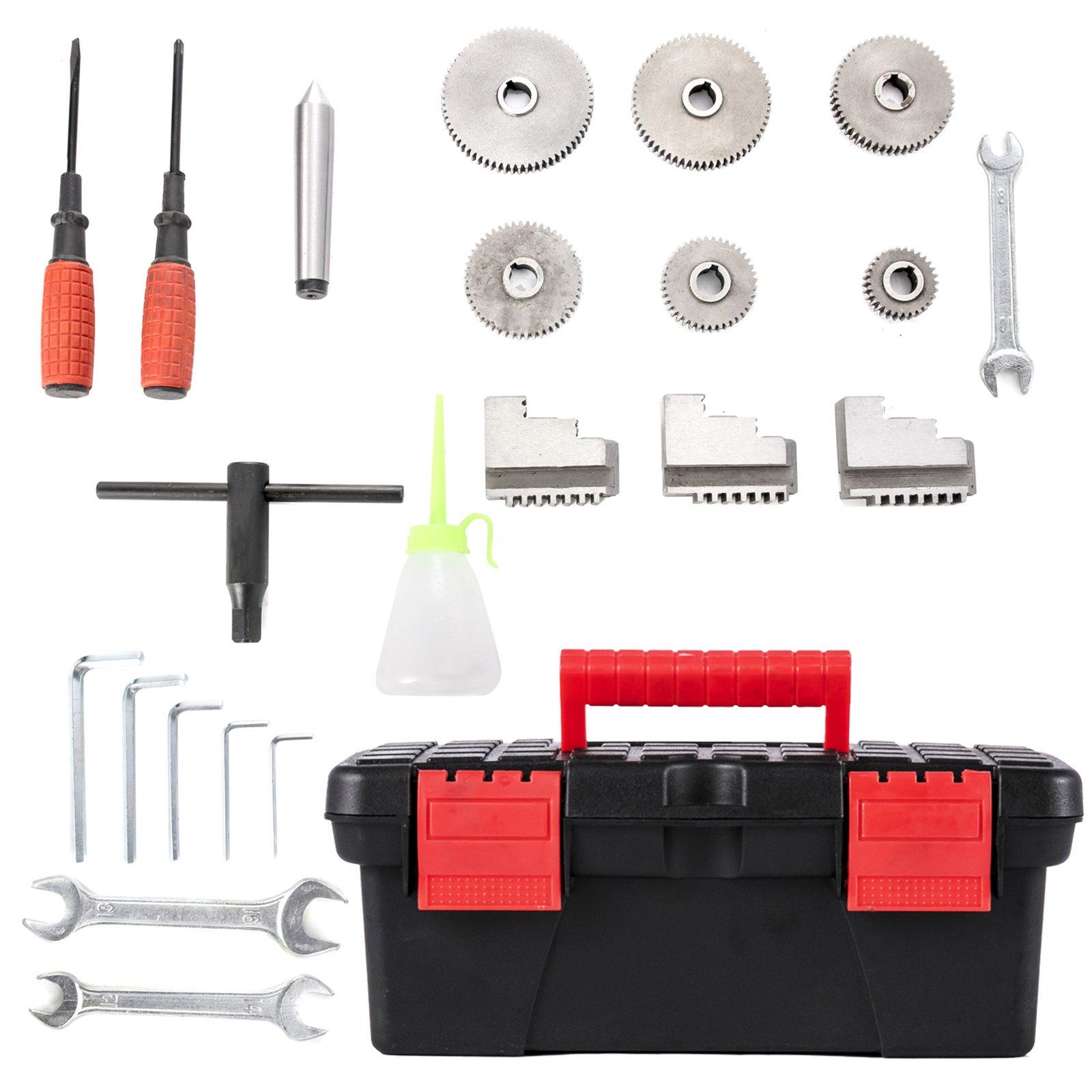

- 1 x Metal lathe
- 1 x tool tray
- 5 x Hex keys
- 1 x dead center MT2
- 1 x oil gun
- 3 x clamping jaw
- 5 x gear
- 1 x instruction manual
- 2 x screwdrivers
- 1 x accessory kit
- 1 x collet wrench
- 3 x wrenches
- 3 x jaw chuck
220 x 600 mm Mini Metal Lathe
The 220 x 600 mm precision mini lathe features a 750 W motor, a three-jaw chuck, an MT5 spindle taper, and an MT2 tailstock taper. It is designed for various types of metal turning and is easy to operate. The high-quality cast iron bed is manufactured using high-frequency quenching and precision grinding. The spindle speed is continuously variable from 500 to 3000 ±10% RPM. A steady rest and follower rest are available for large and/or heavy workpieces.
- Variable speed control
- 600 mm swivel range
- Compact tool holder
- Safety & Protection
- Adjustable tailstock
Heavy-duty metal lathe
The milling machine is made of robust and wear-resistant cast iron, a durable material characterized by a long service life.
Adjustable speed
Brushless motor, power: 750 W, variable speed (rpm): 50-3000±10%. Spindle taper: MT5. Simply change the speed by turning the switch. The operating indicator informs you about the ongoing work.
Easy to use
The mini lathe features a three-jaw chuck and a 38 mm (1.5 in) spindle bore. It is frequently used when precise machining is required. The lathe's 4-way turret is easy to adjust, and changing cutting tools is convenient.
MT 2 tailstock taper
The lathe is equipped with a tailstock that supports the longitudinal axis of rotation of the workpiece being machined. This makes your work safer and more stable.
Compact cross slide
Constructed with wear-resistant, freely moving blades and a feed rod. 8-44 TPI adjustable leadscrew. V-slides with a distance between centers of 23.6 inches / 600 mm. A lamp enables precise work in dark environments.
Wide applications
Suitable for machining round bar workpieces, such as taper turning, drilling, thread cutting, and other cutting operations. All accessories are carefully packaged.
- 1 x Metal lathe
- 1 x tool tray
- 5 x Hex keys
- 1 x dead center MT2
- 1 x oil gun
- 3 x clamping jaw
- 5 x gear
- 1 x instruction manual
- 2 x screwdrivers
- 1 x accessory kit
- 1 x collet wrench
- 3 x wrenches
- 3 x jaw chuck
- Power: 750 W
- Motor type: Brushless
- Voltage: 220 V 50 Hz
- Phase: Single-phase
- Swivel range above bed: 8.7 inches / 220 mm
- Tip spacing: 23.6 inches / 600 mm
- 3-jaw chuck diameter: 4.9 inches / 125 mm
- Spindle bore: 1.5 inches / 38 mm
- Variable speed (rpm): 50-3000±10%
- Spindle cone: MT#5
- Tailstock taper: MT#2
- Spindle accuracy: 0.01 mm
- Inch thread range: 8-44 TPI
- Longitudinal feed range: 0.02-0.1 inch / 0.5-3 mm
- Gear material: Metal
- Item weight: 183 lbs / 83 kg
- Dimensions: 41.5 x 13.3 x 13.5 inches / 105.5 x 34 x 34.5 cm
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (8)
Il tornio 220x600 750W è come in foto con le due leve in basso? Se SI, servono anche per invertire il moto della vite degli avanzamenti?
Il prodotto ha una sola asta a vite.
By vevor
Helpful
(
11
)
Il tornio 220x600 750W ha la possibilità di invertire il senso di giro della madre vite degli avanzamenti? ha due manopole a sinistra in basso come si vede nella foto ? a cosa servono queste manopole?
Si, la macchina è dotata di una chiocciola di alimentazione che inverte il senso di rotazione.
By vevor
Helpful
(
7
)
L'apertura del mandrino di questo prodotto è di 38 mm.
By vevor
Helpful
(
0
)
Esegue filettatura metrica?
Sì, può produrre filettature metriche. M0.5, M0.75, M1.0, M1.25, M1.5, M1.75, M2.0, M2.5.
By vevor
Helpful
(
4
)
Se in foto ci sono 6 ingranaggi perché nella specifica del materiale fornito c’è scritto 5 ingranaggi?
Il pacchetto accessori contiene 6 marce.
By vevor
Helpful
(
0
)
Gli utensili sono da acquistare a parte giusto?
Si prega di vedere il contenuto della confezione come di seguito:
1 x tornio per metalli
1 x supporto per utensili
5 x chiave esagonale
1 x punto morto MT2
1 x pistola per olio
3 x ganascia
5 x ingranaggio
1 x manuale di istruzioni
2 x cacciavite
1 x kit di accessori
1 x chiave per mandrino
3 x chiave
3 x ganascia per mandrino
By vevor
Helpful
(
0
)
