Features & Details
- Technical parameters: Specification: φ3.1 x 11.8 inches (diameter: 8 cm x length: 29.9 cm); Power: 2.2 kW; Voltage: 220 V; Current: 8 A; Collet size: ER20; Bearings: 4; Frequency: 200–400 Hz; Speed: 12,000–24,000 rpm; Runout: less than 0.002 mm. Primarily used for engraving machines or with frequency converters.

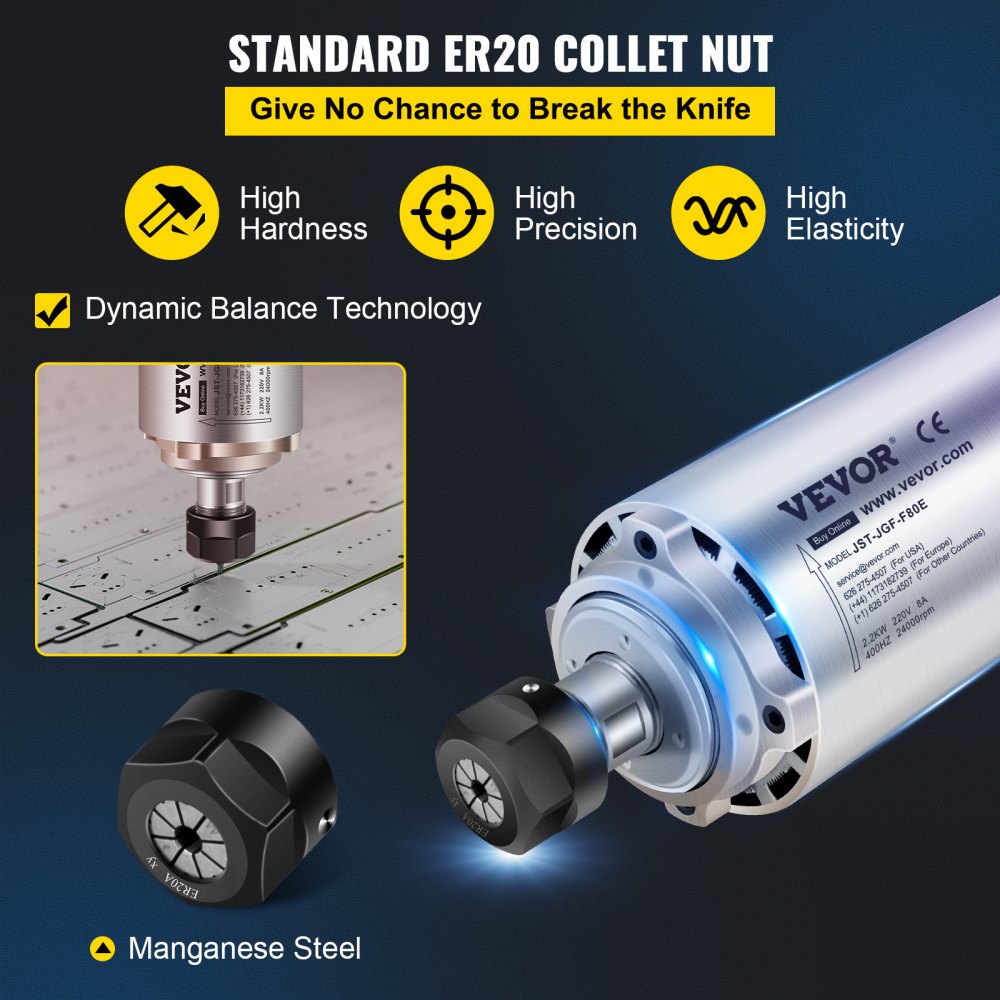

- ER20 Standard Collet: The collet of the CNC milling spindle is hardened with manganese steel and has a runout of less than 0.002 mm, ensuring high precision and preventing tool breakage, thus increasing the stability of the machining process. Dynamic balancing technology effectively reduces noise during operation.
- High-performance bearings: The air spindle motor uses imported bearings with high accuracy, precision, and durability. Hardness and corrosion protection have been significantly improved.
- Low noise and heat dissipation: Dynamic balance technology effectively reduces noise during use. The scientifically developed air cooling system provides superior heat dissipation for smooth operation.
- Wide application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It utilizes air circulation for heat cooling and has good heat dissipation properties.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 25 reviews
Reviews 4.8
All reviews are from verified purchases
See all 25 reviews
About this item

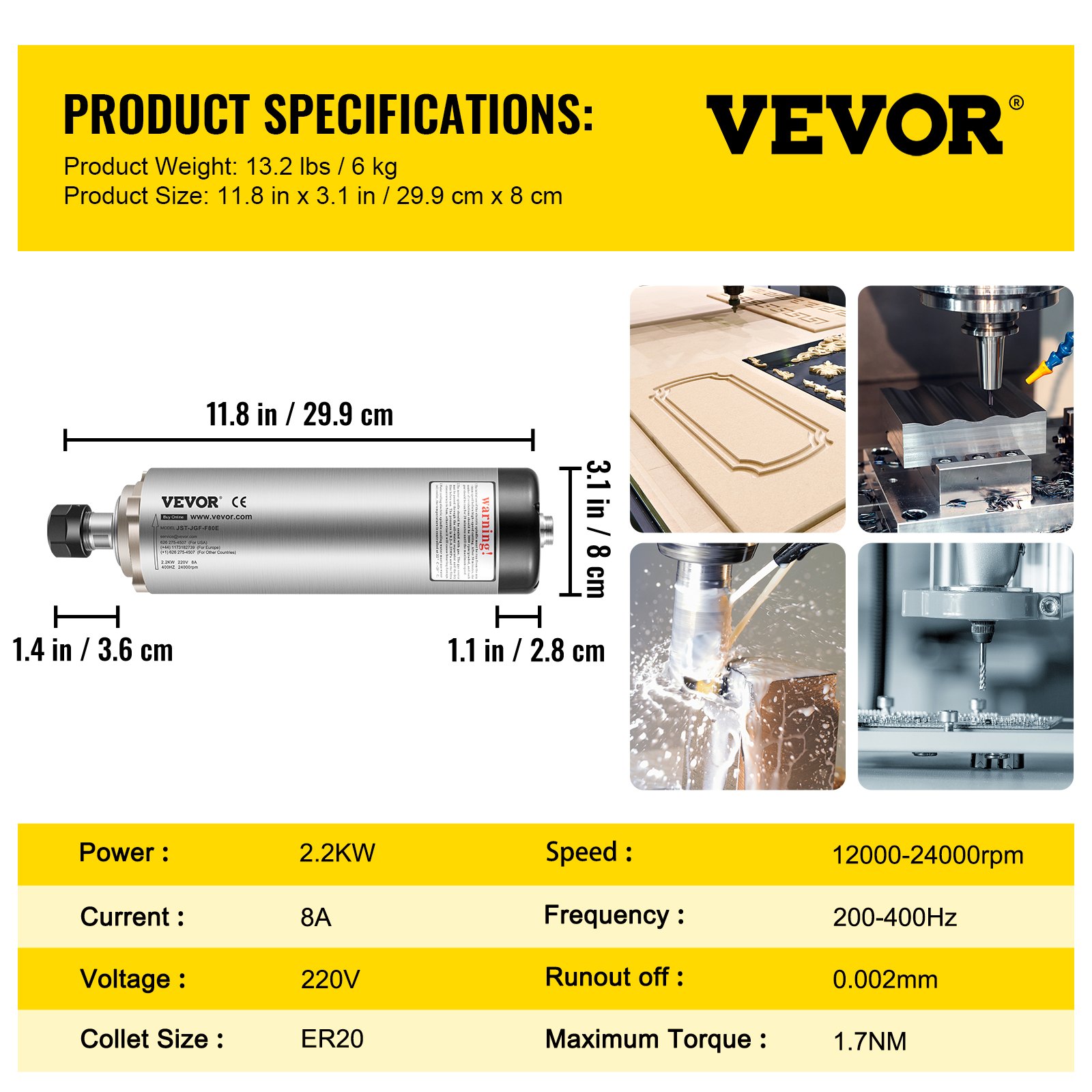

Product specification
- Power
- 2.2 kW
- Voltage
- 220V
- Frequency
- 200-400 Hz
- Speed
- 12000-24000 rpm
- Runout deviation
- Less than 0.002 mm
- Maximum torque
- 1.7 Nm
- Product dimensions
- 3.1 x 11.8 inches / 8 x 29.9 cm
- Weight
- 13.2 lbs / 6 kg
Description

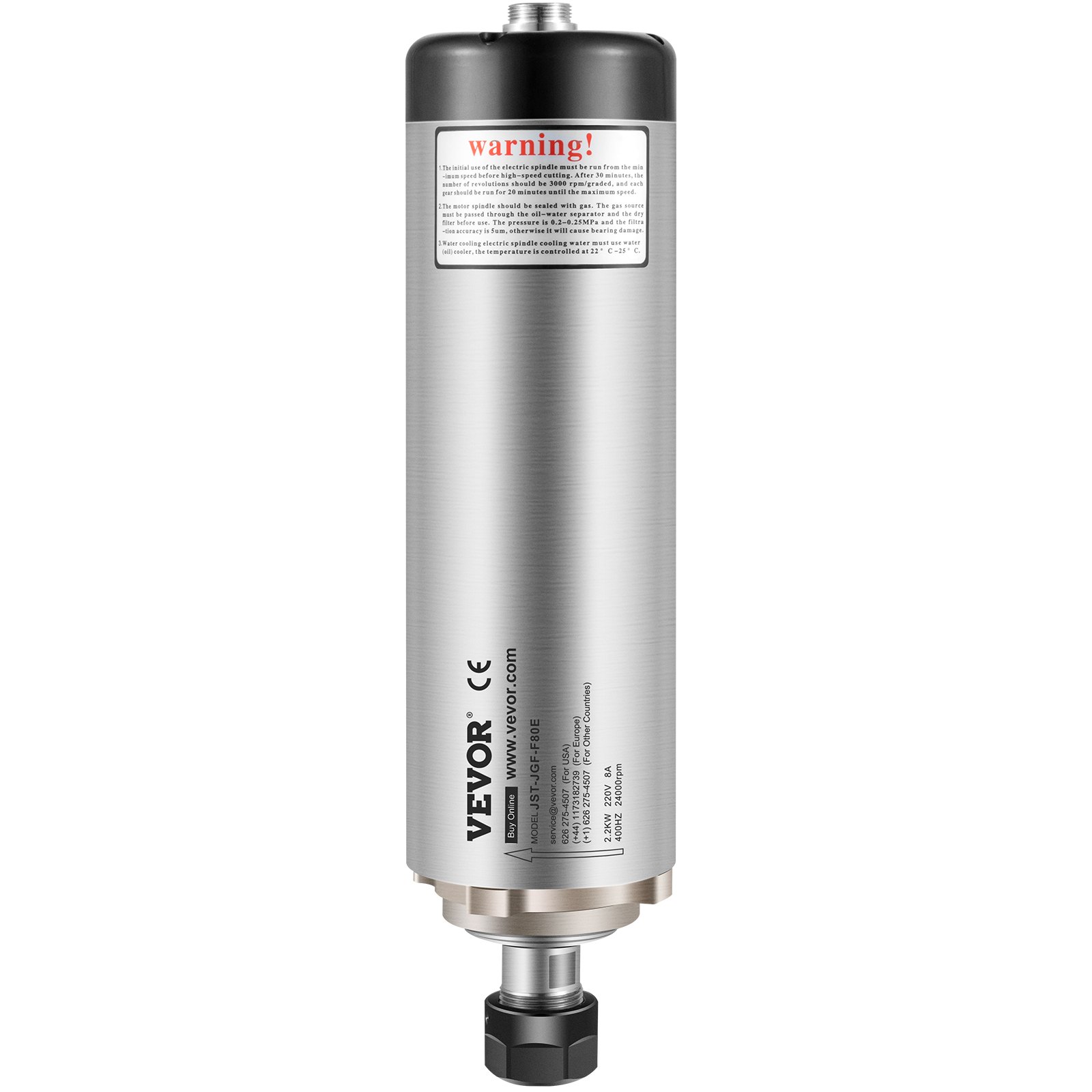

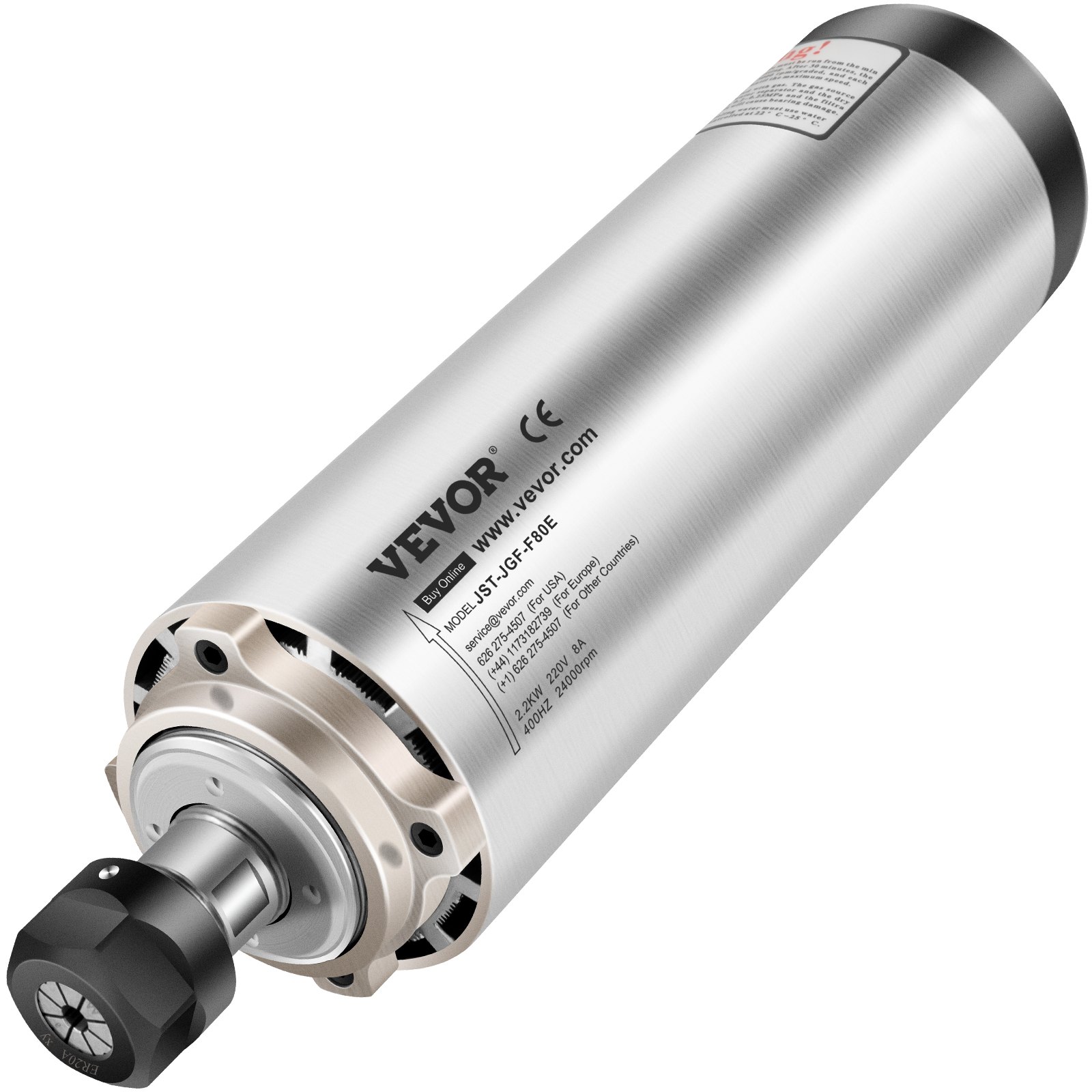

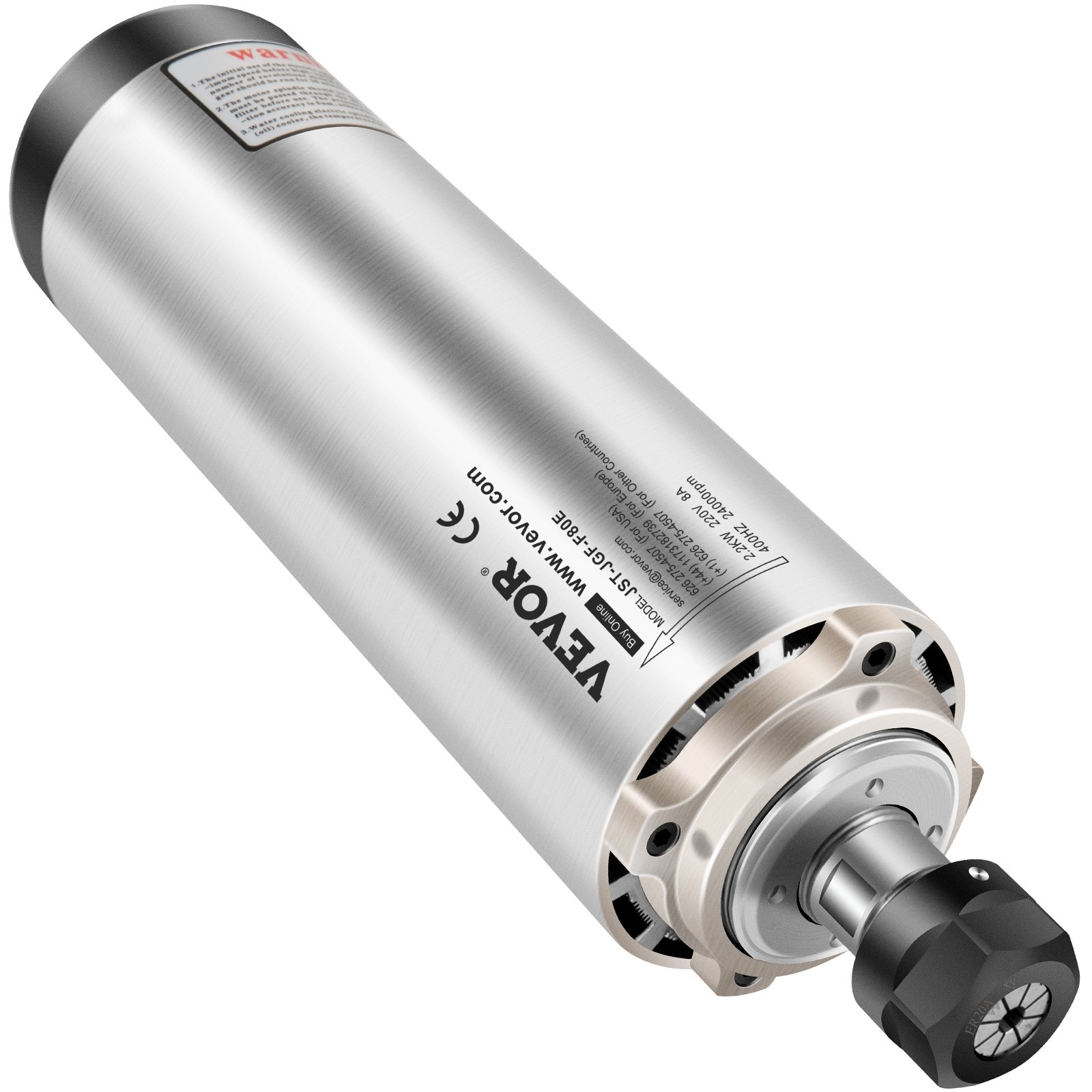

Air-cooled spindle motor, 2.2 kW
ER20 collet & four bearings & 12000-24000 rpm
These spindle motors use imported bearings and high-quality stainless steel materials, and their lifespan is three times longer than that of ordinary spindle motors. Widely used in engraving machines for wood, stone, metal, and other materials.
- Technical parameters
- ER20 Standard Collet
- High-performance bearing
- Low noise level and heat dissipation

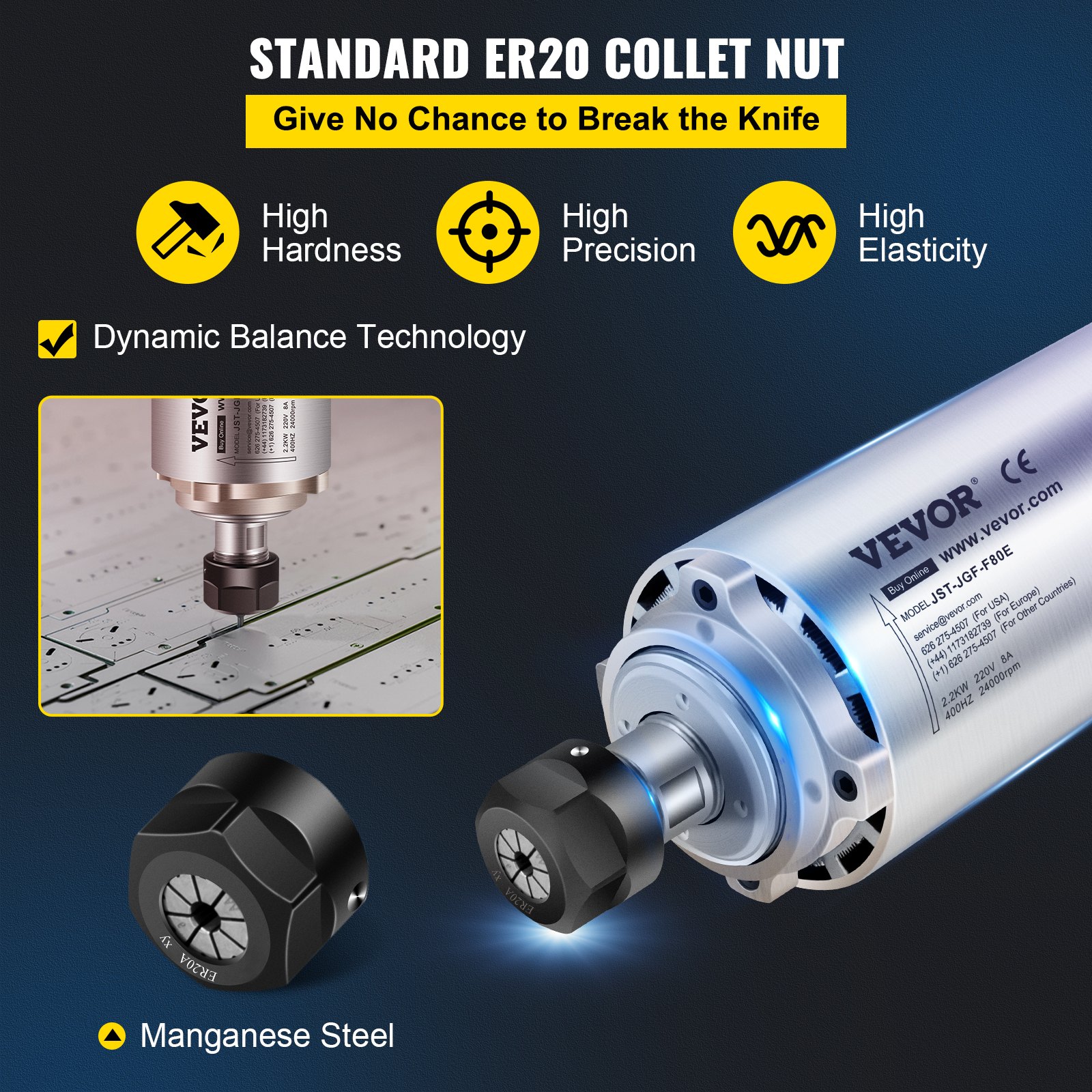

Dynamic balance design
Unlike other milling spindle motors, we use an innovative and advanced dynamic balancing technology. The advantages of the ER20 standard collet include excellent rigidity, high strength, a unique drainage design, and high precision.

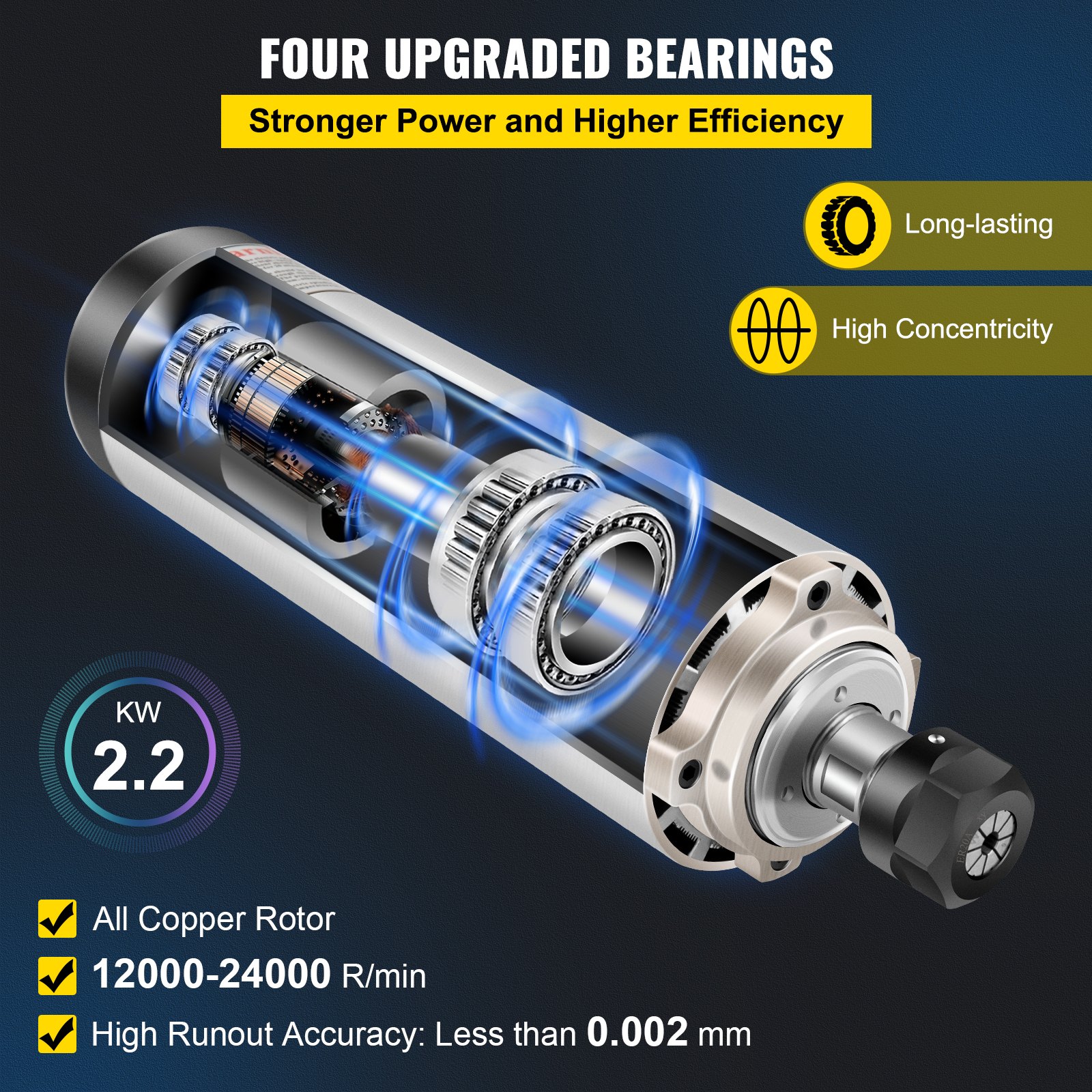

Four high-quality bearings
The improved bearing offers two key advantages: superior durability and corrosion protection. High speed (12,000–24,000 rpm) and powerful performance ensure greater efficiency than before.

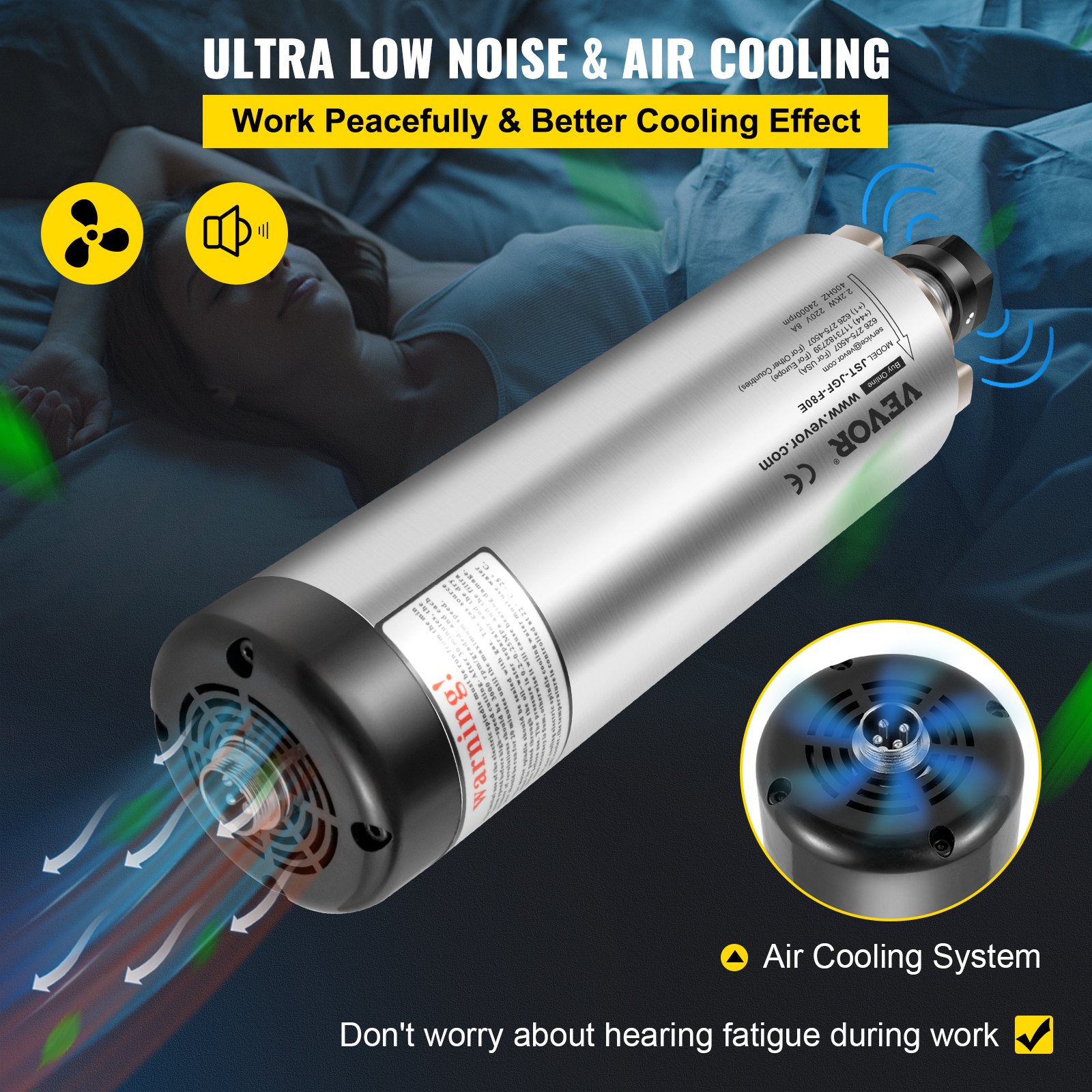

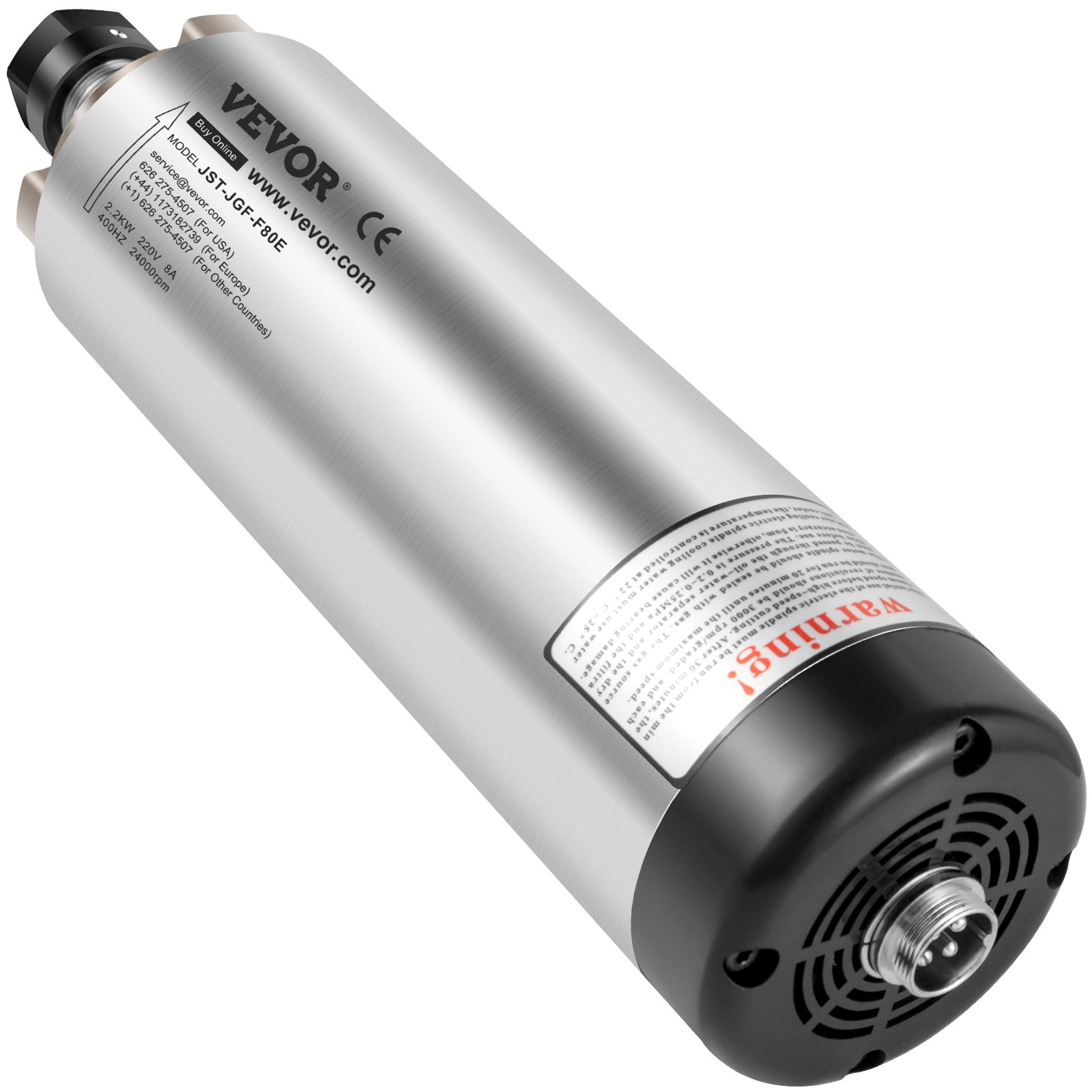

Noise reduction and air cooling
Our CNC milling spindle motor operates quietly and prevents ear fatigue. It utilizes air circulation to cool the heat generated by the spindle at high speed and has excellent heat dissipation.

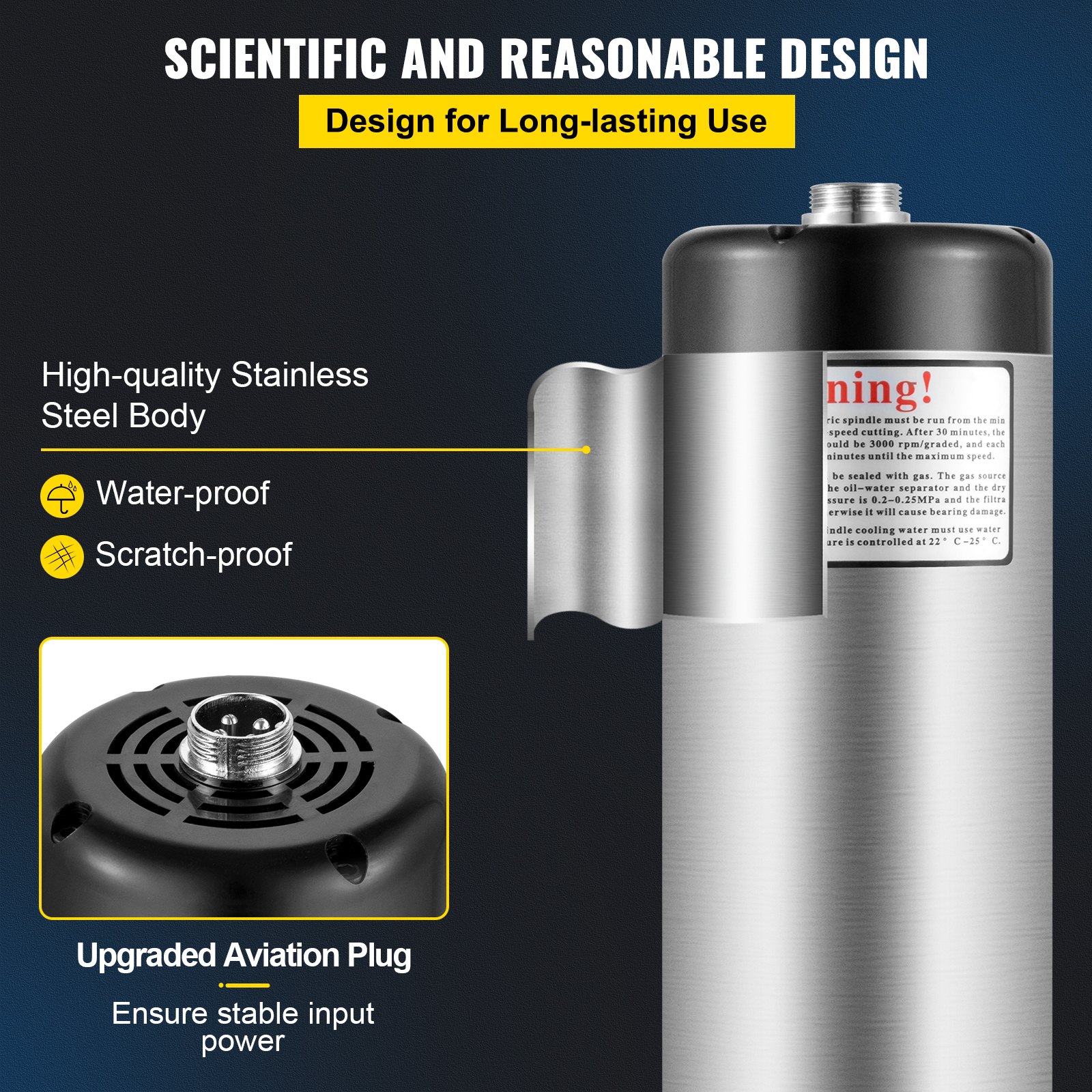

High-quality material
The stainless steel housing ensures higher performance and a longer lifespan; unlike ordinary aluminum-sheathed wires, the oxygen-free copper coils guarantee high-quality workmanship and engraving performance.
Refined internal details
The CNC milling spindle features an integrated, improved aviation connector that easily allows current flow and achieves the intended function of the circuit, effectively improving stable and smooth operation.

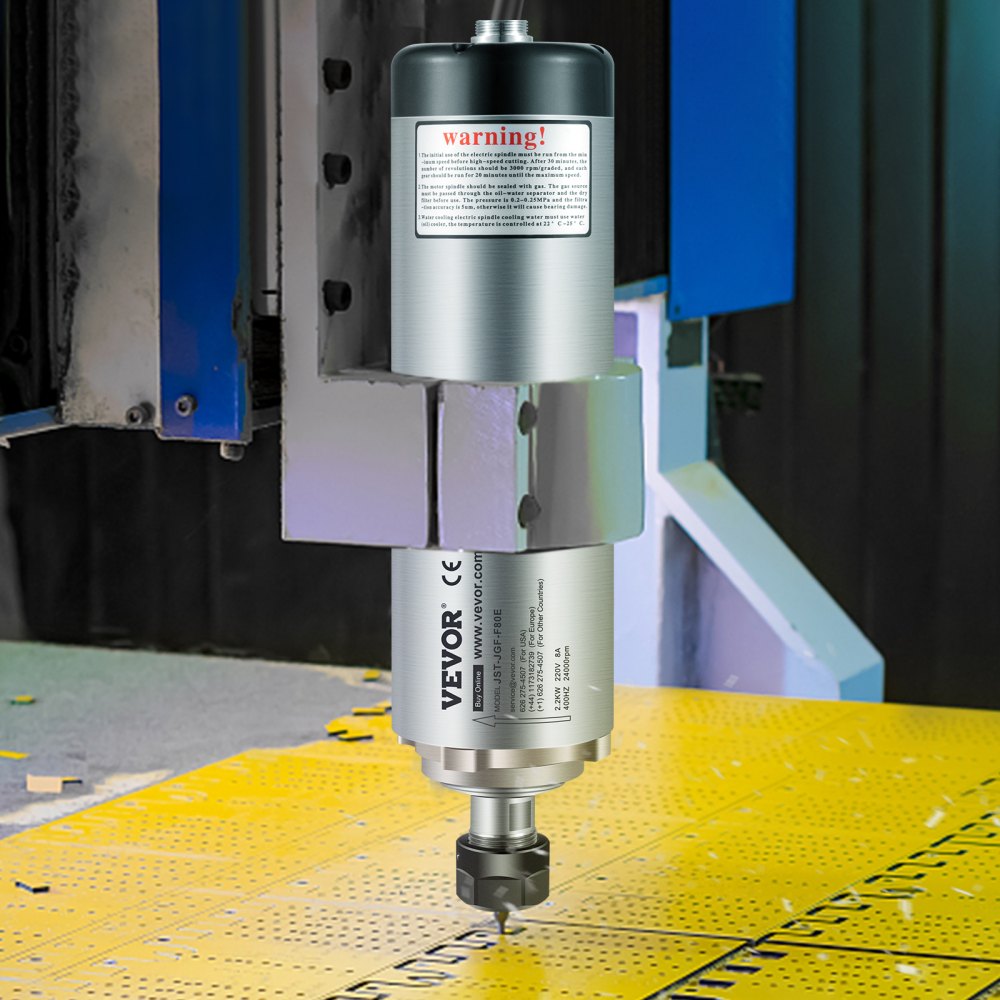

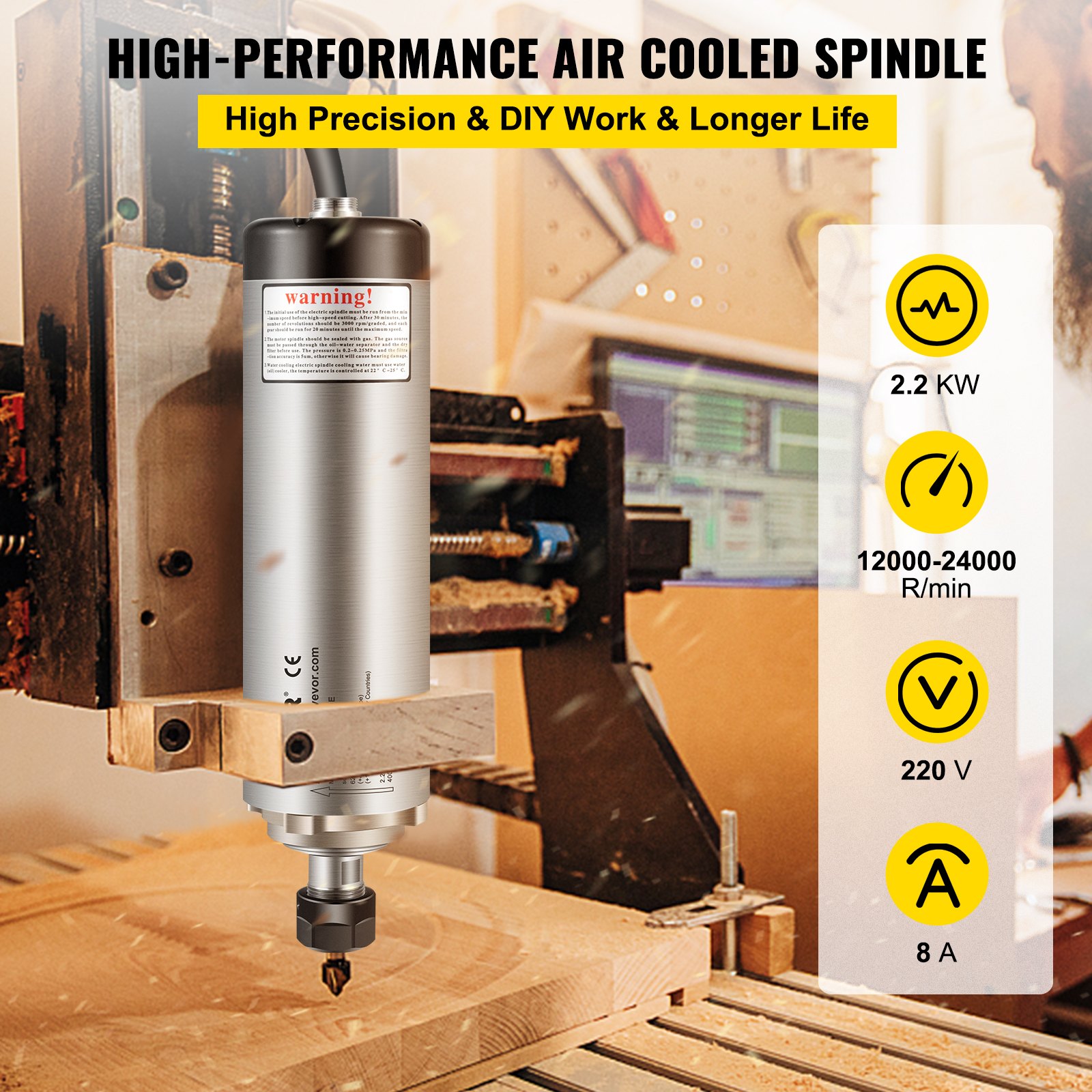

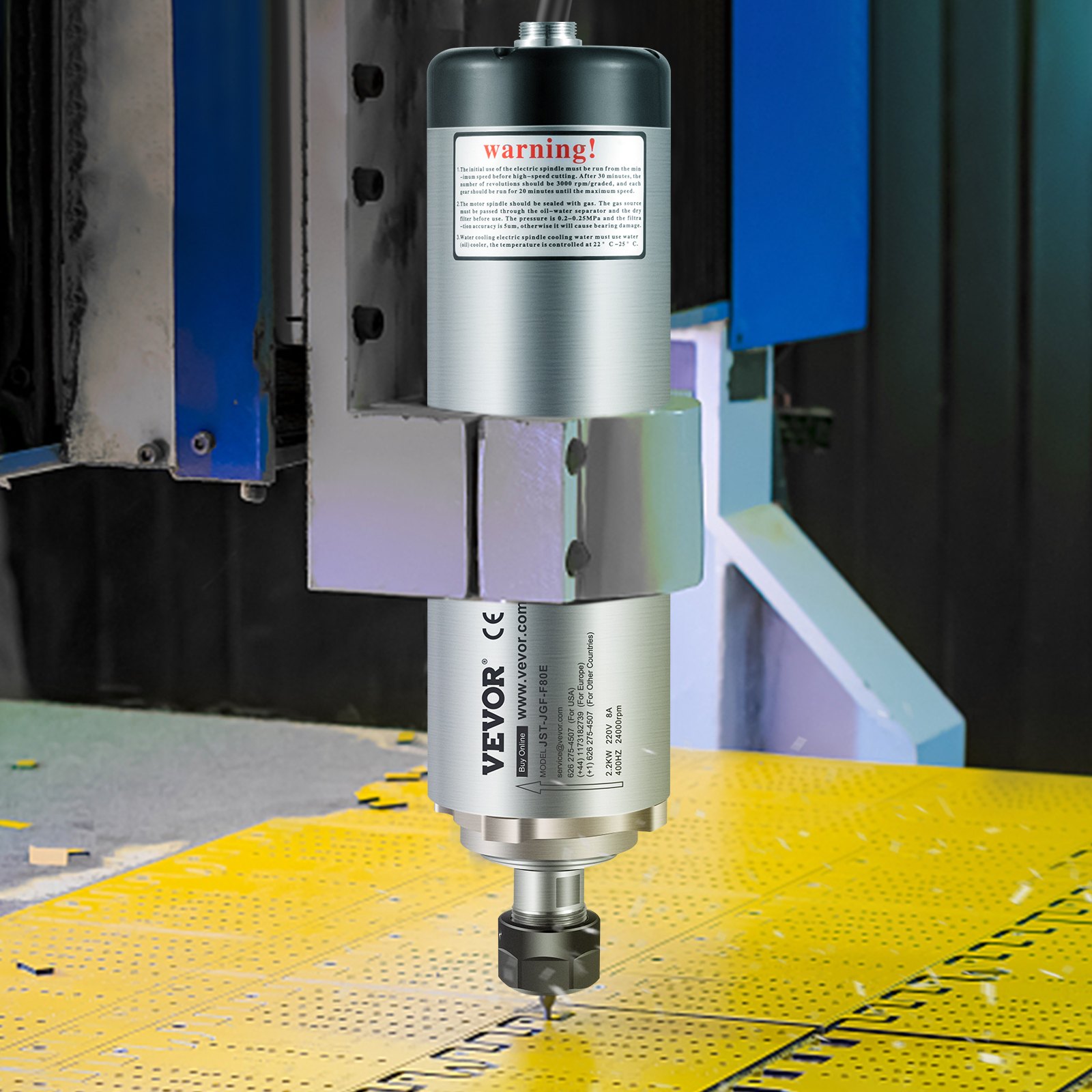

Wide application
Air-cooled motors for commonly used materials such as wood, stone, molds and metal, etc. Suitable for mechanical engineering, sheet metal fabrication, railings, factories, shipyards, DIY projects, construction and other fields.
- Power: 2.2 kW
- Voltage: 220V
- Frequency: 200-400 Hz
- Speed: 12000-24000 rpm
- Runout deviation: Less than 0.002 mm
- Maximum torque: 1.7 Nm
- Product dimensions: 3.1 x 11.8 inches / 8 x 29.9 cm
- Weight: 13.2 lbs / 6 kg
- 1 x air-cooled spindle motor
Air-cooled spindle motor, 2.2 kW
ER20 collet & four bearings & 12000-24000 rpm
These spindle motors use imported bearings and high-quality stainless steel materials, and their lifespan is three times longer than that of ordinary spindle motors. Widely used in engraving machines for wood, stone, metal, and other materials.
- Technical parameters
- ER20 Standard Collet
- High-performance bearing
- Low noise level and heat dissipation
Dynamic balance design
Unlike other milling spindle motors, we use an innovative and advanced dynamic balancing technology. The advantages of the ER20 standard collet include excellent rigidity, high strength, a unique drainage design, and high precision.
Four high-quality bearings
The improved bearing offers two key advantages: superior durability and corrosion protection. High speed (12,000–24,000 rpm) and powerful performance ensure greater efficiency than before.
Noise reduction and air cooling
Our CNC milling spindle motor operates quietly and prevents ear fatigue. It utilizes air circulation to cool the heat generated by the spindle at high speed and has excellent heat dissipation.
High-quality material
The stainless steel housing ensures higher performance and a longer lifespan; unlike ordinary aluminum-sheathed wires, the oxygen-free copper coils guarantee high-quality workmanship and engraving performance.
Refined internal details
The CNC milling spindle features an integrated, improved aviation connector that easily allows current flow and achieves the intended function of the circuit, effectively improving stable and smooth operation.
Wide application
Air-cooled motors for commonly used materials such as wood, stone, molds and metal, etc. Suitable for mechanical engineering, sheet metal fabrication, railings, factories, shipyards, DIY projects, construction and other fields.

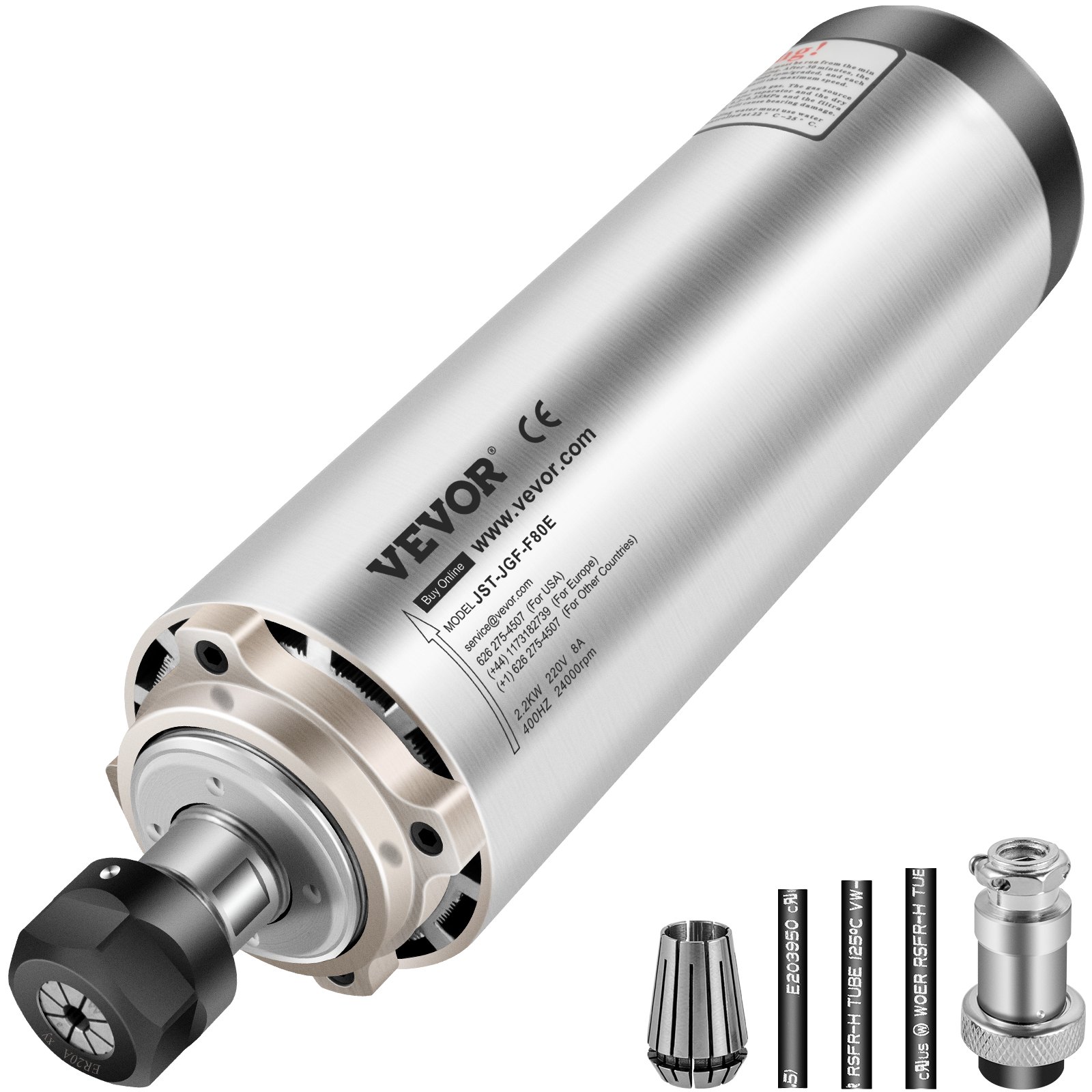

- 1 x air-cooled spindle motor
- Power: 2.2 kW
- Voltage: 220V
- Frequency: 200-400 Hz
- Speed: 12000-24000 rpm
- Runout deviation: Less than 0.002 mm
- Maximum torque: 1.7 Nm
- Product dimensions: 3.1 x 11.8 inches / 8 x 29.9 cm
- Weight: 13.2 lbs / 6 kg
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (7)
Le staffe di fissaggio sono comprese con i motori tondi?
Non viene fornito con una staffa di montaggio, è necessario acquistarlo da solo.
By vevor
Helpful
(
0
)
Vedete un inverter adatto a questi motori?
Ciao, questo sku include un inverter.
By vevor
Helpful
(
0
)
Per questo mandrino quale convertitore di frequenza bisogna abbinare tenendo presente che deve essere utilizzato con tensione 220volt?
Si consiglia di utilizzare un convertitore di frequenza da 2,2 kW, 220 V.
By vevor
Helpful
(
0
)
L'inverter da quanti kW deve essere
L'inverter dovrebbe avere 2,2kw.
By vevor
Helpful
(
0
)
Che tipo di motore è? cerco un mandrino con motore a magneti permanenti
È un motore asincrono trifase.
By vevor
Helpful
(
0
)
