Features & Details

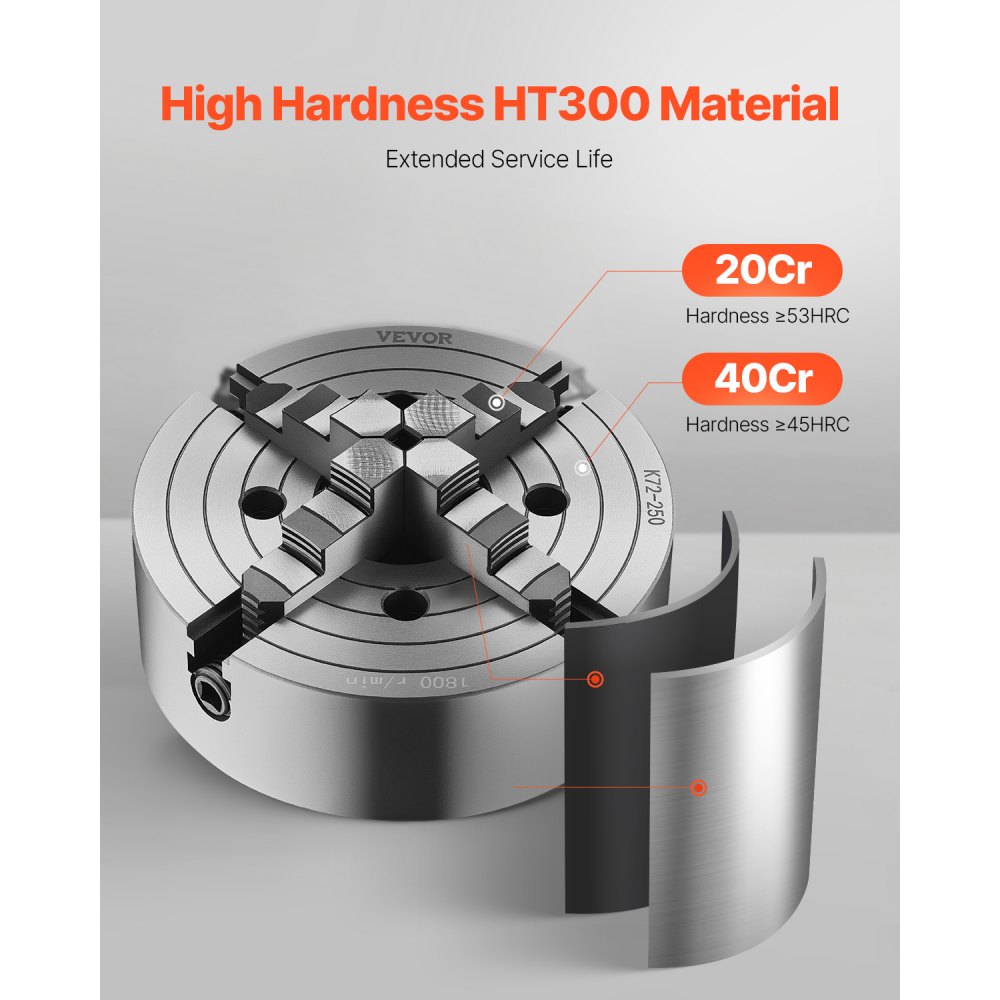

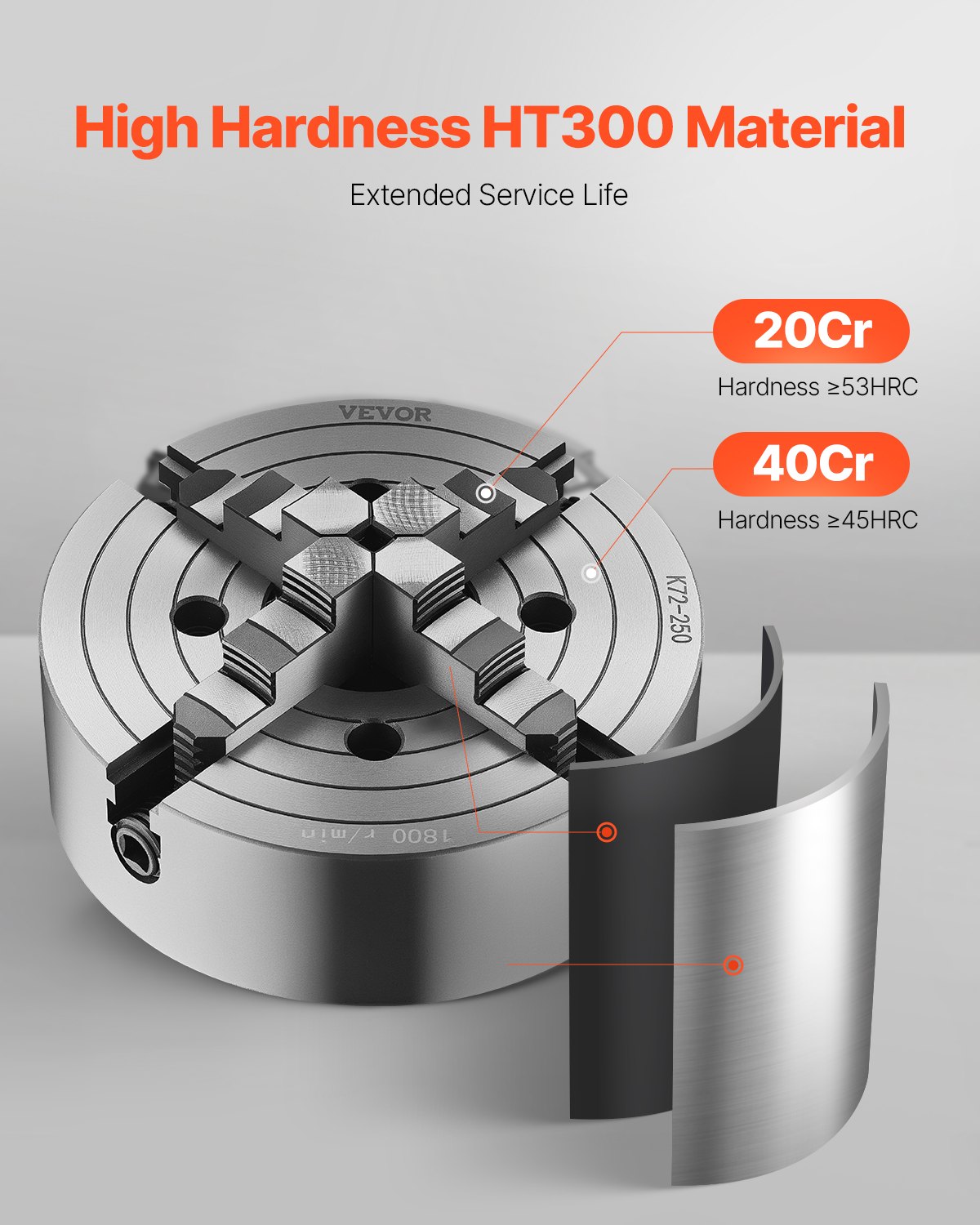

- Exceptional hardness: This chuck, made of high-quality HT300 cast iron, features jaws with a hardness of ≥53 HRC and a spiral plate hardness of ≥45 HRC. Quenching for enhanced durability ensures excellent hardness and corrosion resistance, guaranteeing a long service life.

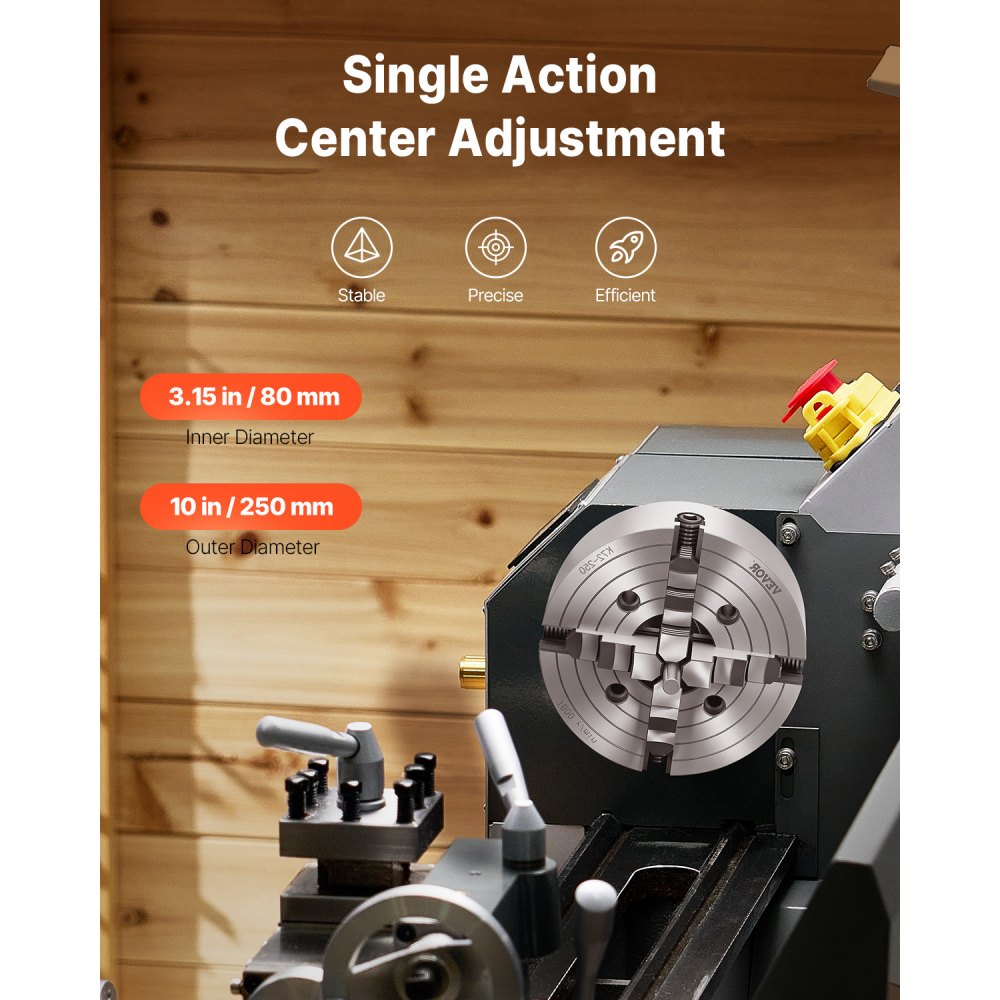

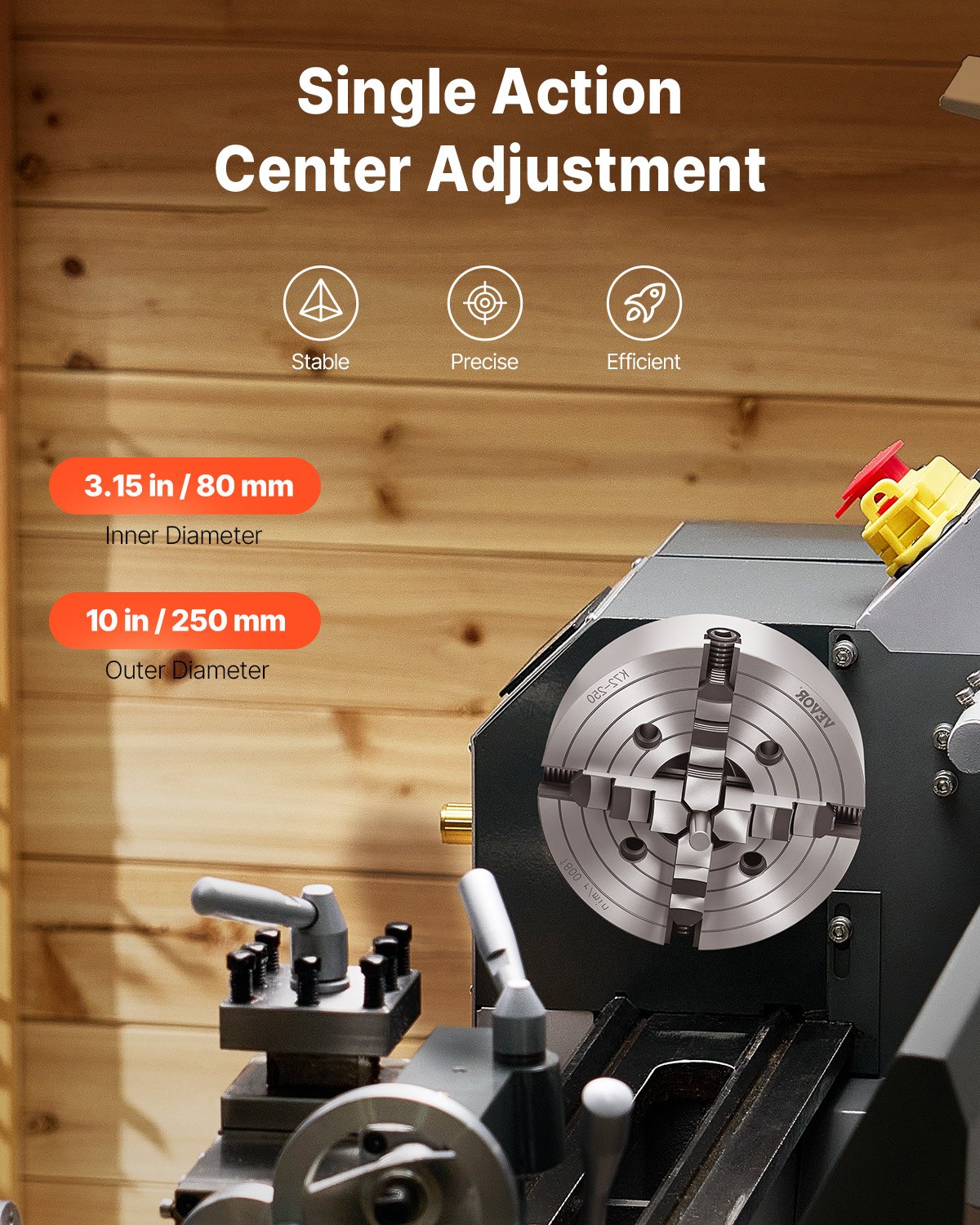

- Precision machining: Short column connection for high accuracy, and wear-prone parts are specially hardened for high durability. With a one-handed adjustment center, this chuck easily adapts to different shapes and offers strong clamping force.

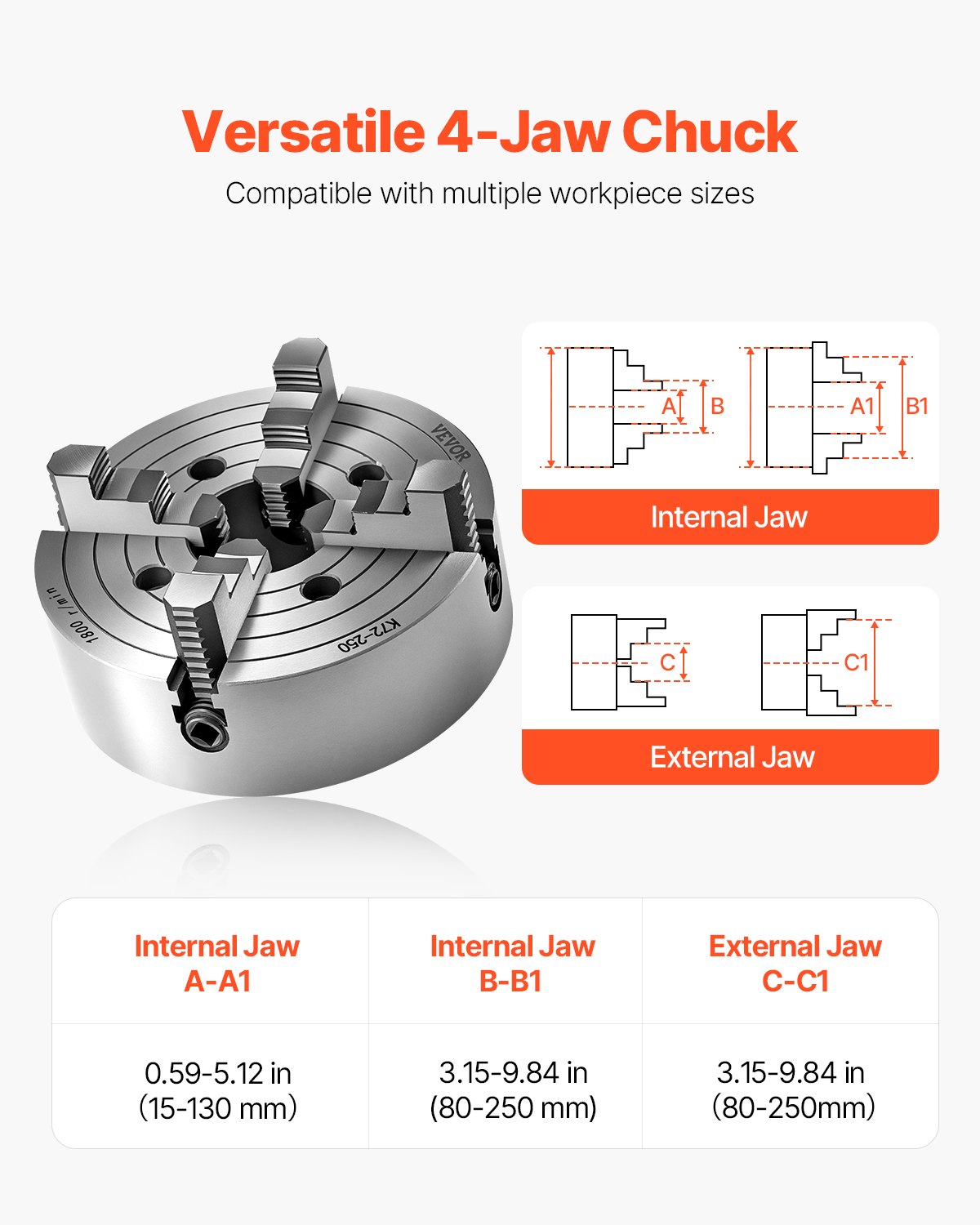

- 10-inch (250 mm) 4-jaw chuck: With an inner diameter of 3.15 inches (80 mm) and an outer diameter of 10 inches (250 mm), this chuck clamps workpieces from 0.6 to 9.84 inches (15 to 250 mm) and is therefore ideal for a wide variety of workpiece sizes.

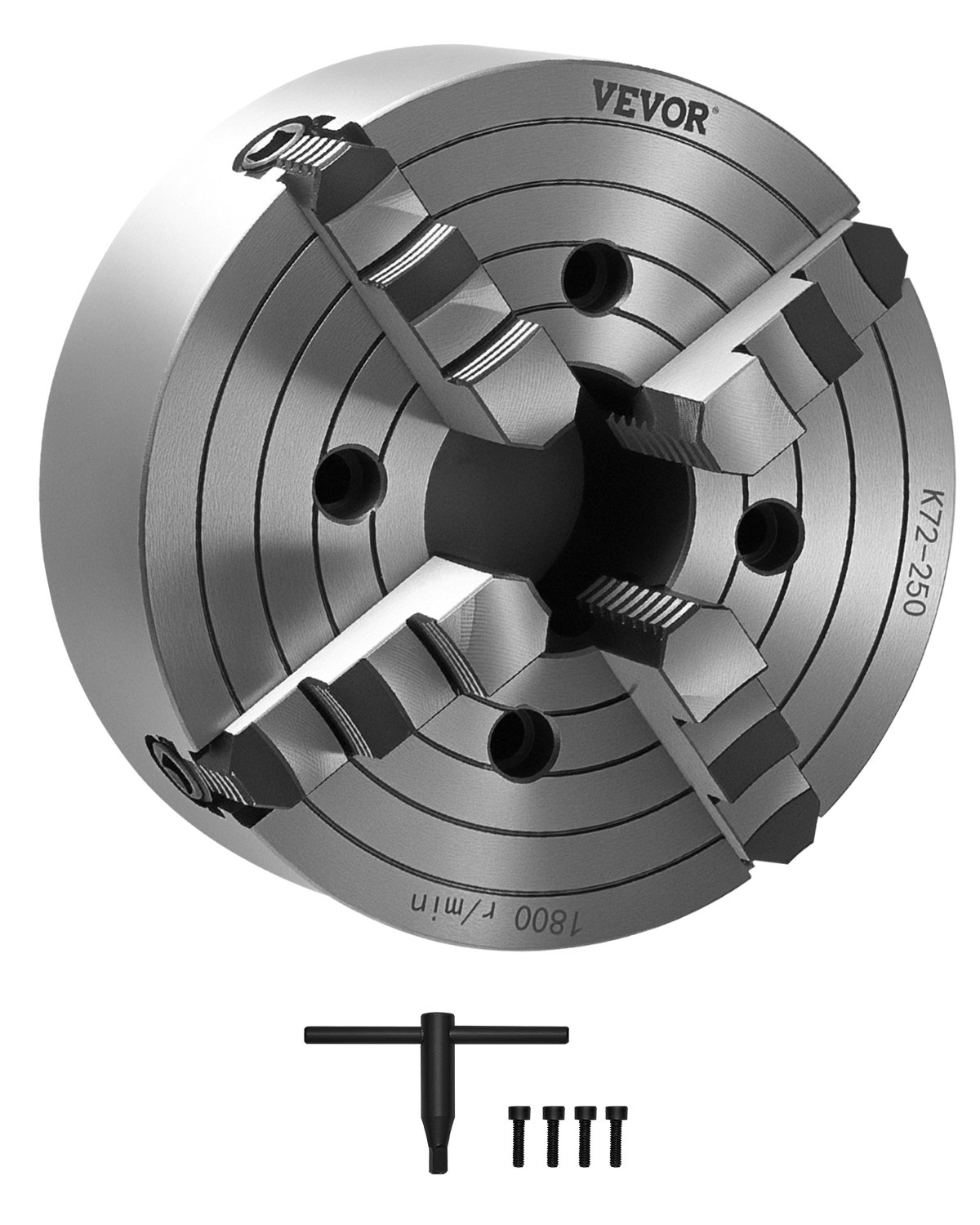

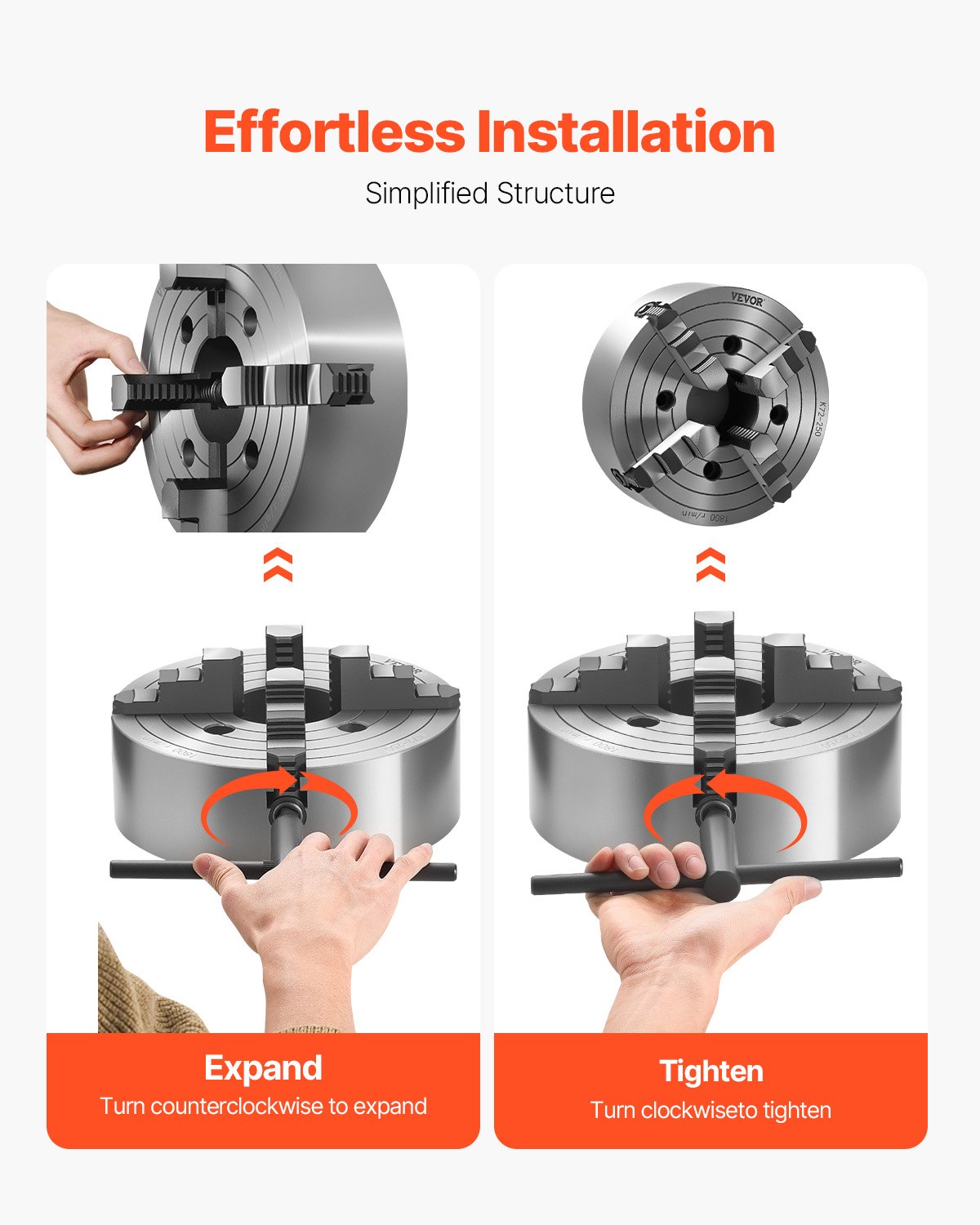

- Effortless operation: This chuck impresses with its simple, compact design, combining functionality and reliability. Thanks to the T-shaped tool, mounting our chuck is a breeze. Simply follow the instructions for a smooth setup.

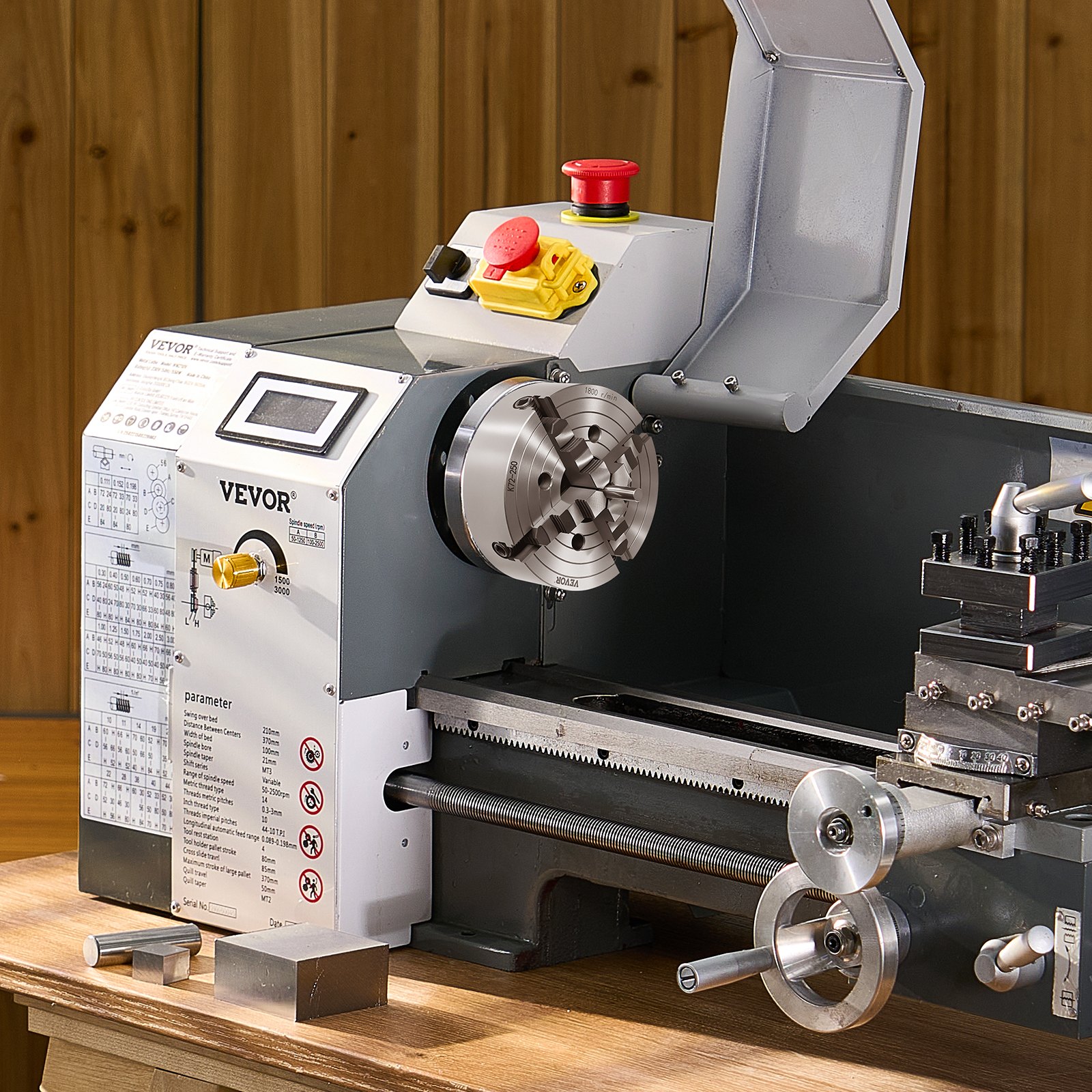

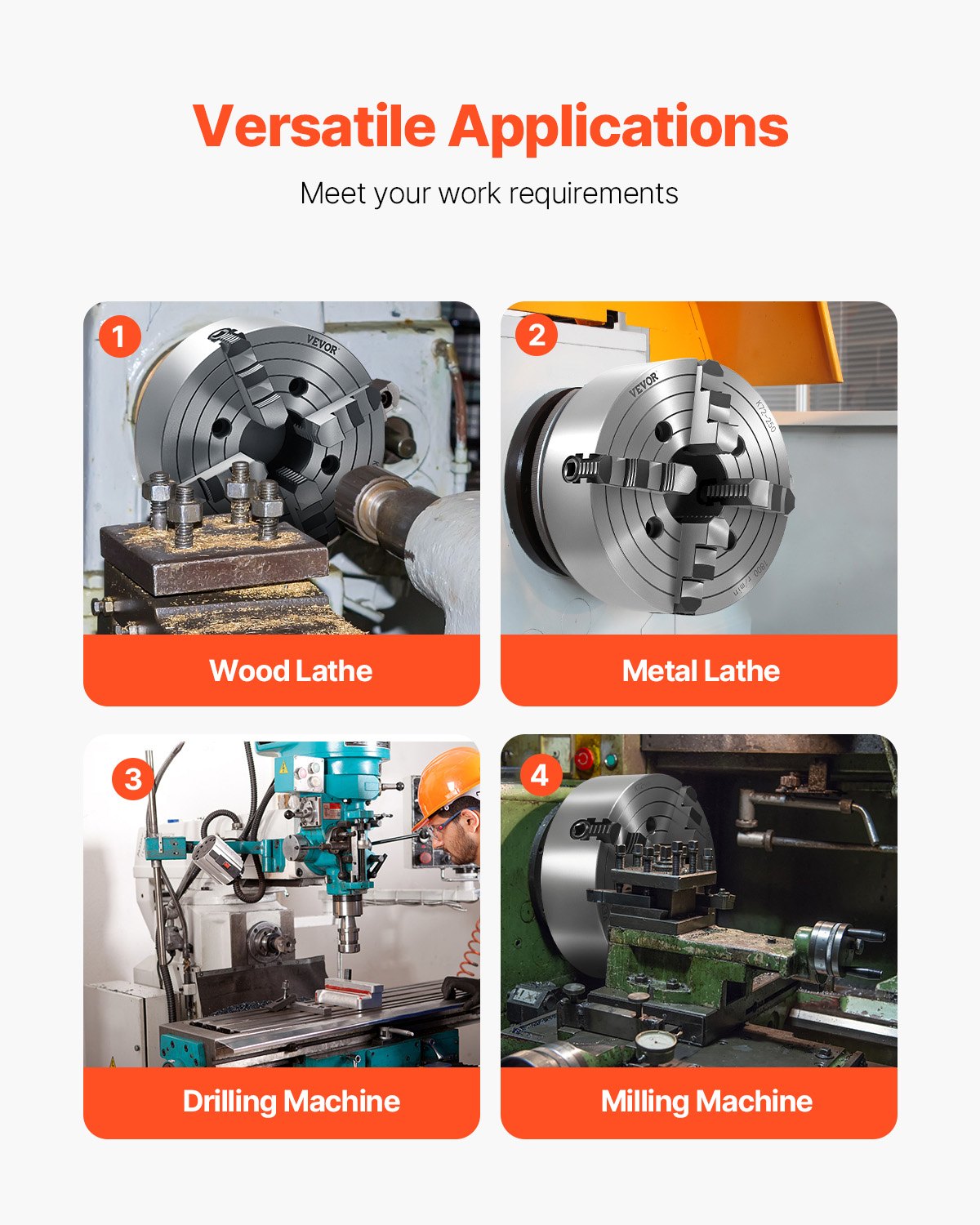

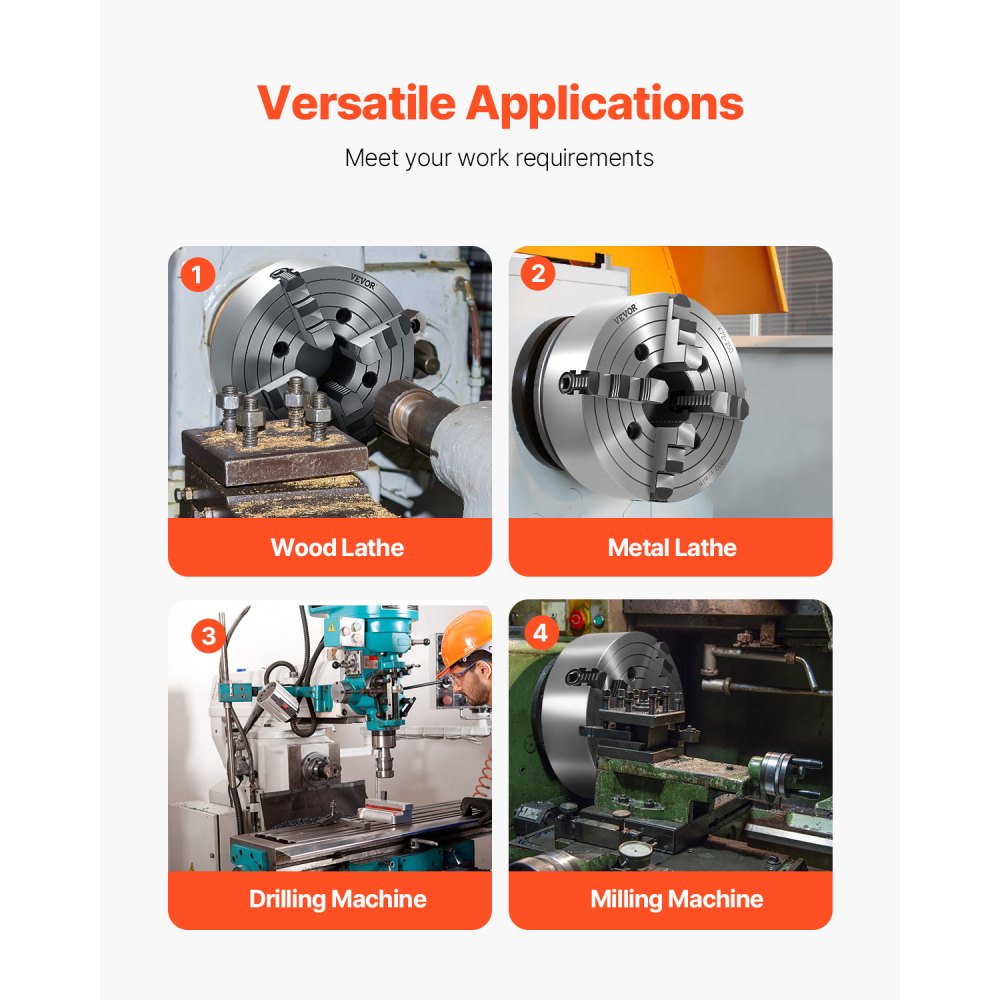

- Ideal for most lathes: Whether you're working with metal, drilling, or milling, our chuck increases your machining efficiency and flexibility. It helps you achieve precise and consistent results every time.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item

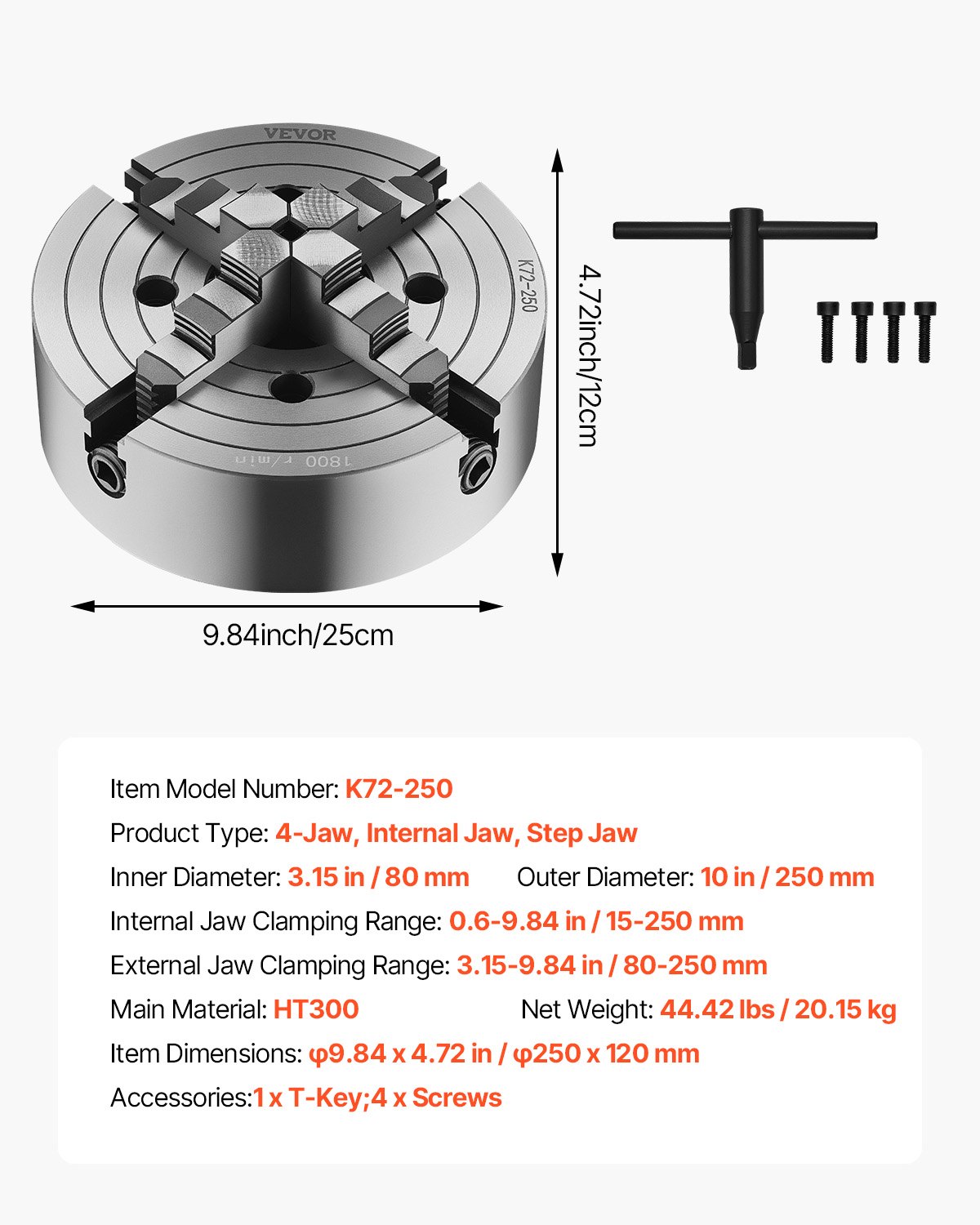

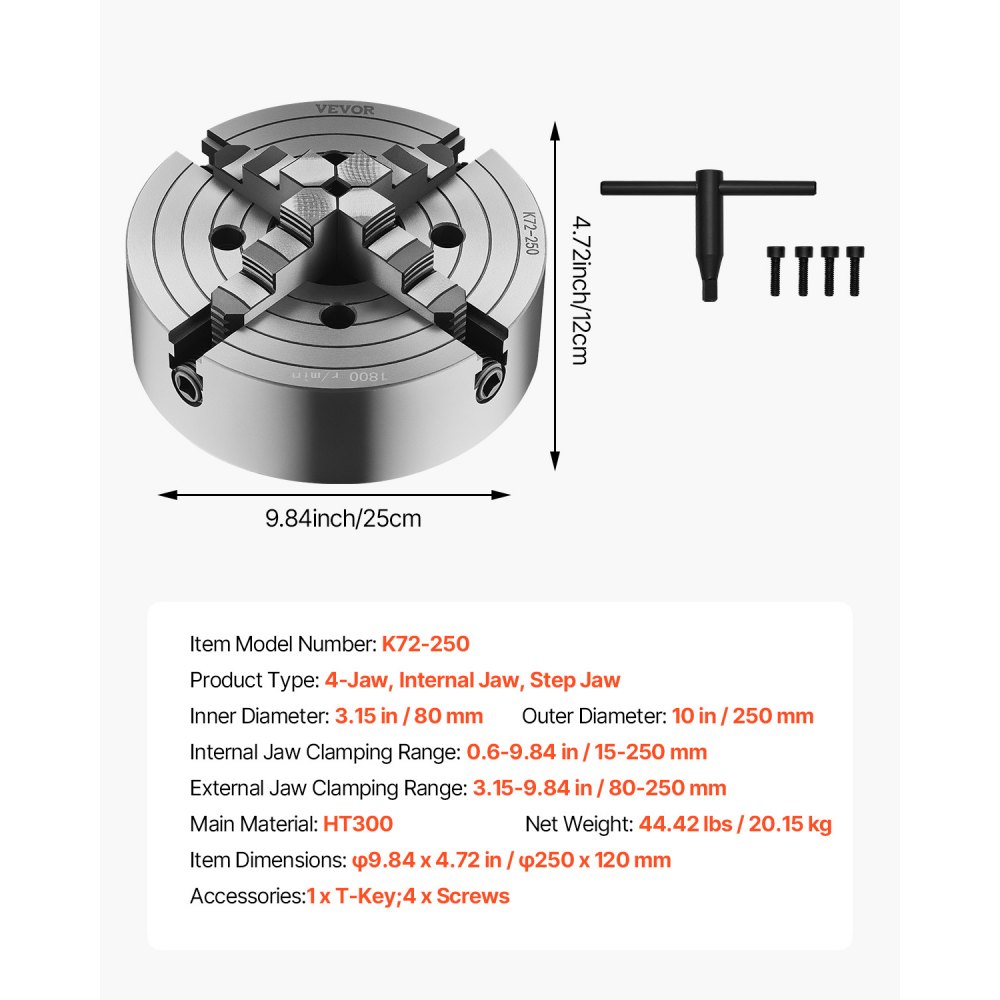

Product specification
- Article model number
- K72 250
- Product type
- 4-jaw, internal jaw, stepped jaw
- Inner diameter
- 3.15 inches / 80 mm
- Outer diameter
- 10 inches / 250 mm
- Internal jaw clamping range
- 0.6-9.84 inches / 15-250 mm
- External jaw clamping range
- 3.15–9.84 inches / 80–250 mm
- Main material
- HT300
- Net weight
- 44.42 lbs / 20.15 kg
- Item dimensions
- φ9.84 x 4.72 inches / φ250 x 120 mm
Description

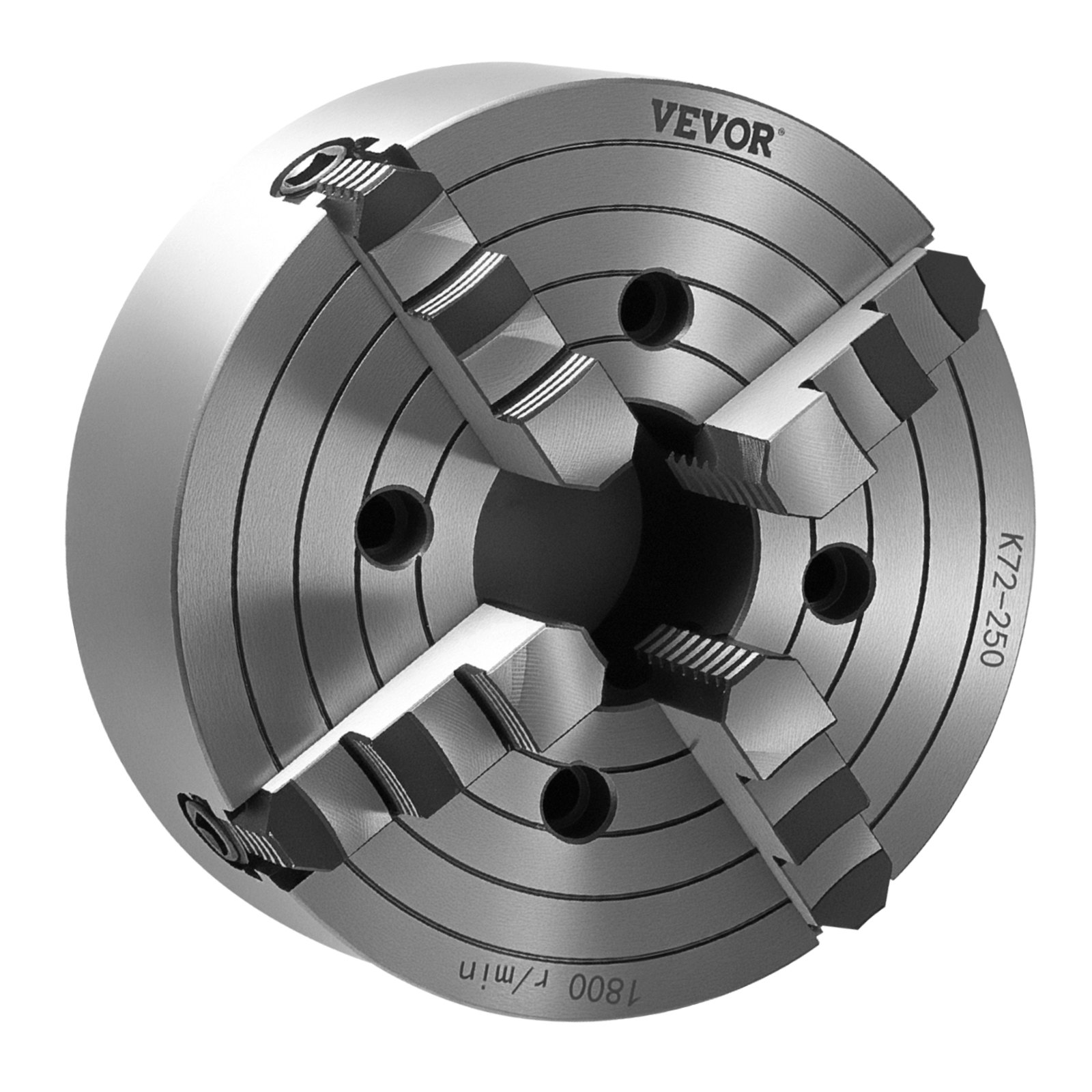

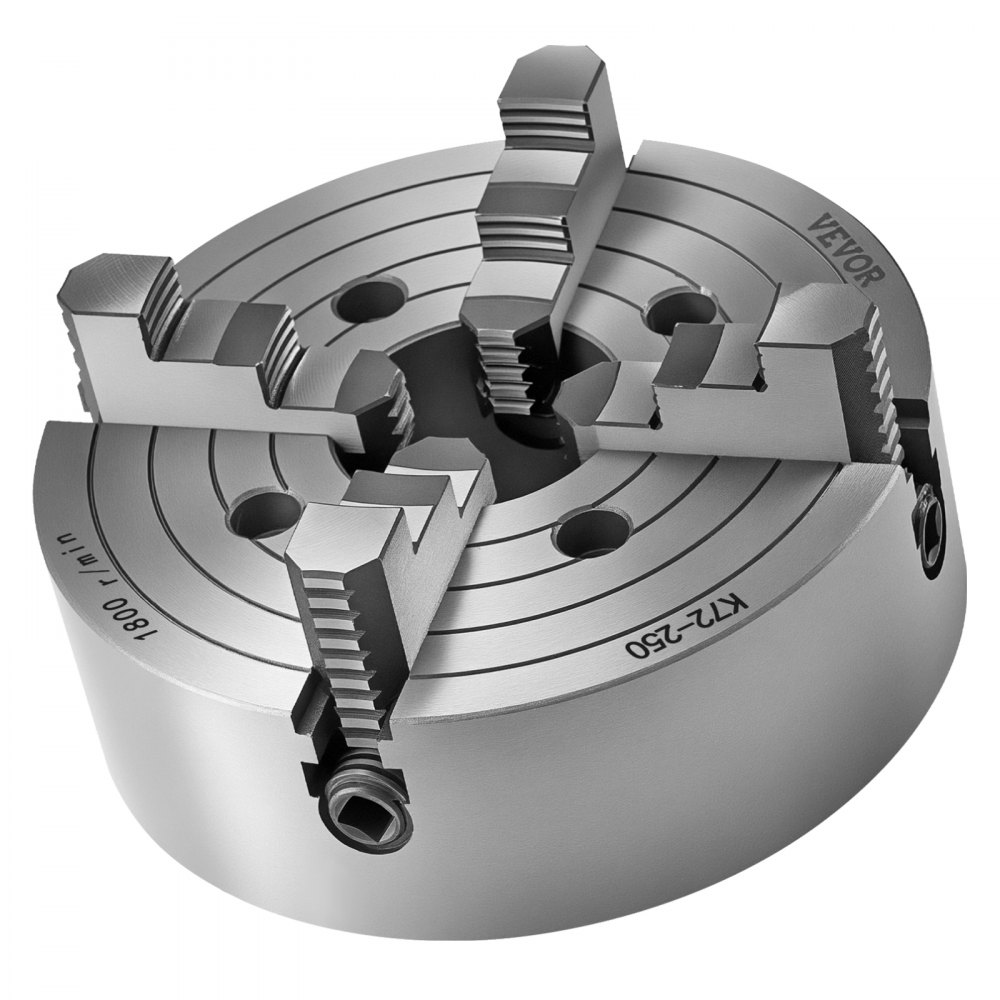

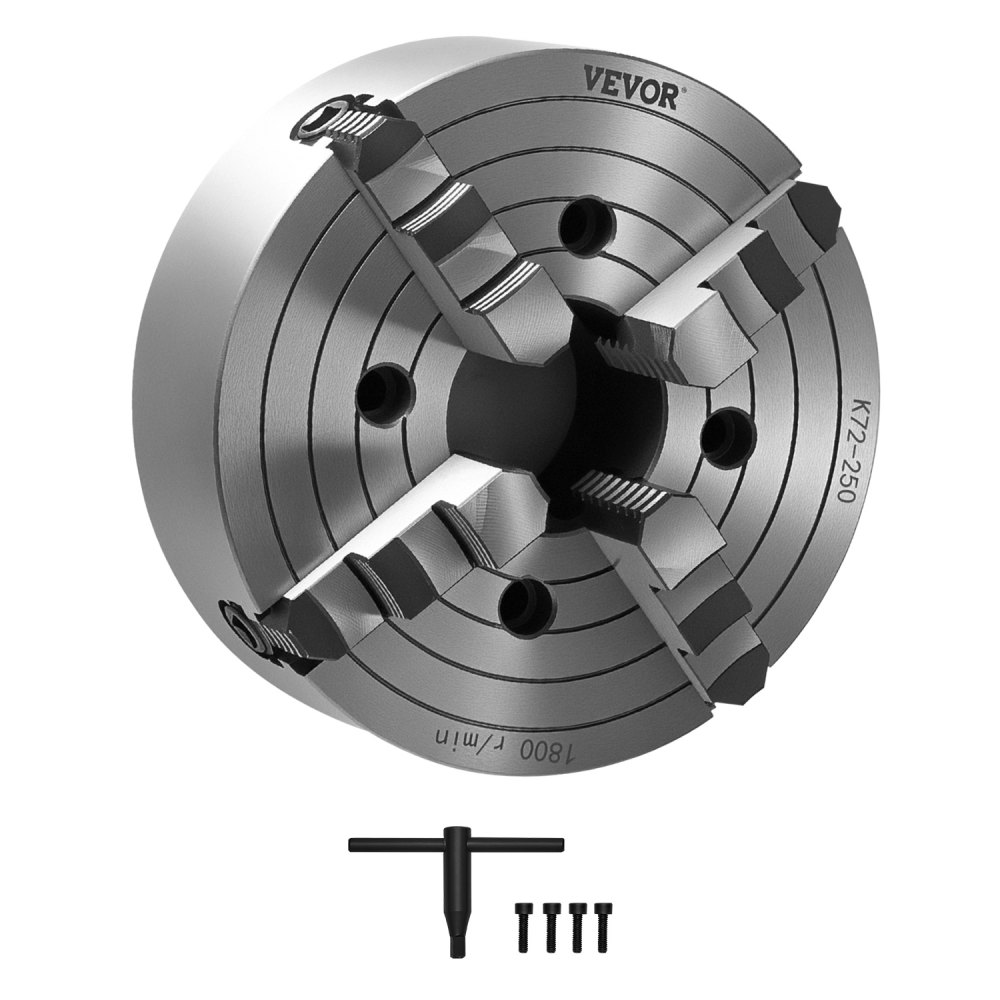

10-inch (250 mm) 4-jaw chuck: Precision meets durability
Made from high-quality HT300 cast iron with a jaw hardness of ≥53 HRC for long-lasting durability and corrosion resistance. The chuck allows for high-precision clamping without calibration. With an inner diameter of 3.15 inches (80 mm) and an outer diameter of 10 inches (250 mm), it easily handles clamping ranges from 0.6 to 9.84 inches (15 to 250 mm).
Key Features
Stable and reliable
This chuck is designed for high hardness and precision and features a T-shaped tool for easy mounting. Whether turning or clamping small workpieces, you can always rely on consistent, dependable performance.
Precision machining
Our chuck ensures precise control of clamping accuracy and is therefore ideal for precision machining tasks.
Versatile

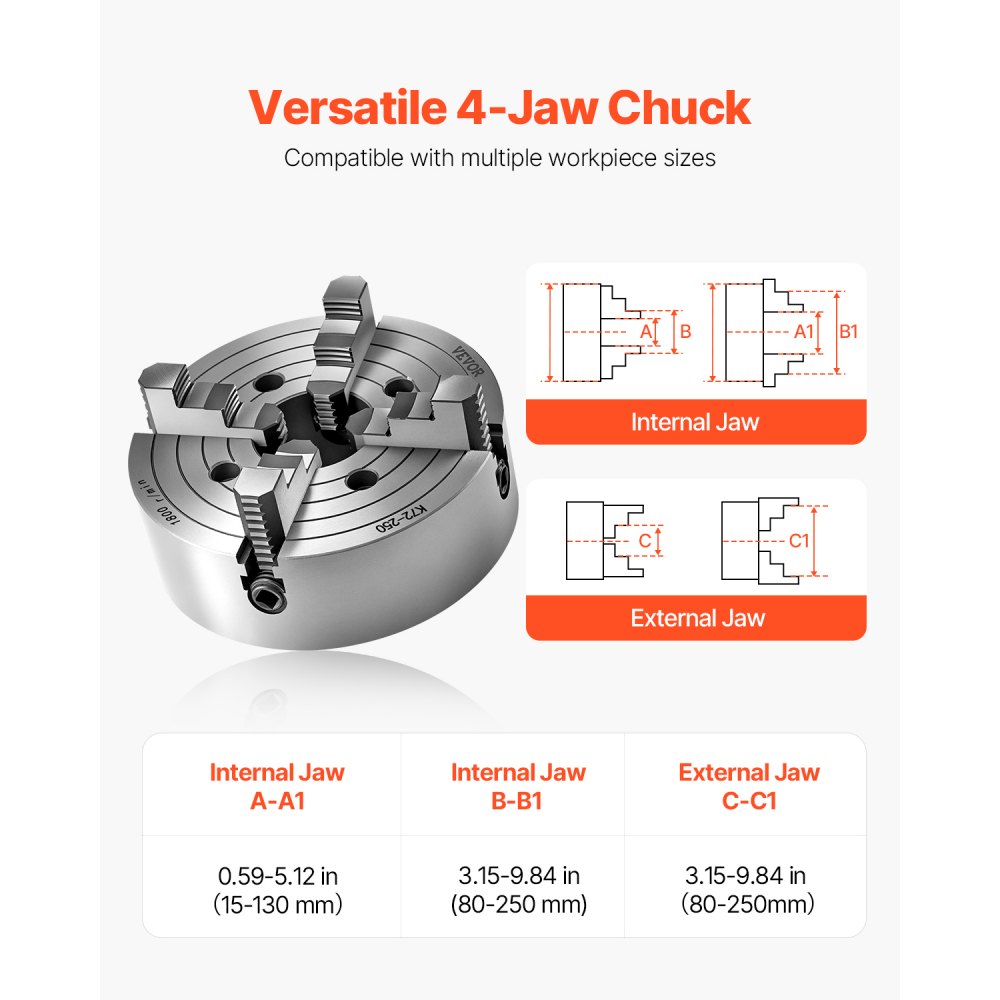

This chuck is designed for both internal and external clamping and meets a wide range of machining requirements. It offers efficient and stable clamping performance.
