Features & Details
- High-quality material: Diameter: 5 inches/125 mm. The body of the 4-jaw mini lathe chuck is made of cast iron that has passed rigorous quality tests. It features high strength and toughness, compressive strength, durability, and a long service life.

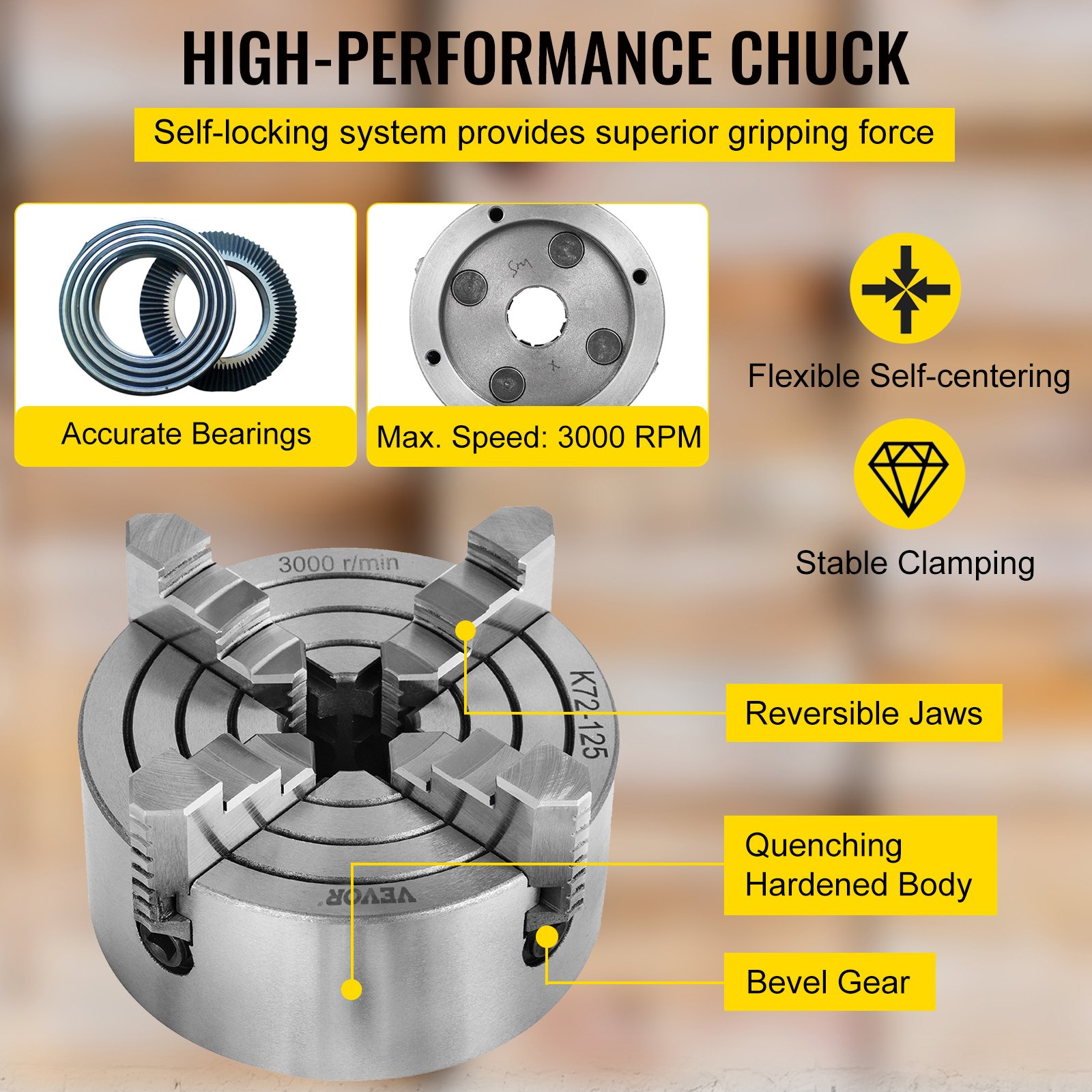

- Reversible jaw set: The chuck is equipped with three inwardly offset jaws that can be moved inwards or outwards to hold raw materials of different shapes. The high-precision design of the chuck's bevel gear ensures accurate chuck operation.
- Improved flexibility: The T-shaped clamping wrench of the rotating part allows for the installation of various workpieces. And the effortless operation reduces changeover time for your convenience. Internal jaw clamping range: 0.276"-2.244" / 7-57 mm. External jaw clamping range: 1.89"-4.92" / 48-125 mm.
- High precision: The 4-jaw chuck operates with precision, and the bearing tolerance is ≤ 0.003 inches / 0.07 mm to ensure satisfactory metalworking. The included accessories make the spiral chuck highly adaptable and compatible with the same jaw series as the collet chuck.
- Remarkable versatility: This independent 4-jaw metal chuck has a compact design. It is suitable for installation on many types of metal chucks and for clamping workpieces of various shapes.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 19 reviews
Reviews 4.8
All reviews are from verified purchases
Giancarlo
Reviewed on Mar 11,2026
Everything is fine, the article arrived quickly, it hasn't been assembled yet but at first glance it seems to be of good quality, I am satisfied
See Less
See More
Giuseppe
Reviewed on Dec 08,2025
Ottimo
See Less
See More
Raffaele
Reviewed on Jan 15,2025
If there had also been technical drawings, it would have been much easier to build the flange connector on the lathe.
See Less
See More
Daniele
Reviewed on Jun 29,2024

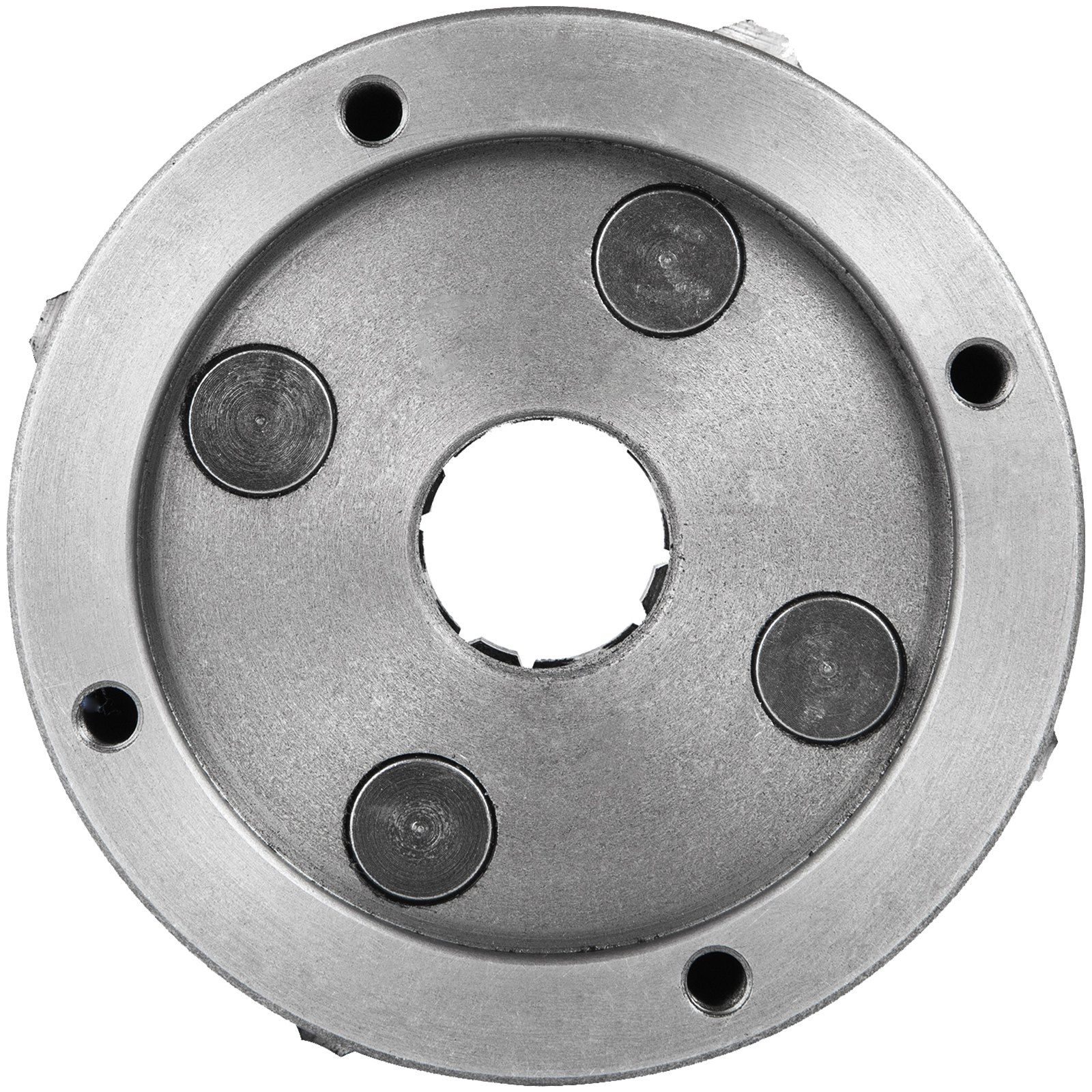

Everything is fine. The only clarification that should be made is the position of the rear holes, which is not mentioned in the description. It has 4 spaced 90 degrees apart from each other. Probably suitable for most supports except for mine. They would provide an excellent service if they included the technical specifications of the items.
See Less
See More
See all 19 reviews
About this item
Product specification
- Chuck body material
- Cast iron
- Color
- Silver
- Jaw material
- 40CR steel
- Bevel gear material
- 40CR steel
- Sprocket material
- 20CR steel
- Chuck diameter
- 4.92" / 125 mm
- Center hole
- 1.2" / 30 mm
- Circle diameter
- 4.3" / 108 mm

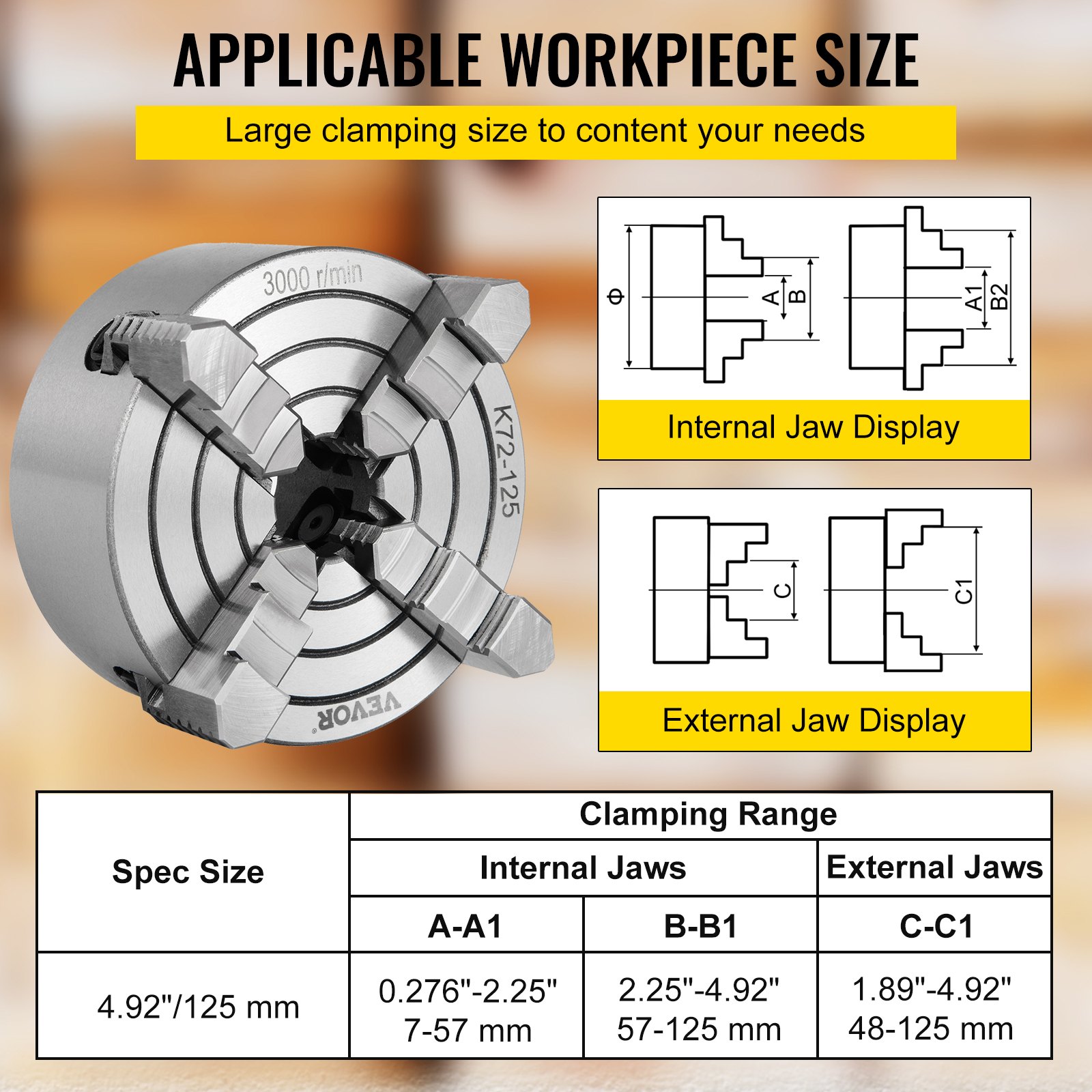

- Internal jaw clamping range
- 0.276"-2.244" / 7-57 mm
- External jaw clamping range
- 1.89"-4.92" / 48-125 mm
- Tolerance
- ≤ 0.003" / 0.07 mm
- Accuracy
- 0.002" / 0.051 mm
- Maximum speed
- 3000 rpm
- Item weight
- 10.9 lbs / 4.92 kg
- Packaging dimensions (L x W x H)
- 5.9" x 5.5" x 3.93" / 15 x 14 x 10 cm
Description

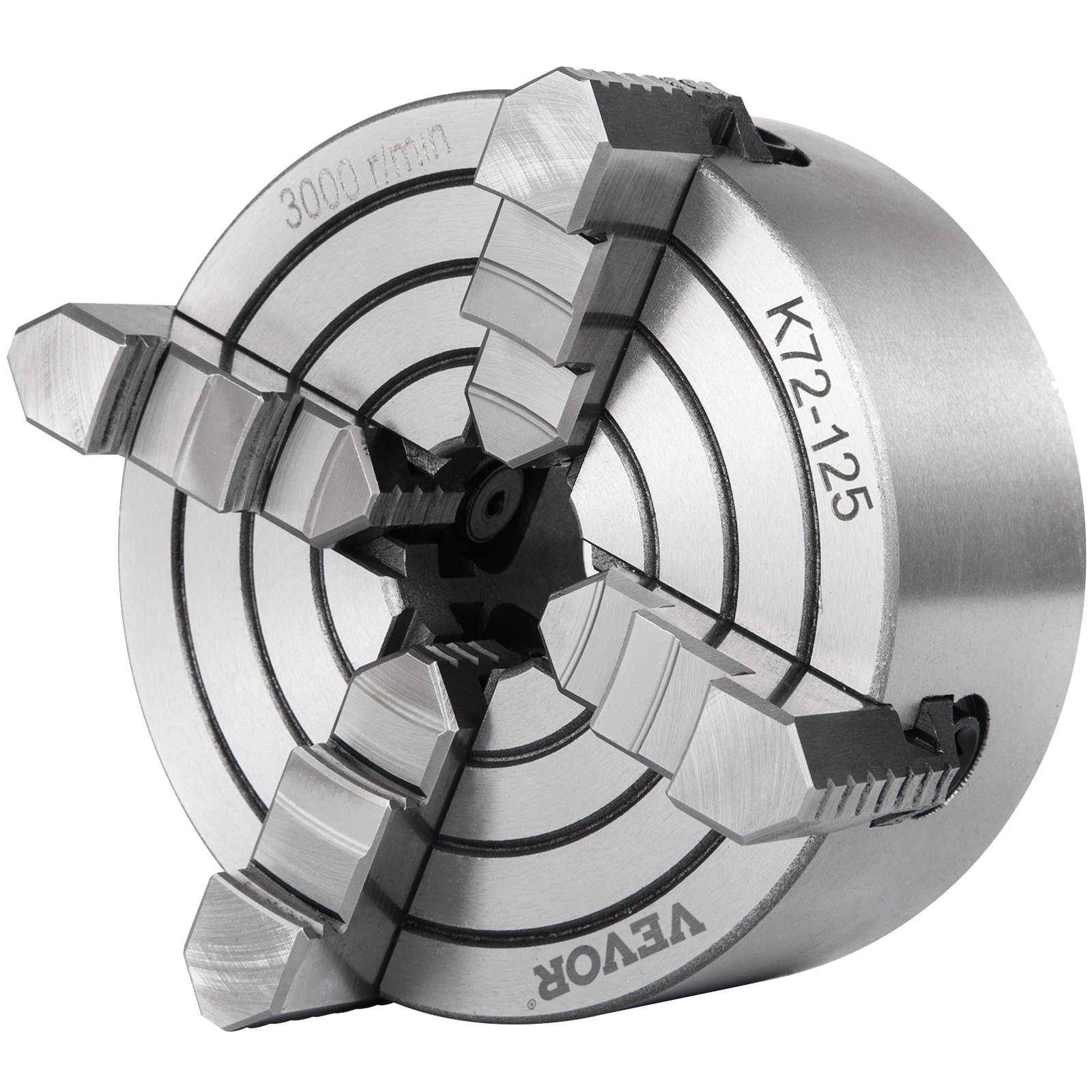

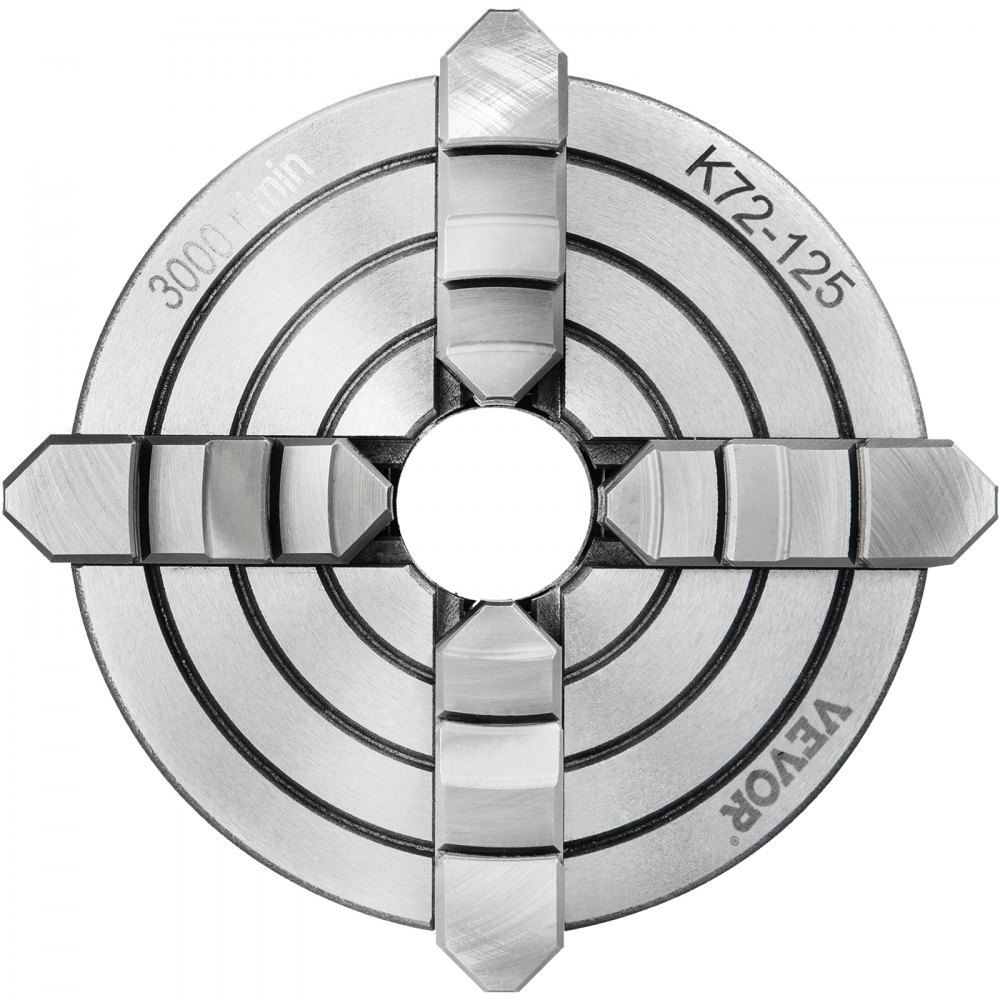

K72-125 4-jaw single chuck
Large clamping range and flexible adjustment, and includes a chuck key.
The 5-inch single chuck consists of a robust cast iron body and four hardened steel jaws, making it resistant to harsh working environments. It features a large clamping range and high precision, allowing you to machine a variety of materials after securing it with a single T-handle. It is ideal for your lathe.
- High-quality material
- Reversible jaw set
- Improved flexibility
- High precision

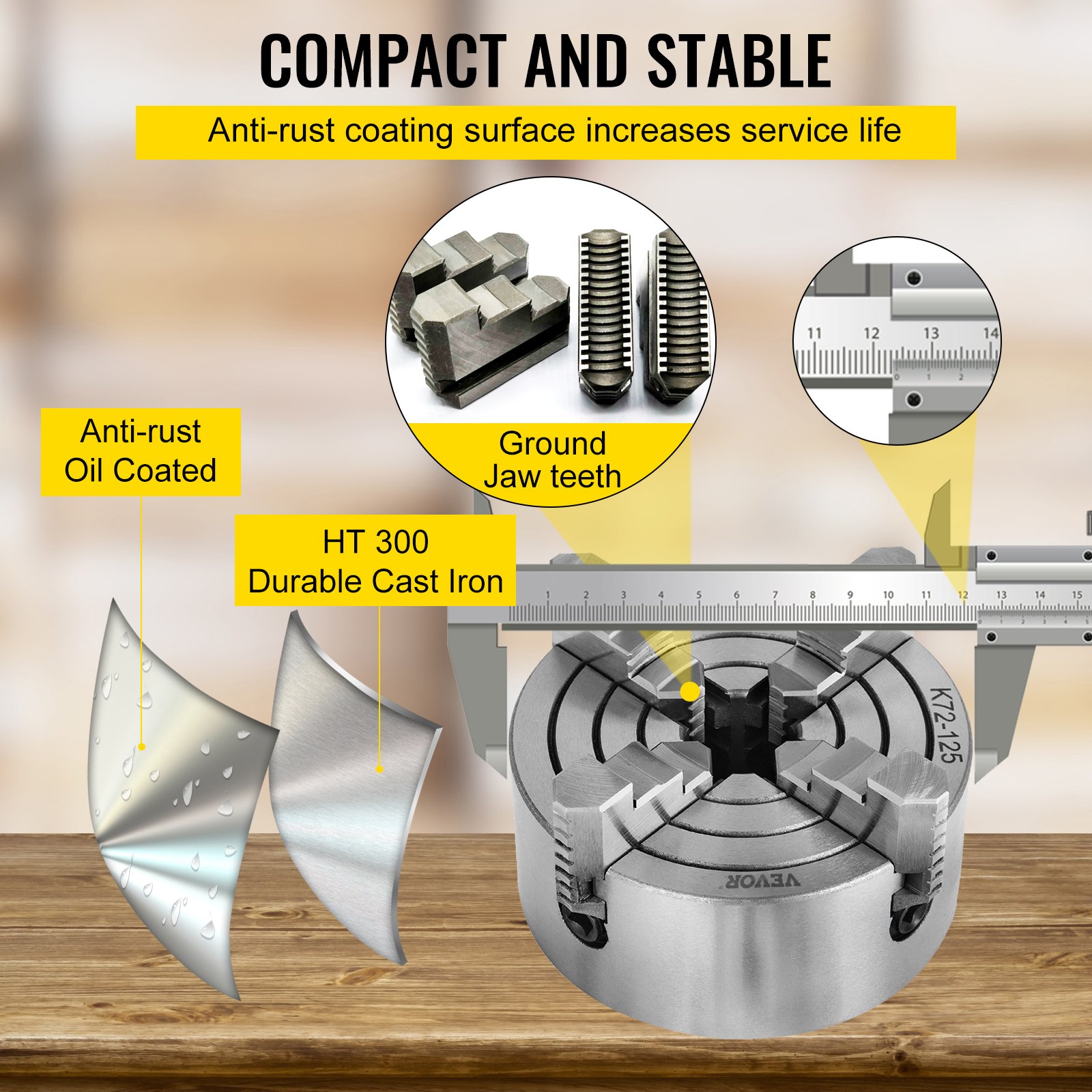

Quality cast iron
The body of the chuck is made of high-quality cast iron, is robust and durable and has a flat appearance.

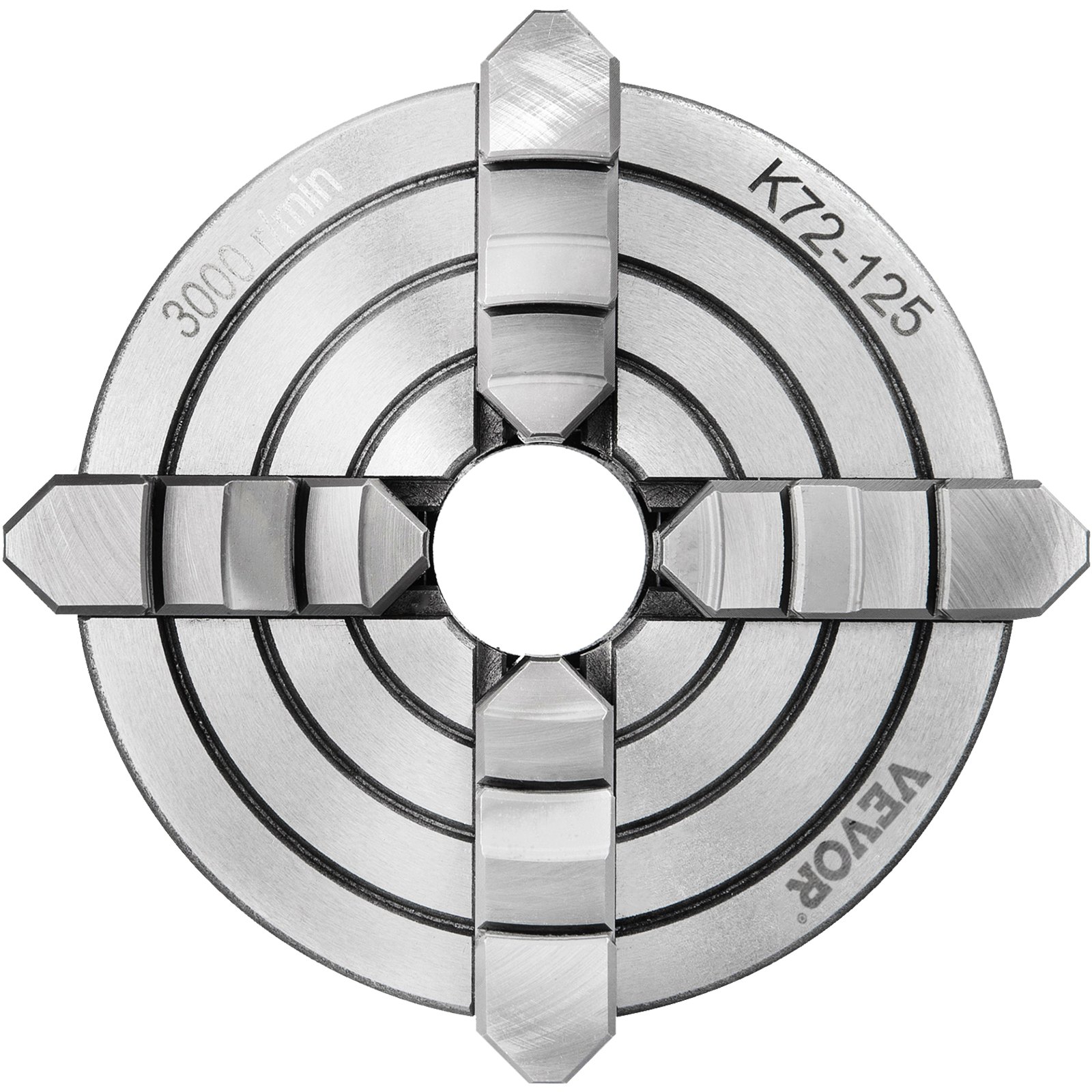

4 reversible jaws
The clamping jaws can be adjusted either inwards or outwards, making it easier for you to work with different materials.
With great accuracy
The K72 lathe chuck operates with low vibration and ensures precise finished parts.

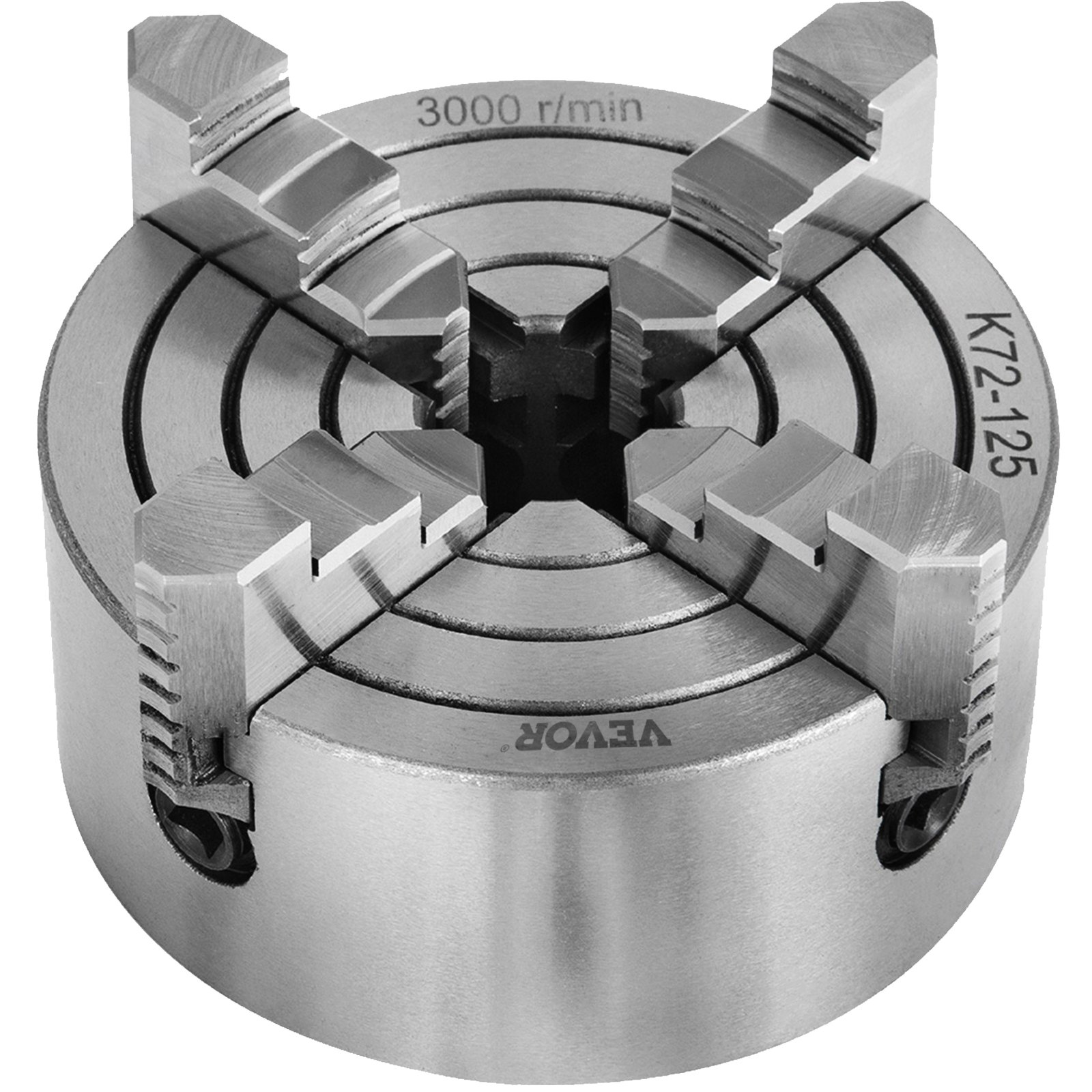

Independent baking
The mini chuck has four independent jaws. Each of them is individually adjustable and can be stopped at different positions.
Easy to use

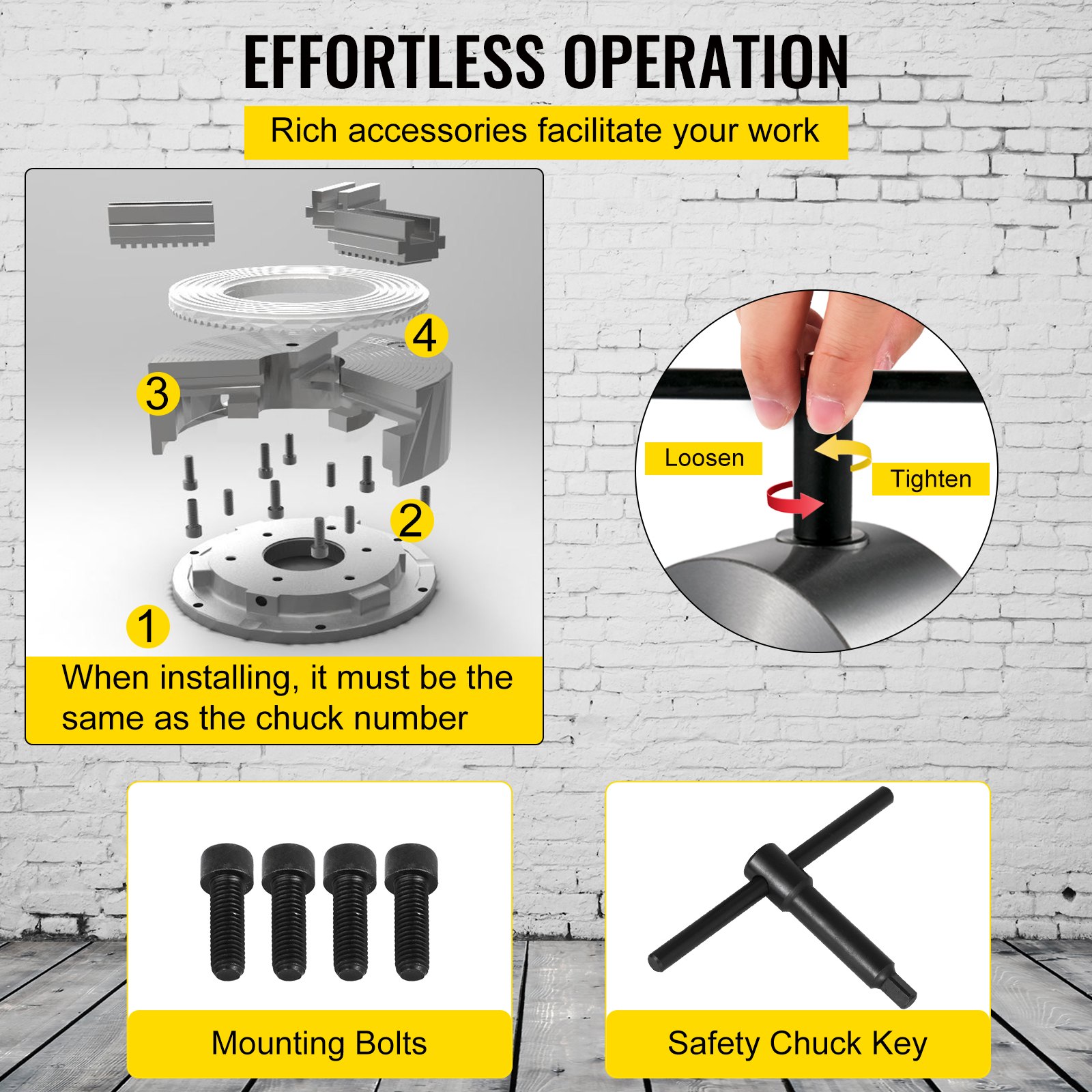

The lathe collet chuck comes with a T-wrench, which allows you to easily loosen or tighten the jaws.

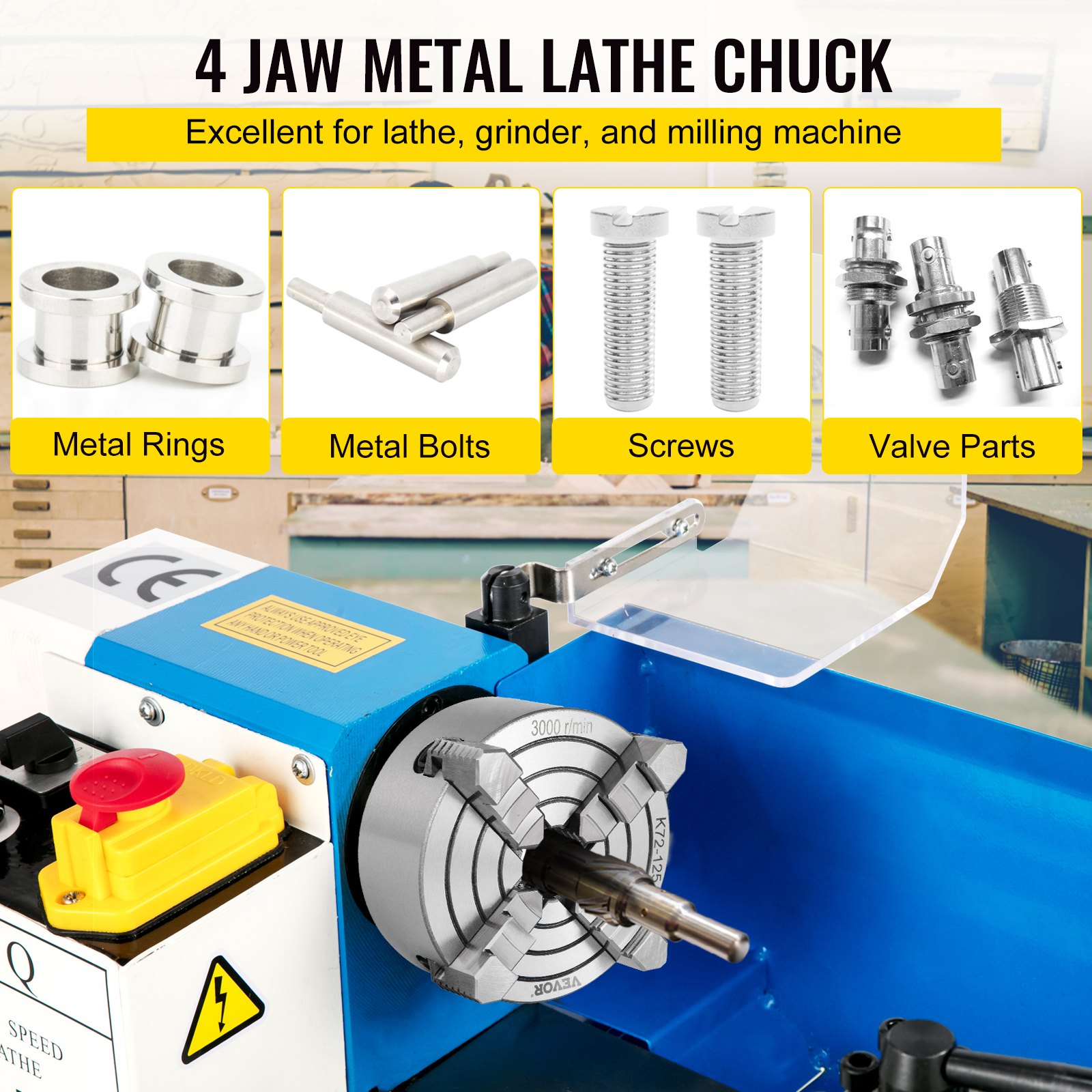

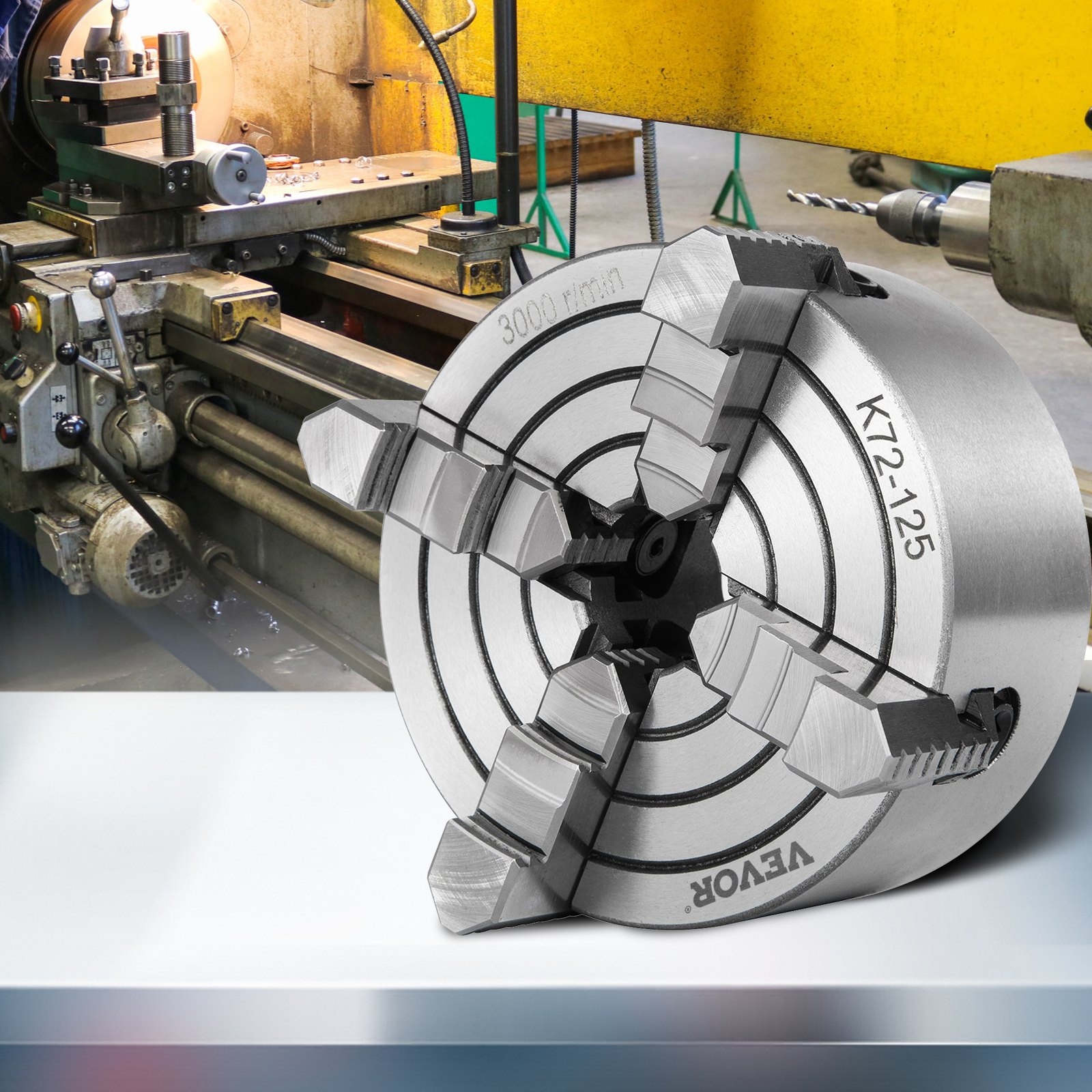

Wide application
The 4-jaw single chuck is lightweight and practical, making it the perfect choice for your lathe.
- Chuck body material: Cast iron
- Color: Silver
- Jaw material: 40CR steel
- Bevel gear material: 40CR steel
- Sprocket material: 20CR steel

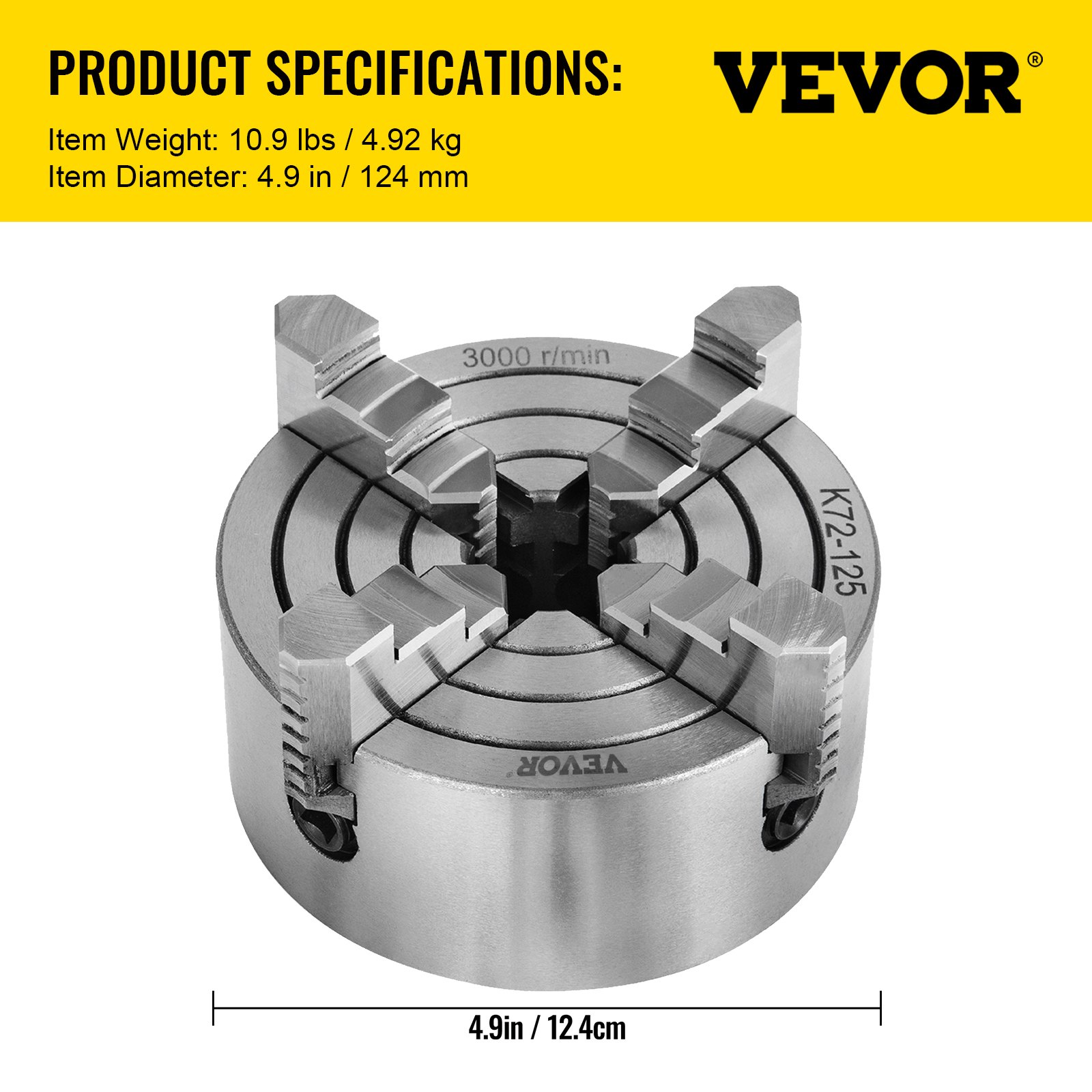

- Chuck diameter: 4.92" / 125 mm
- Center hole: 1.2" / 30 mm
- Circle diameter: 4.3" / 108 mm
- Internal jaw clamping range: 0.276"-2.244" / 7-57 mm
- External jaw clamping range: 1.89"-4.92" / 48-125 mm
- Tolerance: ≤ 0.003" / 0.07 mm
- Accuracy: 0.002" / 0.051 mm
- Maximum speed: 3000 rpm
- Item weight: 10.9 lbs / 4.92 kg
- Packaging dimensions (L x W x H): 5.9" x 5.5" x 3.93" / 15 x 14 x 10 cm

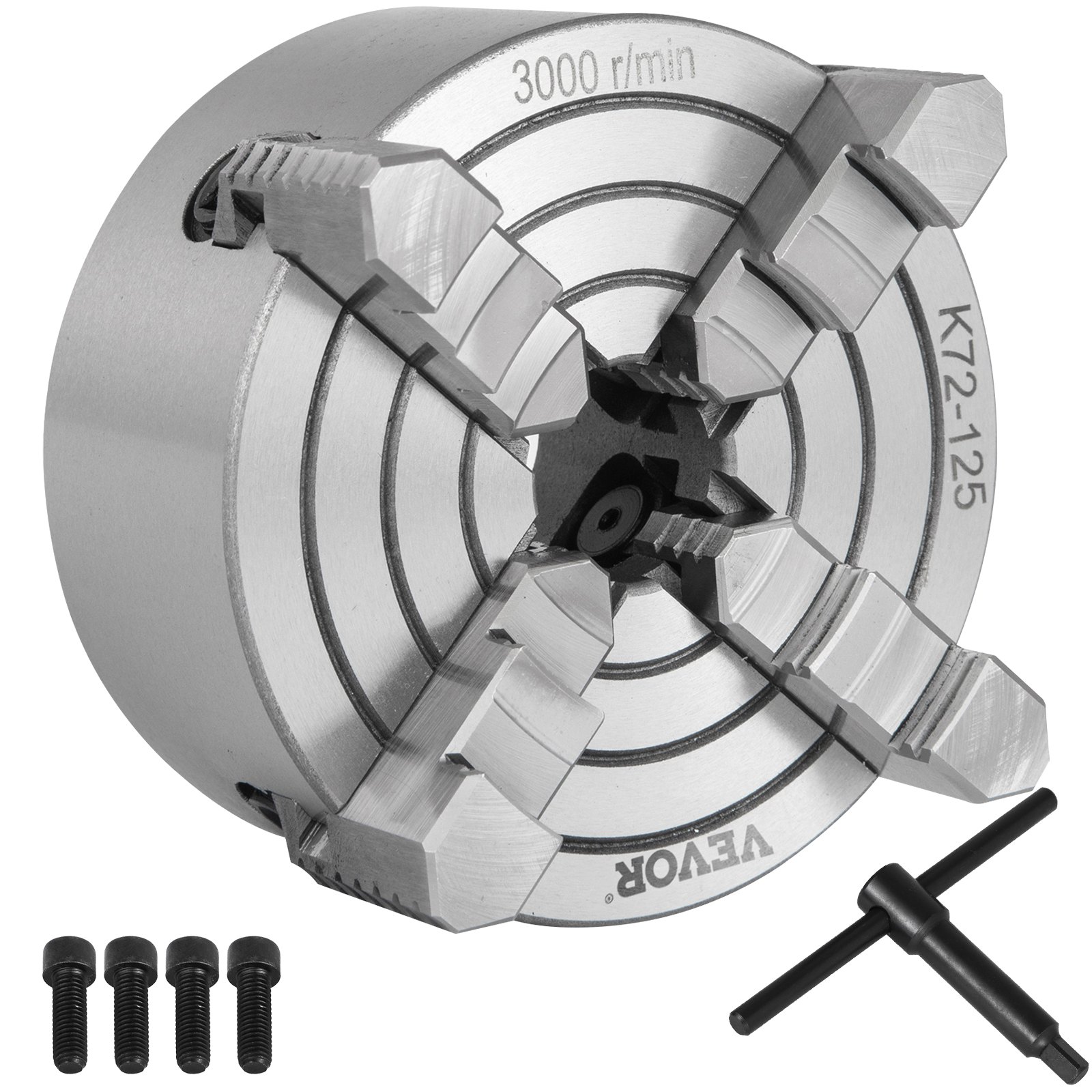

- 1 x chuck
- 4 x mounting screws
- 1 x drill chuck key
K72-125 4-jaw single chuck
Large clamping range and flexible adjustment, and includes a chuck key.
The 5-inch single chuck consists of a robust cast iron body and four hardened steel jaws, making it resistant to harsh working environments. It features a large clamping range and high precision, allowing you to machine a variety of materials after securing it with a single T-handle. It is ideal for your lathe.
- High-quality material
- Reversible jaw set
- Improved flexibility
- High precision
Quality cast iron
The body of the chuck is made of high-quality cast iron, is robust and durable and has a flat appearance.
4 reversible jaws
The clamping jaws can be adjusted either inwards or outwards, making it easier for you to work with different materials.
With great accuracy
The K72 lathe chuck operates with low vibration and ensures precise finished parts.
Independent baking
The mini chuck has four independent jaws. Each of them is individually adjustable and can be stopped at different positions.
Easy to use
The lathe collet chuck comes with a T-wrench, which allows you to easily loosen or tighten the jaws.
Wide application
The 4-jaw single chuck is lightweight and practical, making it the perfect choice for your lathe.
- 1 x chuck
- 4 x mounting screws
- 1 x drill chuck key
- Chuck body material: Cast iron
- Color: Silver
- Jaw material: 40CR steel
- Bevel gear material: 40CR steel
- Sprocket material: 20CR steel
- Chuck diameter: 4.92" / 125 mm
- Center hole: 1.2" / 30 mm
- Circle diameter: 4.3" / 108 mm
- Internal jaw clamping range: 0.276"-2.244" / 7-57 mm
- External jaw clamping range: 1.89"-4.92" / 48-125 mm
- Tolerance: ≤ 0.003" / 0.07 mm
- Accuracy: 0.002" / 0.051 mm
- Maximum speed: 3000 rpm
- Item weight: 10.9 lbs / 4.92 kg
- Packaging dimensions (L x W x H): 5.9" x 5.5" x 3.93" / 15 x 14 x 10 cm
Questions and Answers (3)
questo mandrino da 125 con griffe indipendenti è adatto per tornio fervi 0708?
Il diametro di rotazione della macchina utensile può raggiungere i 125 mm.Finché è realizzata la piastra di collegamento, è adatta.
By vevor
Helpful
(
5
)
Prima di procedere all'acquisto, volevo sapere se il mandrino a 4 griffe e compatibile con il mio tornio VEVOR MX S 716 G
Si raccomanda che la flangia di installazione sia generalmente compatibile.
By vevor
Helpful
(
0
)
Qual’è il diametro del foro!
Il diametro del mandrino è di 95 mm e la distanza tra le viti di montaggio è di 108 mm.
By vevor
Helpful
(
0
)
