Features & Details
- Key parameters: Power: 1.5 kW, Horsepower: 2 hp, Input current: 7.5 A. Input phase: single-phase 220 V or three-phase 220 V; Output phase: three-phase 220 V. Input frequency: 40–60 Hz; Output frequency: 0–400 Hz.

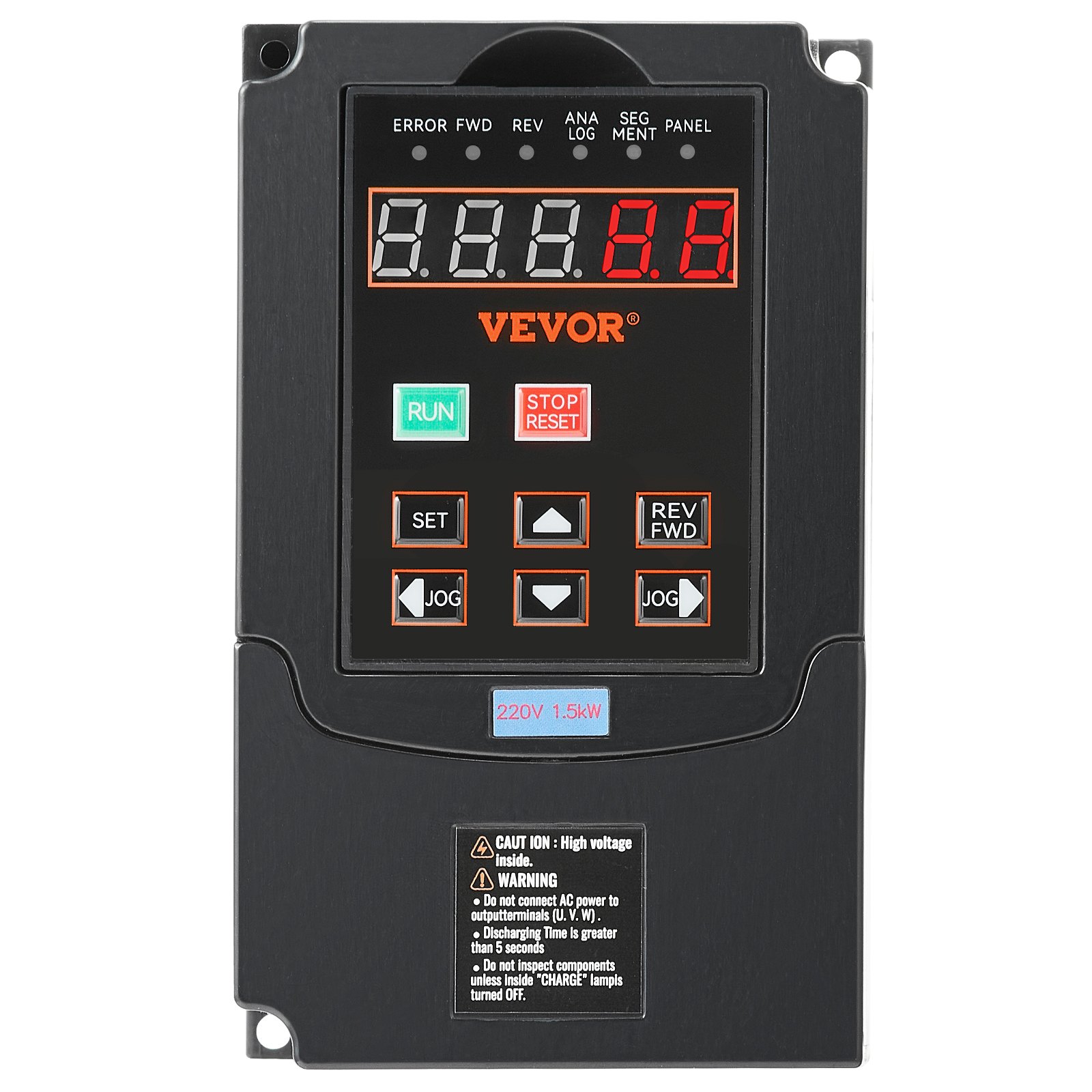

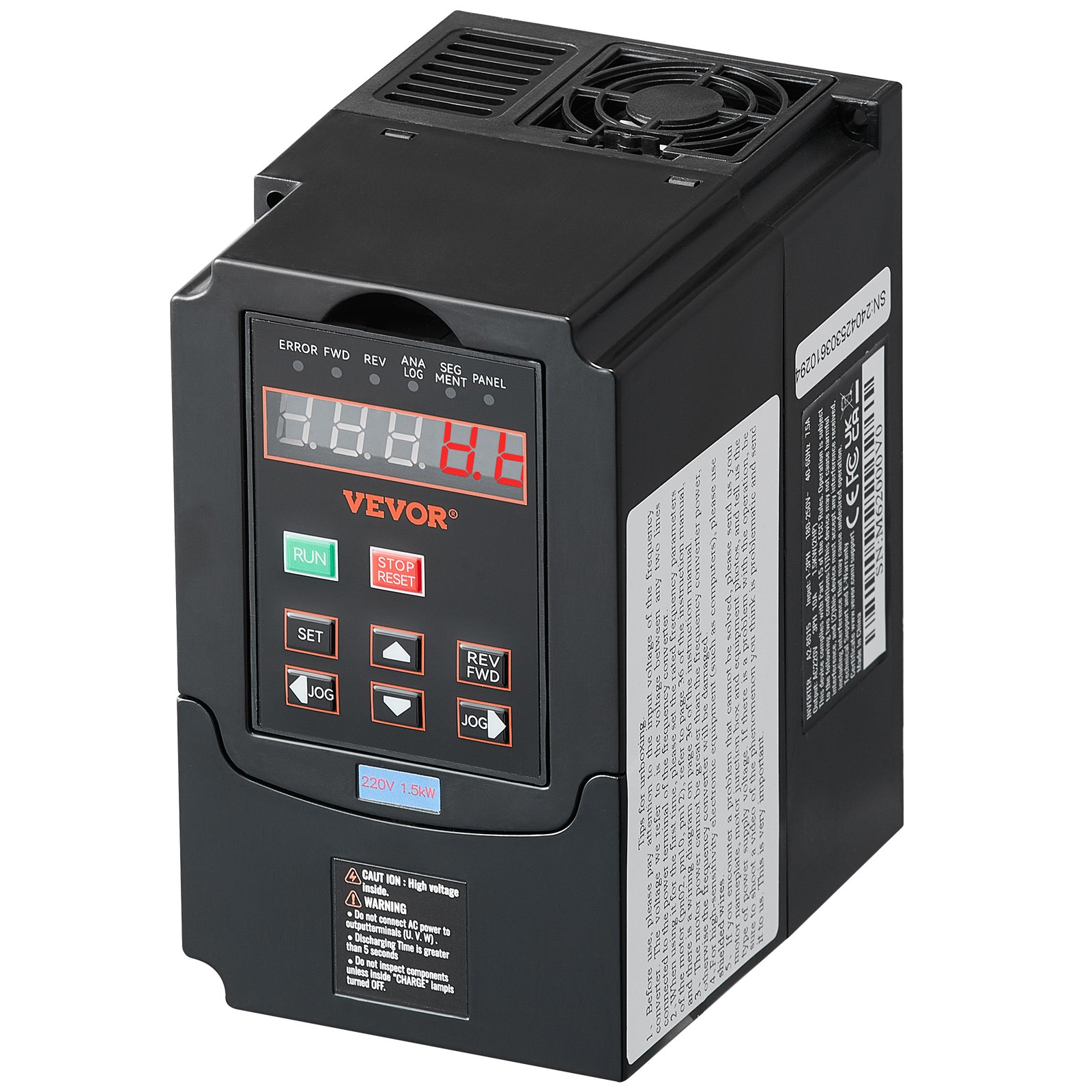

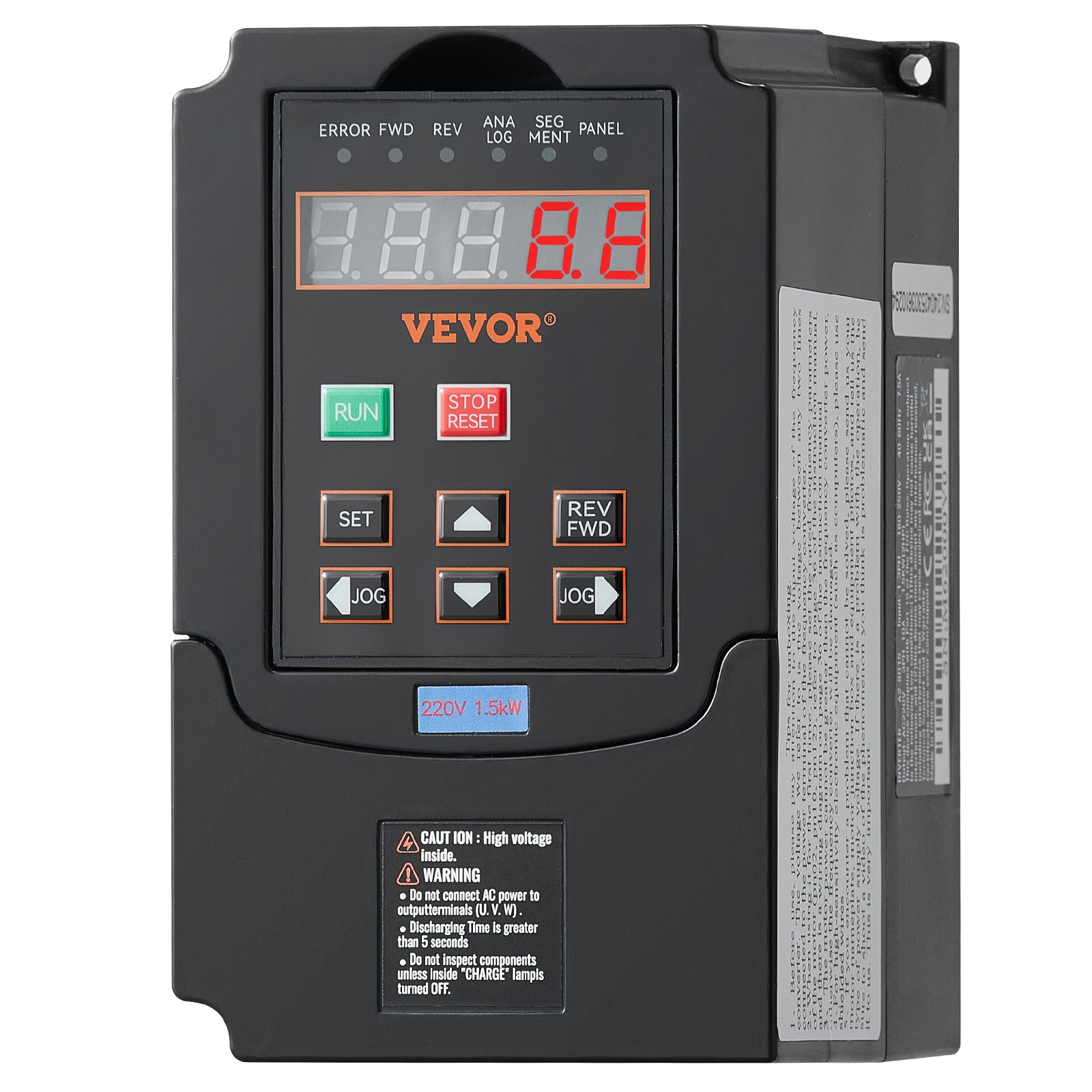

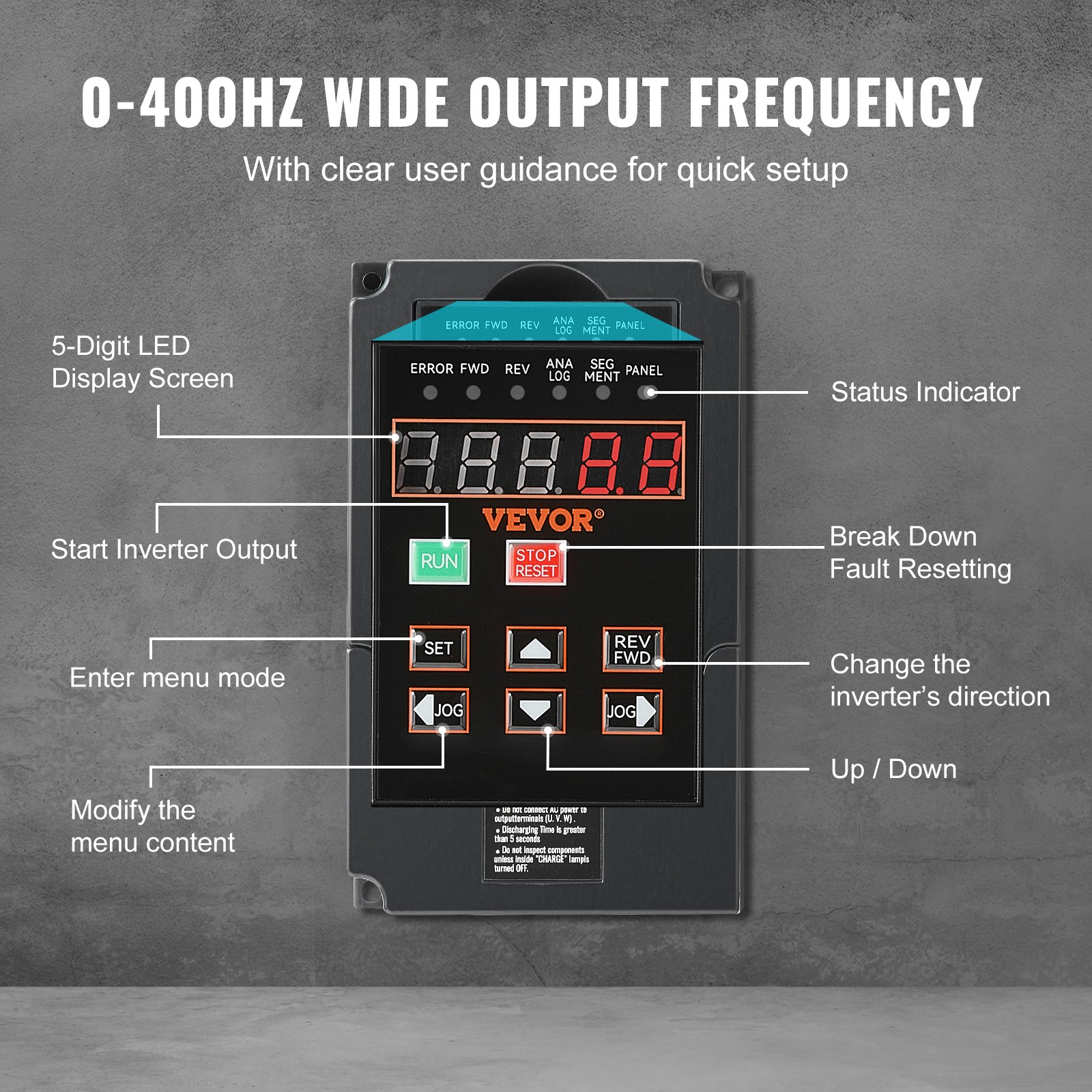

- Intuitive display and buttons: Our variable frequency drive (VFD) features an intuitive display and user-friendly buttons, allowing users to get started quickly. The detachable control panel can be connected to the appropriate interface for remote control, providing added convenience and flexibility.
- Safety and durability redefined: The VFD features a comprehensive protection system that safeguards against overcurrent, overload, overvoltage, phase loss, and more. These features prioritize your safety and increase the VFD's lifespan. Its multi-sided, multi-hole design ensures rapid cooling during extended use.

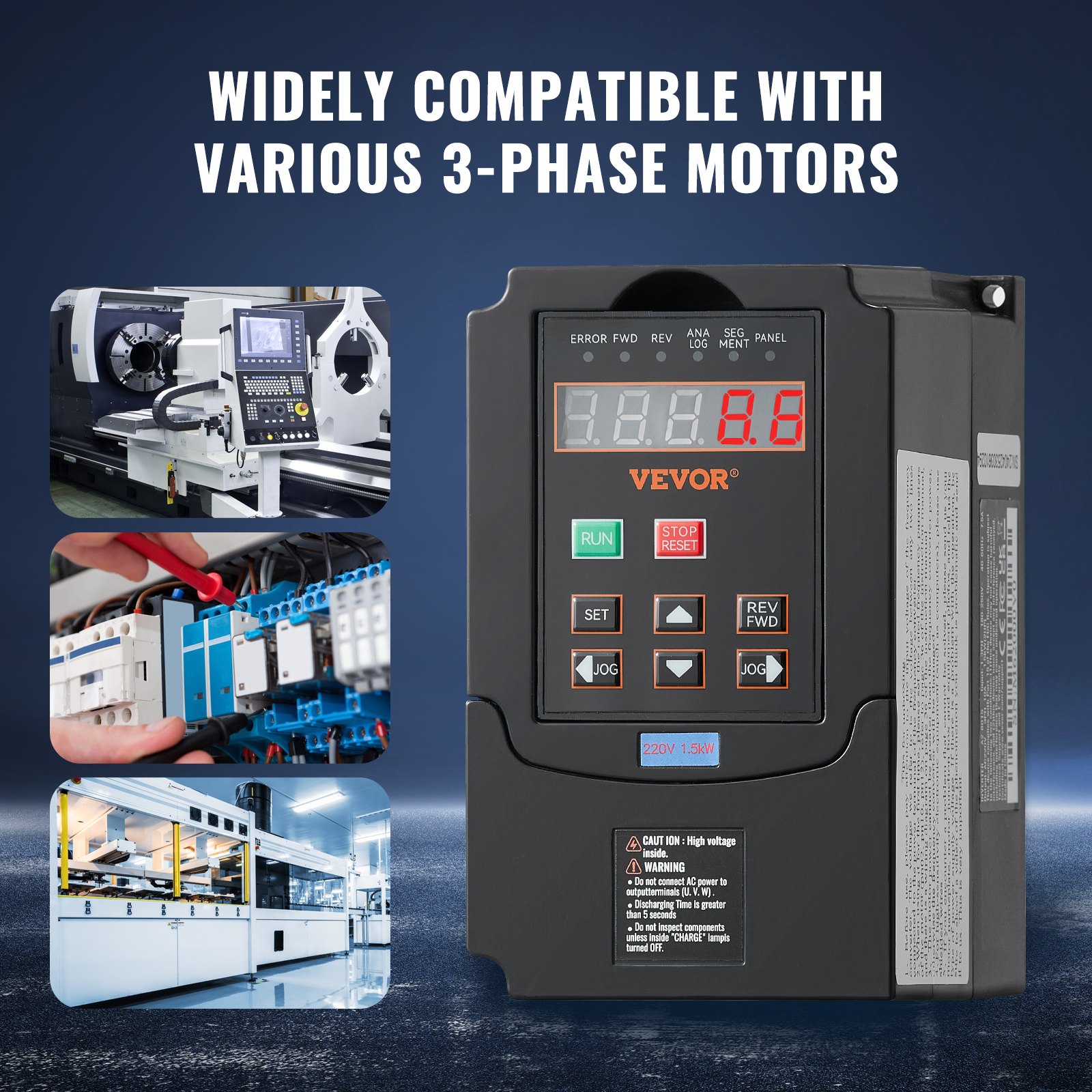

- Master of versatility: Our VFD is ideal for driving three-phase motors in various machines, including CNC milling machines, CNC machining centers, milling machines, drilling machines, compressors, pumps, grinding machines, elevators, centrifuges, and other speed-controlled machines. For higher motor loads and optimal results, choose a higher-powered VFD.
- Friendly reminder: The motor power should not exceed that of the frequency converter, and a lower power rating is perfectly acceptable. Depending on the varying load, the power may need to be reduced for optimal performance, especially under high load conditions.
Frequently Bought Together
Reviews 4.6
All reviews are from verified purchases
Average rating based on 8 reviews
Reviews 4.6
All reviews are from verified purchases
See all 8 reviews
About this item
Product specification
- Article model number
- A2-8015
- Input voltage
- 220 V (single-phase or three-phase)
- Input current
- 7.5 A
- Output voltage
- 220 V (three-phase)
- Power
- 1.5 kW
- Input frequency
- 40-60 Hz
- Output frequency
- 0-400 Hz
- Power
- 2 hp
- Main material
- Flame-retardant ABS
- Net weight
- 1.9 lbs / 0.86 kg

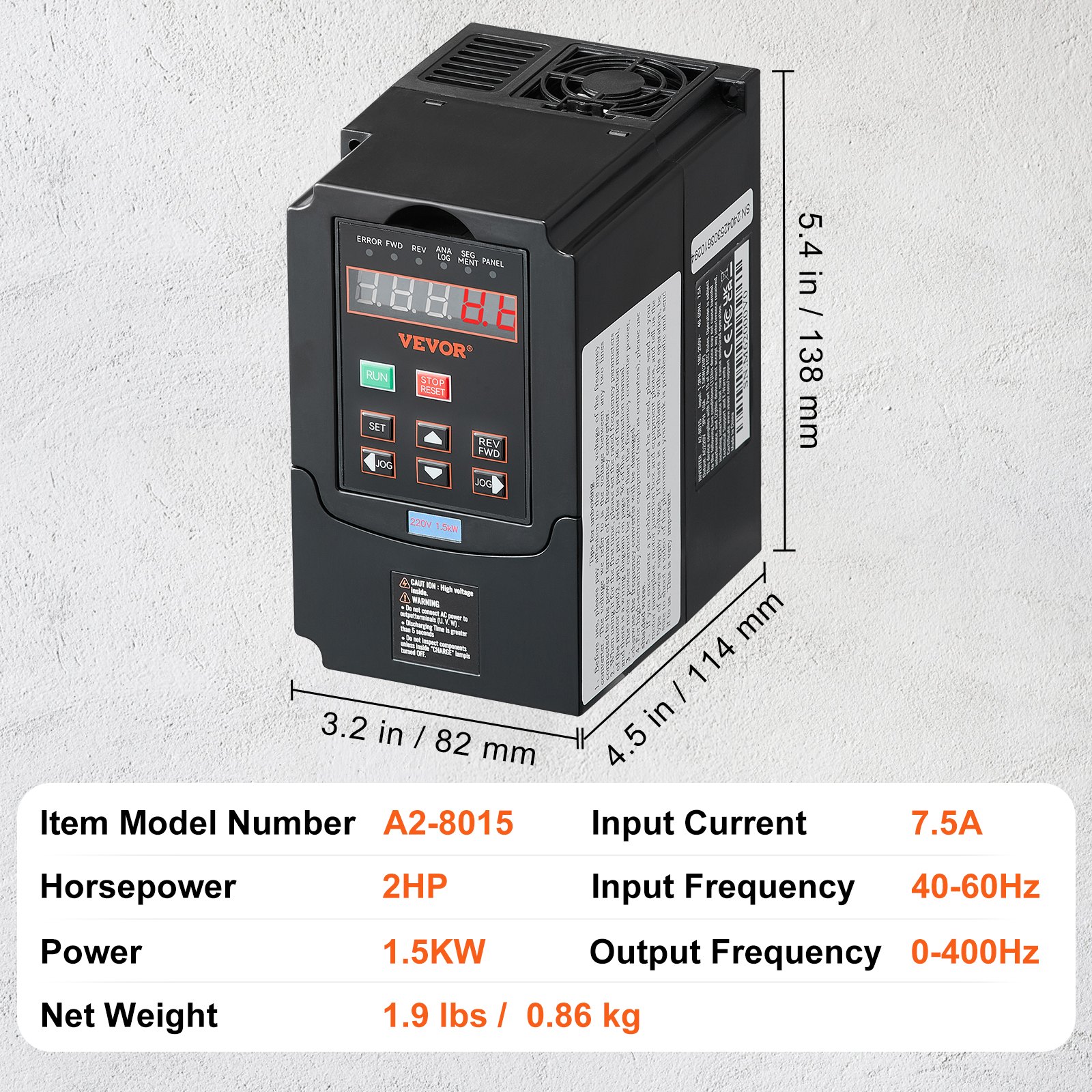

- Product dimensions
- 5.4 x 3.2 x 4.5 inches / 138 x 82 x 114 mm
Description
1.5 kW, 7.5 A, 2 HP frequency converter

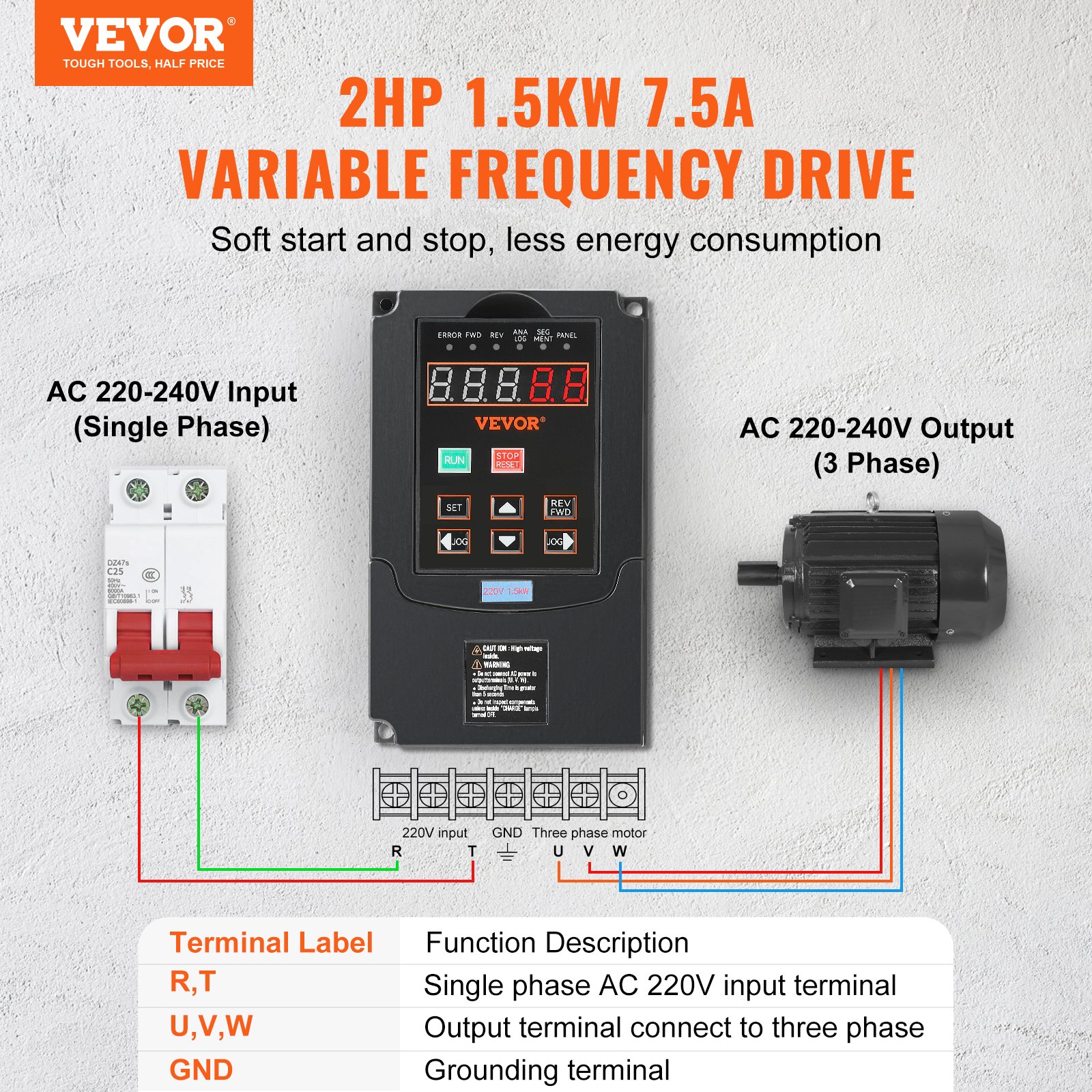

The frequency converter's input is single-phase 220 V (1PH) or three-phase 220 V (3PH), and its output is three-phase 220 V (3PH). Simple wiring, an intuitive display, and comprehensive protection functions improve energy efficiency and minimize machine failures.

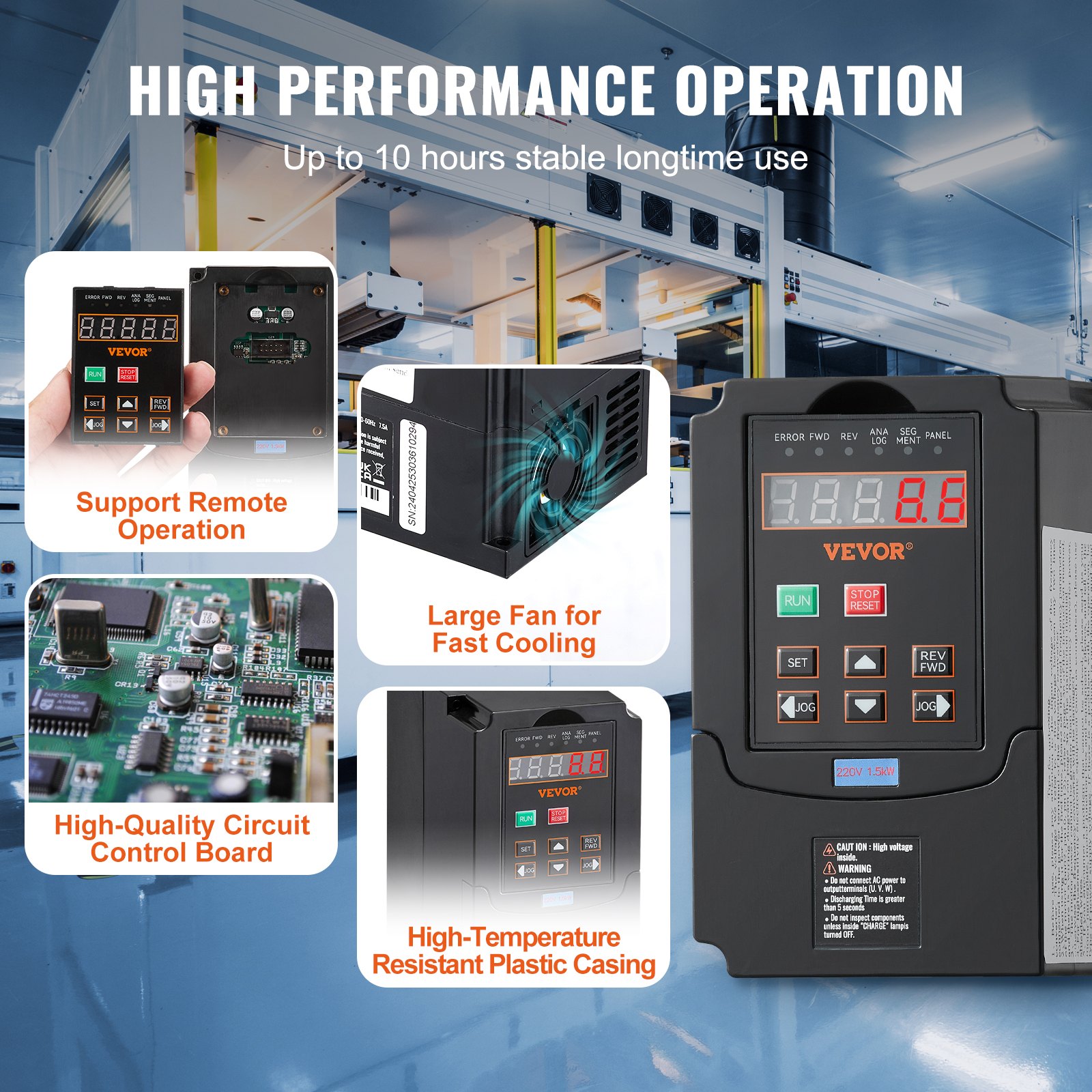

The frequency inverter features an intuitive display and easy-to-use buttons for quick and trouble-free start-up. It also has a detachable control panel that can be connected to the appropriate interface for remote control.

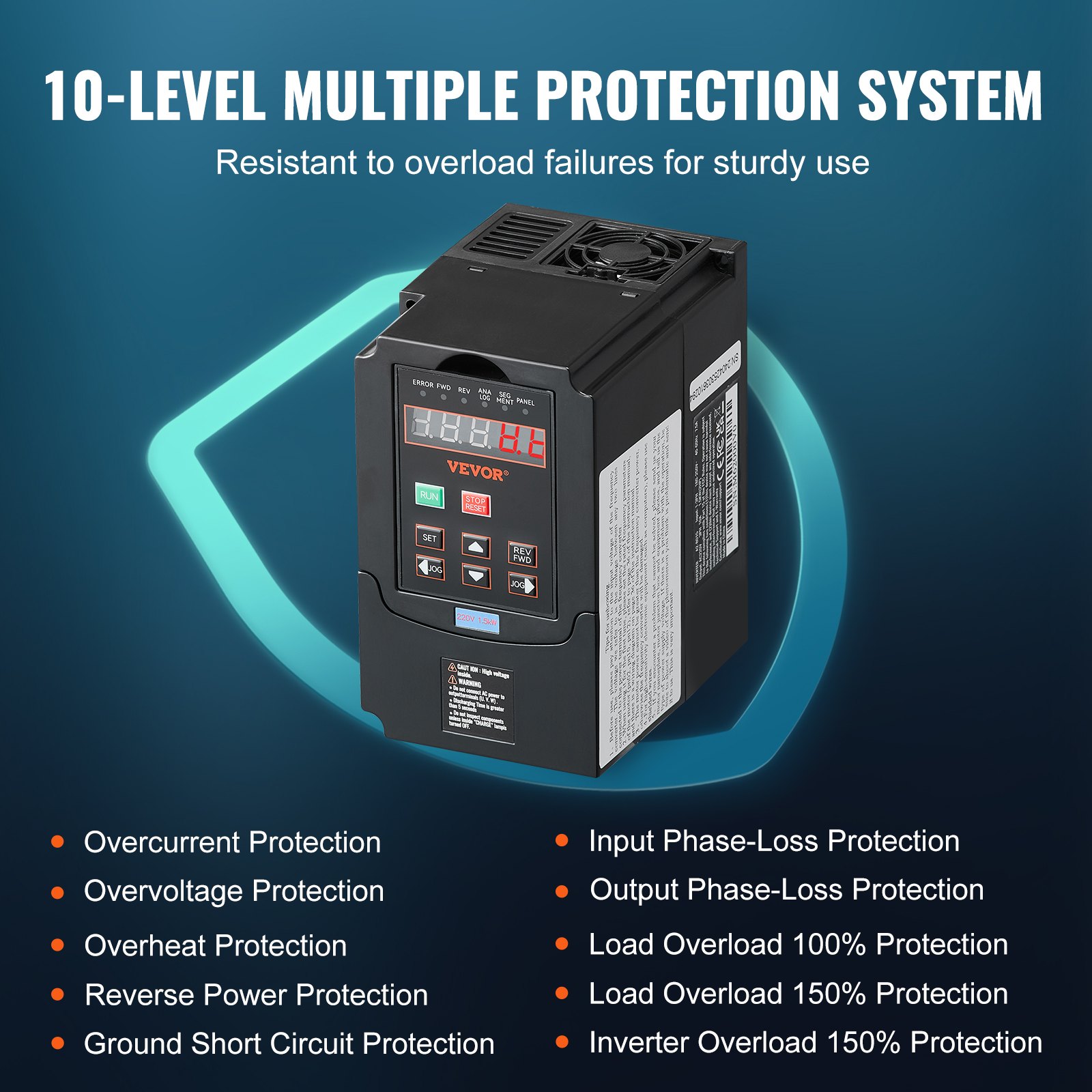

Our VFD is equipped with an intelligent protection system that offers protection against overcurrent, overload, overvoltage, and phase loss. It is primarily constructed of flame-retardant ABS, ensuring high performance and quality from the inside out.

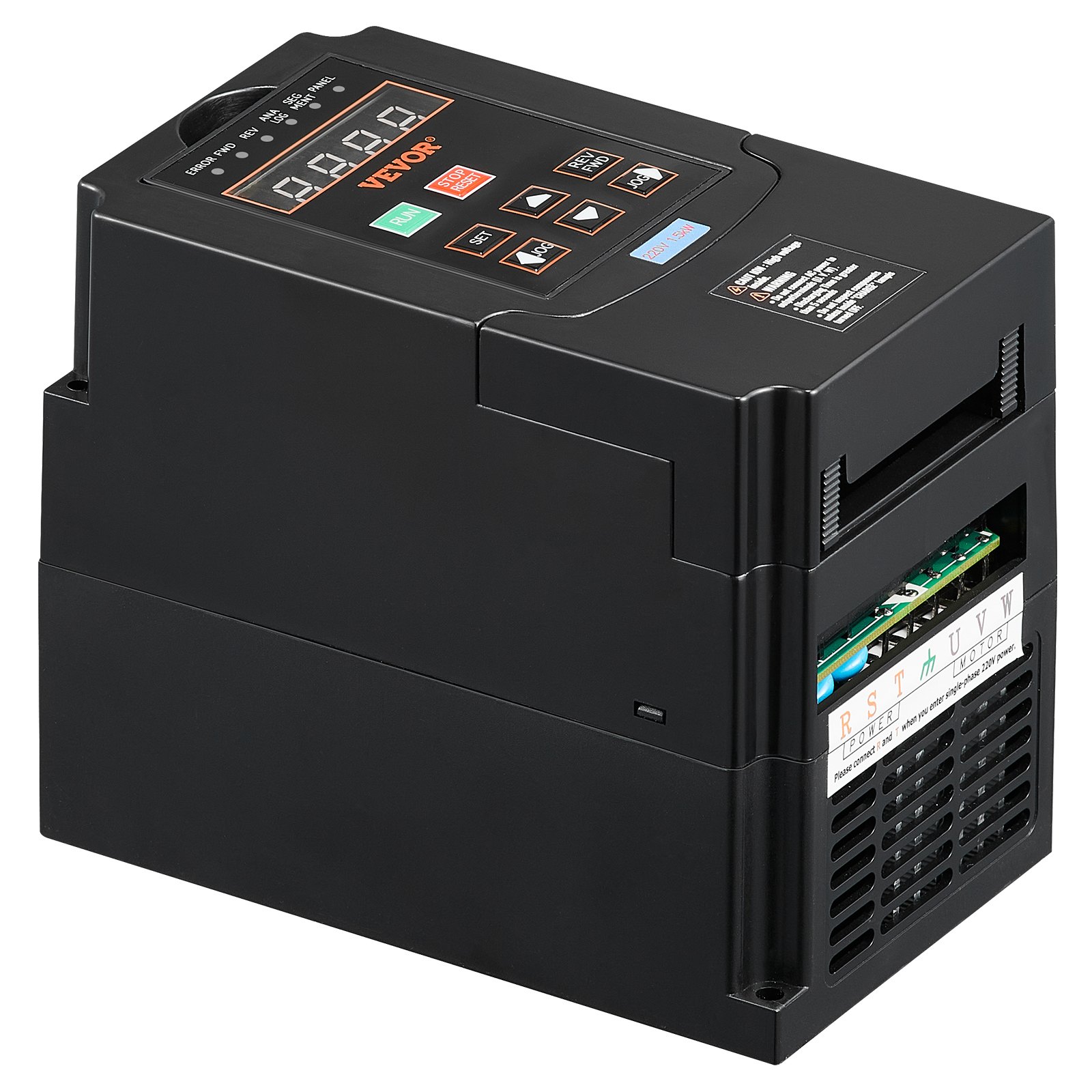

For stable and efficient operation, large cooling fans and a design with multiple heat dissipation holes are required, which prevents overheating and overloading during prolonged operation.
① Turn off the power when connecting cables. ② To protect the VFD, press the red "Stop" button and turn off the power when not in use. ③ Avoid humid or hot environments. ④ You should choose a VFD with higher power.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (5)
Buongiorno , questo inverte va bene per un motore monofase con con condensatore, per essere più chiaro ho in motore con tre fili: fase, neutro, e il terzo filo ho un condensatore poi collegato alla fase
Non posso.
L'uscita dell'inverter può essere utilizzata solo per motori asincroni trifase.
By vevor
Helpful
(
0
)
Salve , volevo sapere se va bene per un motore asincrono monofase 220v,e se la coppia è costante, grazie
No, non è adatto per motori asincroni monofase da 220 V.
By vevor
Helpful
(
0
)
Buongiorno,
volevo chiedere se questo inverte va bene per pilotare questo elettro mandrino (VEVOR 1.5KW Motore per Mandrini Raffreddato ad Aria Milling 220V Motore del mandrino raffreddato a vento), per poi esere montato su una cnc con software mach 3.
Grazie e buona giornata
Sì, sono compatibili.
By vevor
Helpful
(
0
)
Nella confezione sono compresi il connettore e il cavo schermato per connetterlo al VFD?
Non compreso, ad eccezione dell'inverter e del manuale, non sono presenti altri accessori nella confezione.
By vevor
Helpful
(
0
)
Buongiorno chiedevo se l'uscita trifase è regolabile in quanto dovrei alimentare un motore trifase 195v 800w 290hz.
Grazie
Sì, questo prodotto può essere utilizzato in questo modo.
By vevor
Helpful
(
0
)
