Features & Details

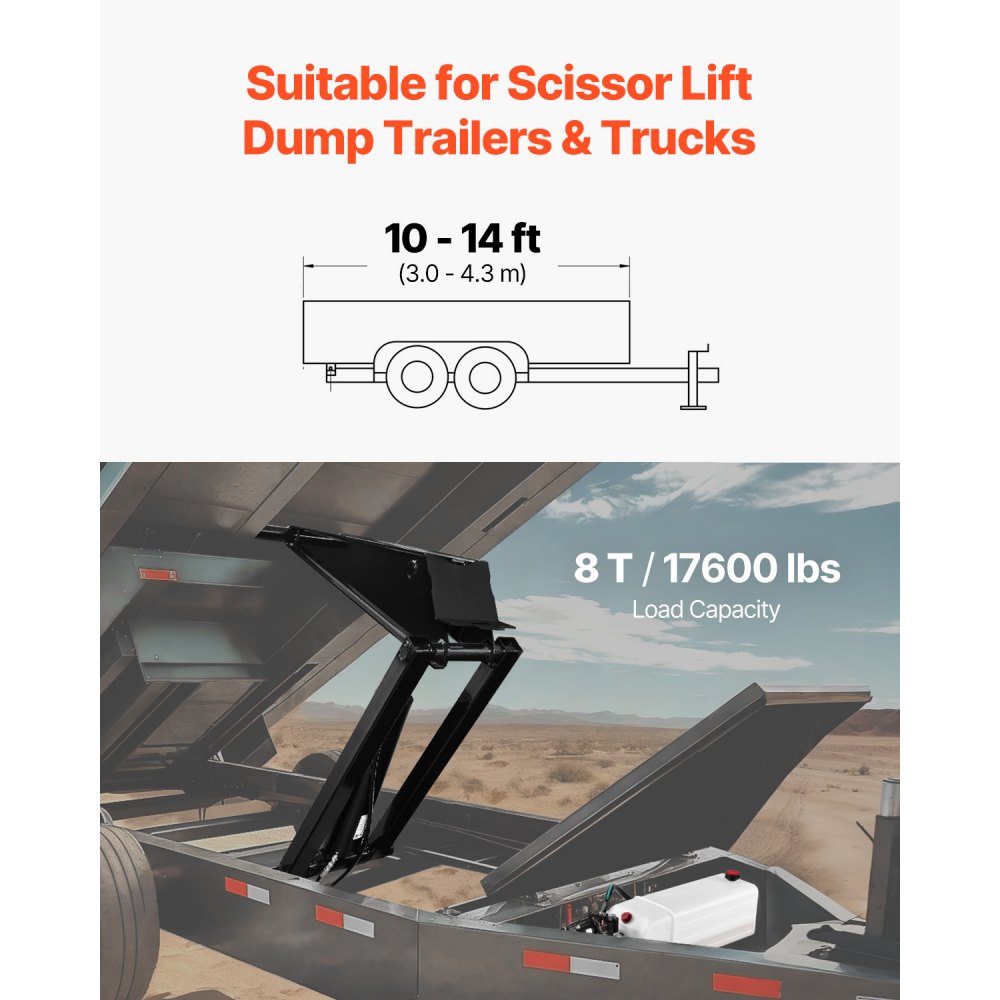

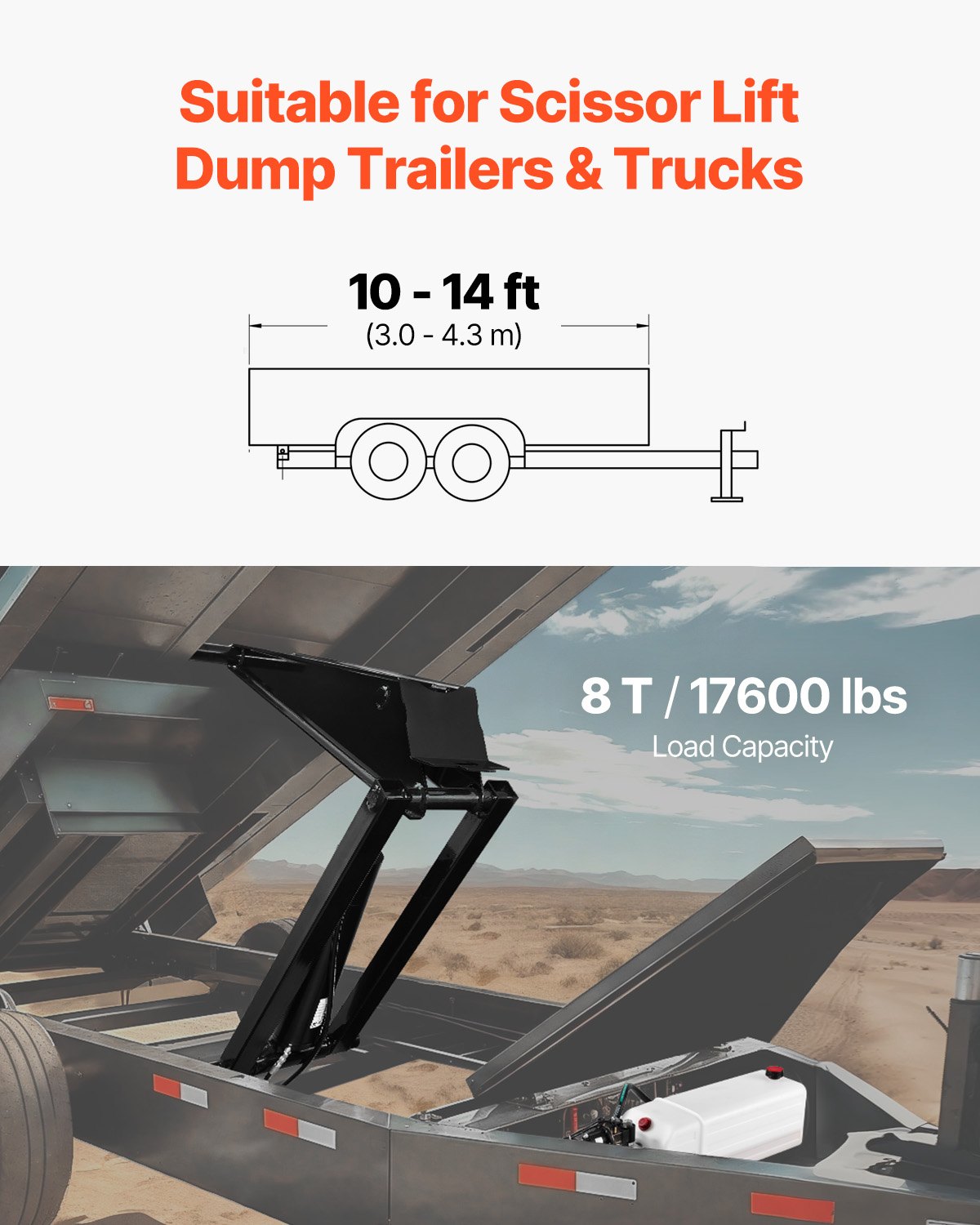

- Heavy-duty lifting: This truck tipper kit is specifically designed for hydraulic scissor lifts and is suitable for tipper trailers and trucks from 10 to 14 feet (3048-4267 mm) in length. It has a total lifting capacity of 17,600 lbs (8 t), including cargo and loading platform. It is ideal for various heavy-duty lifting applications, such as agricultural transport, construction equipment, and vehicle transport.

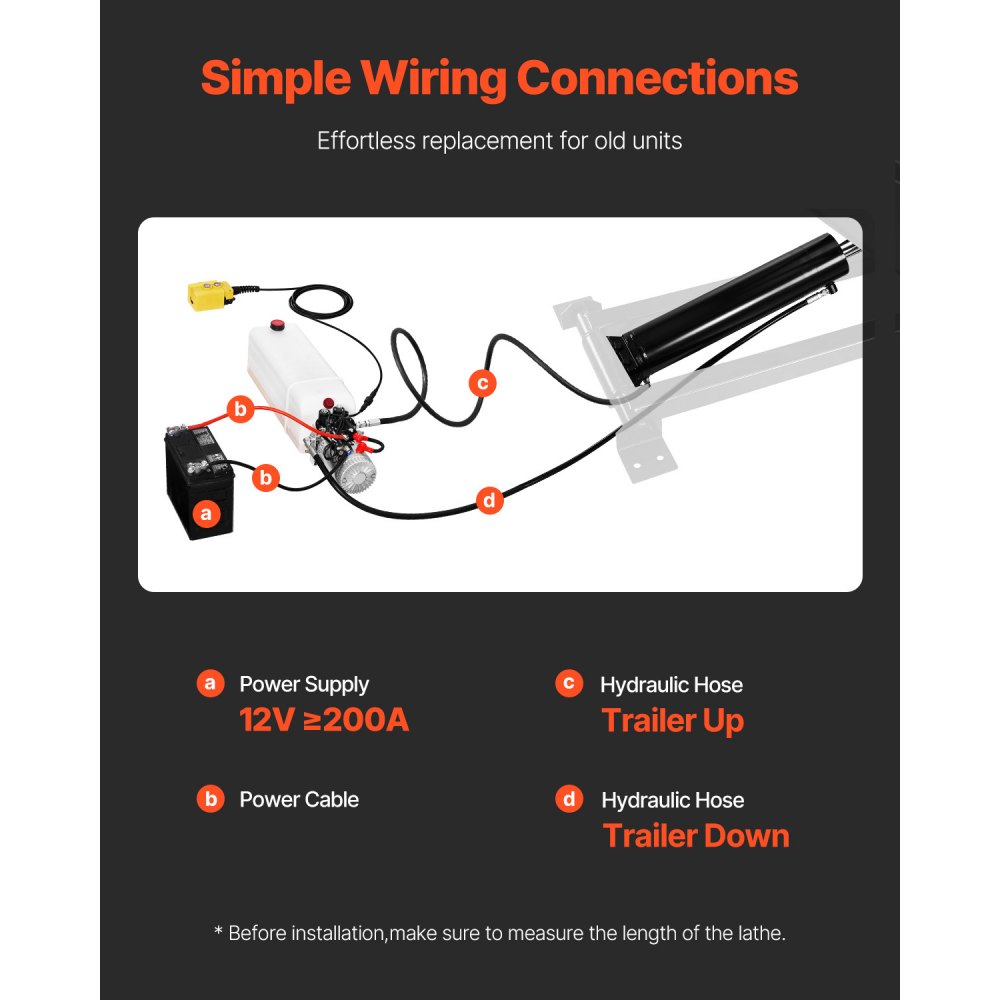

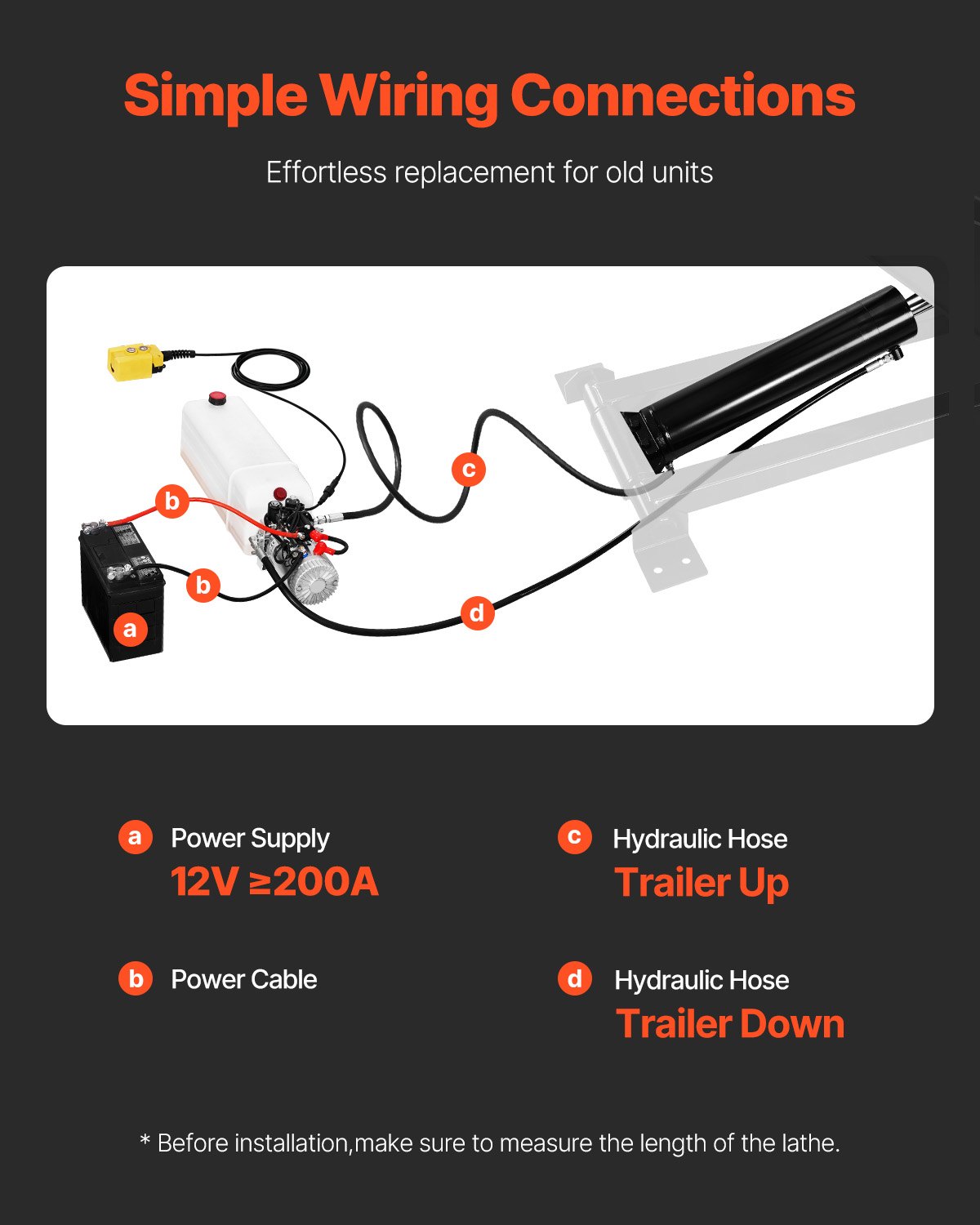

- Efficient & smooth: The 8 QT (7.6 L) hydraulic pump in this dumper kit features a double-acting system, allowing remote control of raising and lowering the dumper. This ensures smooth and fast operation, reducing time and effort. It is more efficient than single-acting pumps that rely on weight for slow descent. It can be easily powered by a 12V vehicle power source.

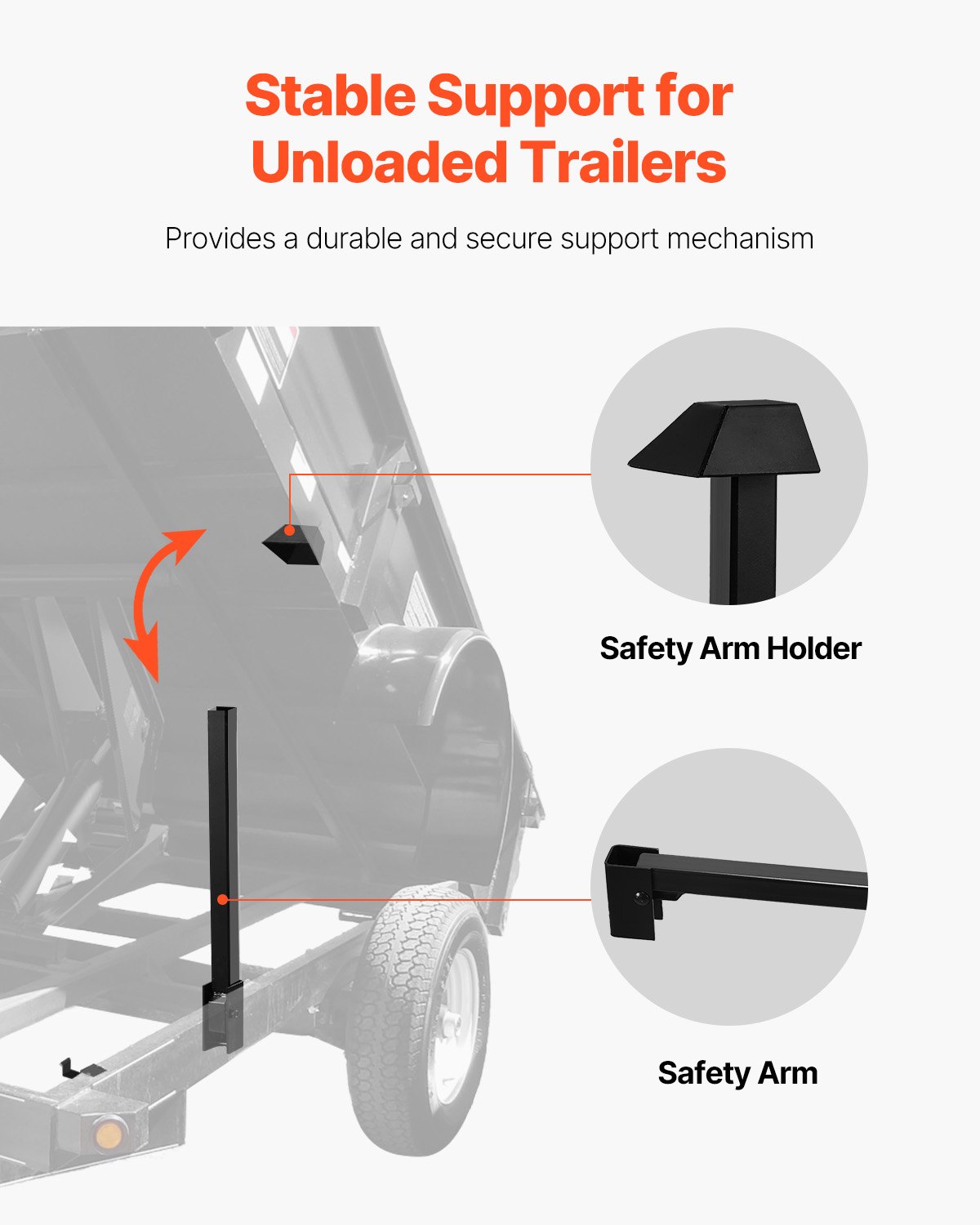

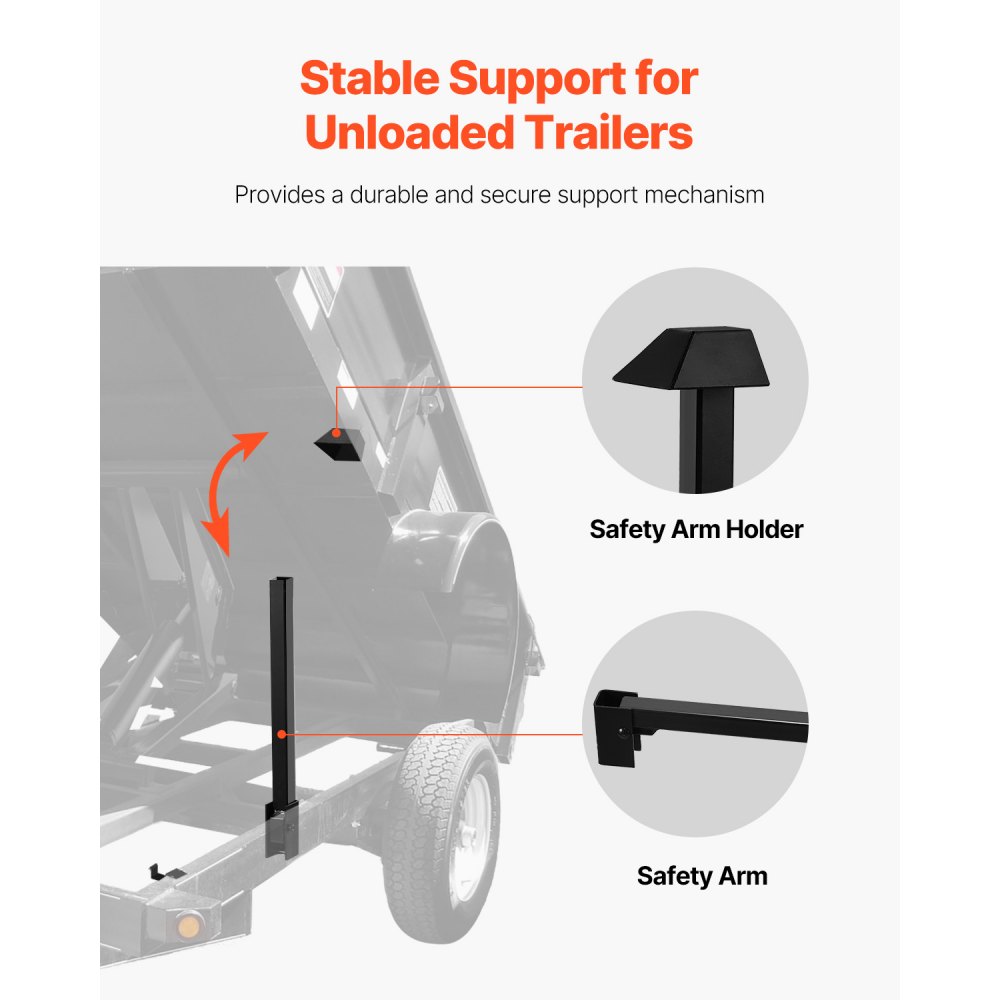

- Safety first: This hydraulic tipping lift set ensures safe operation with a safety arm that provides stable support when unloading the trailer, avoids the risk of accidental lowering and minimizes operational risks.

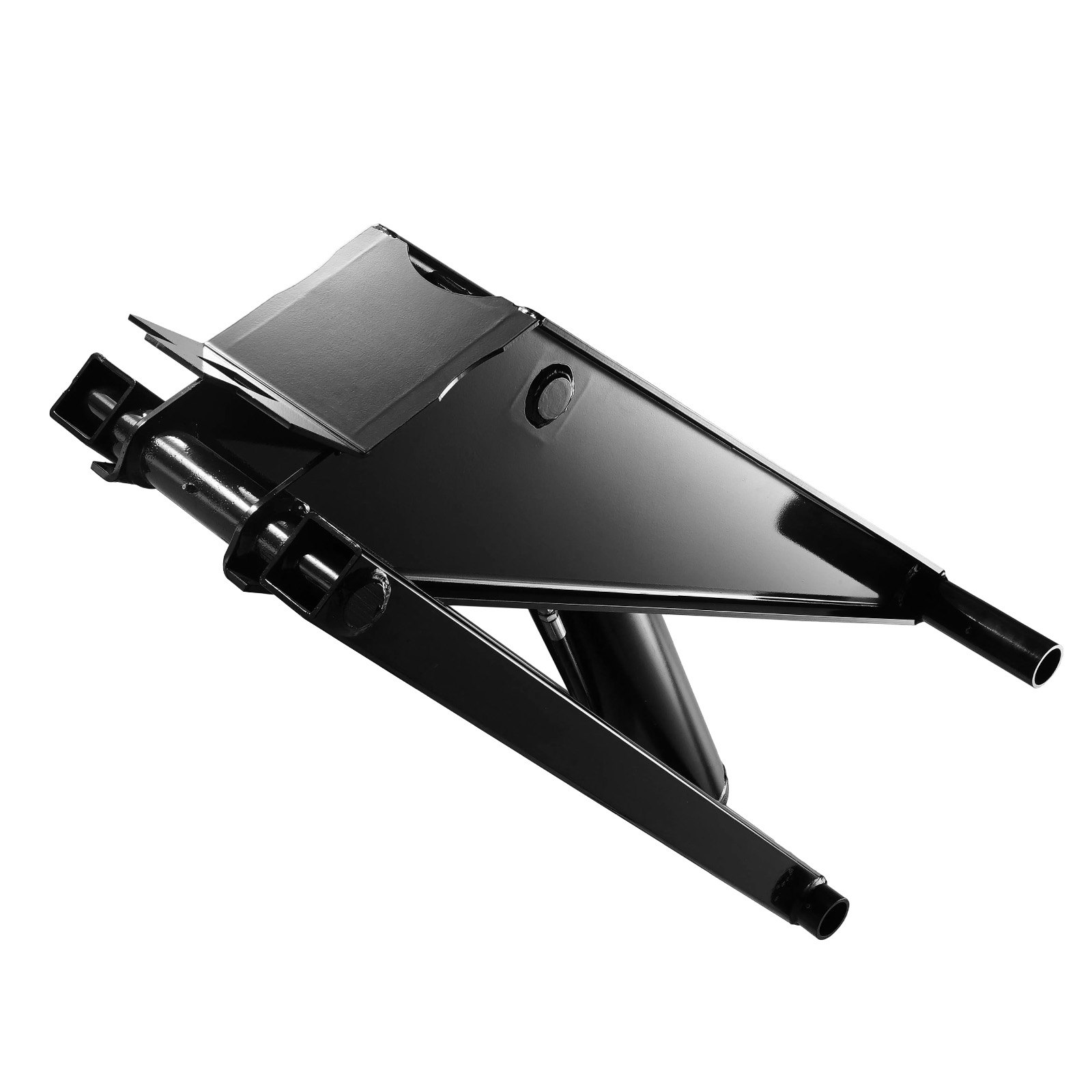

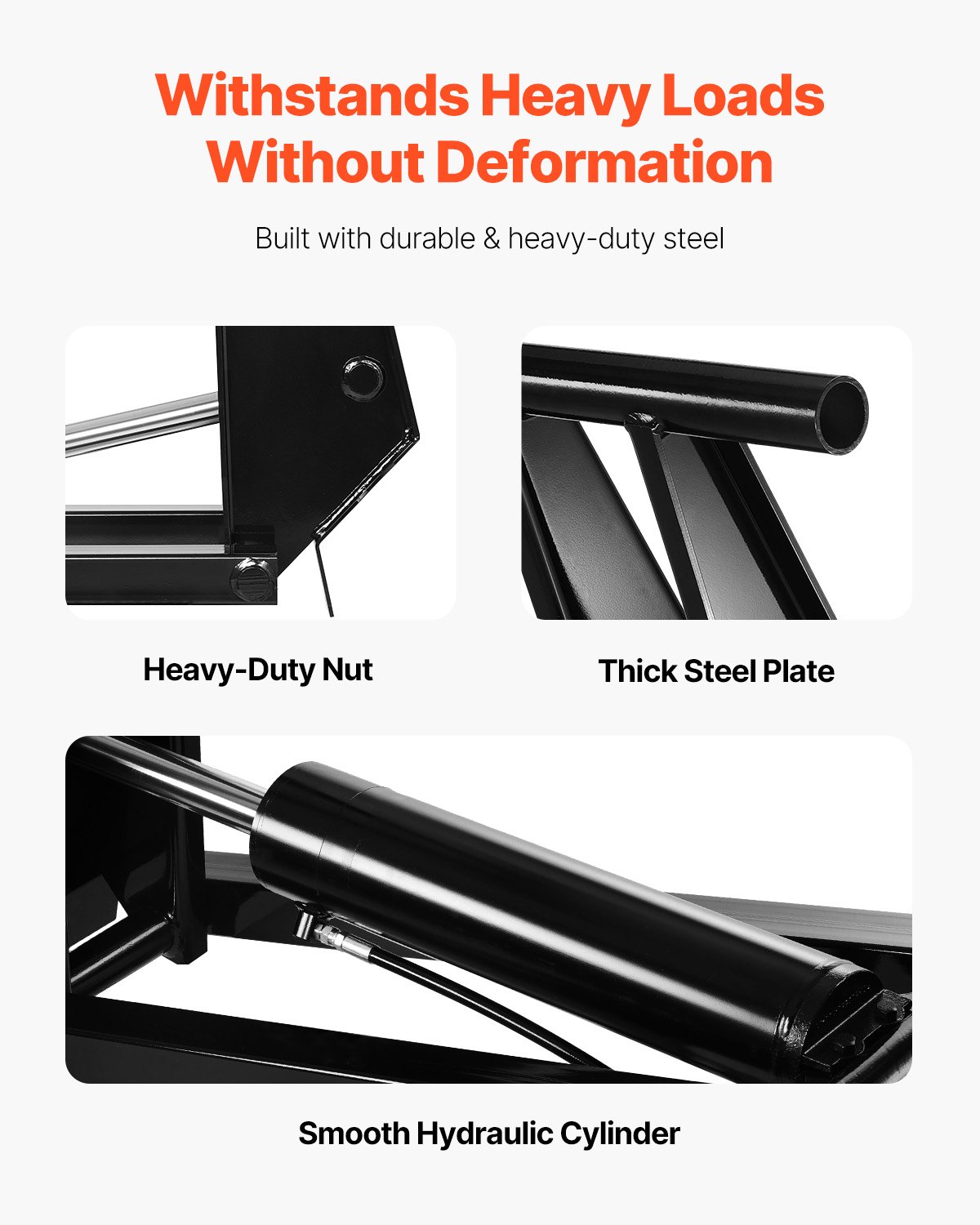

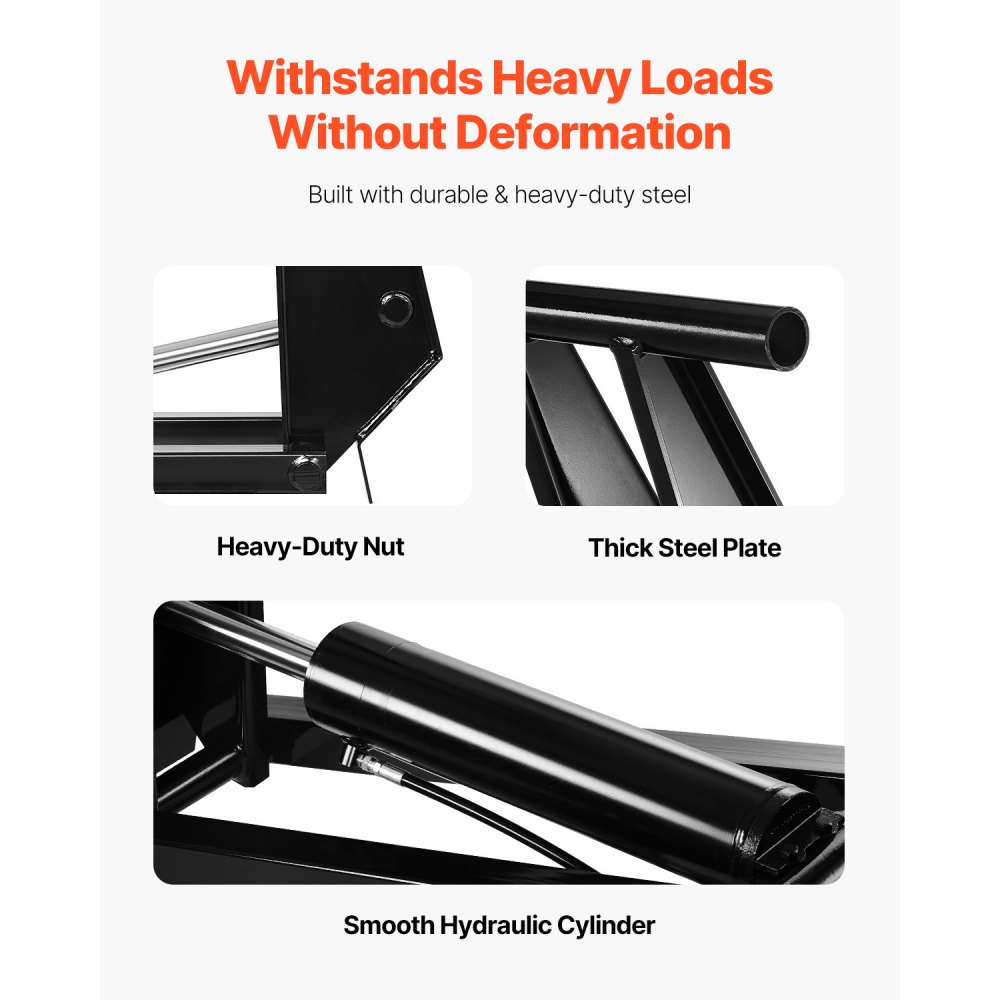

- Robust and durable: This hydraulic scissor lift for tipper trailers is made from high-quality materials. The lifting components are constructed of high-strength steel to withstand heavy loads and impacts, as well as deformation and weathering. The plastic oil tank ensures stability under all conditions.
- Easy to maintain: To maintain sufficient lifting capacity and prevent breakdowns, it is recommended to service this hydraulic tipping bed kit every six months. This includes replacing the hydraulic oil and lubricating the lifting connections. Installation requires welding and lifting.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item

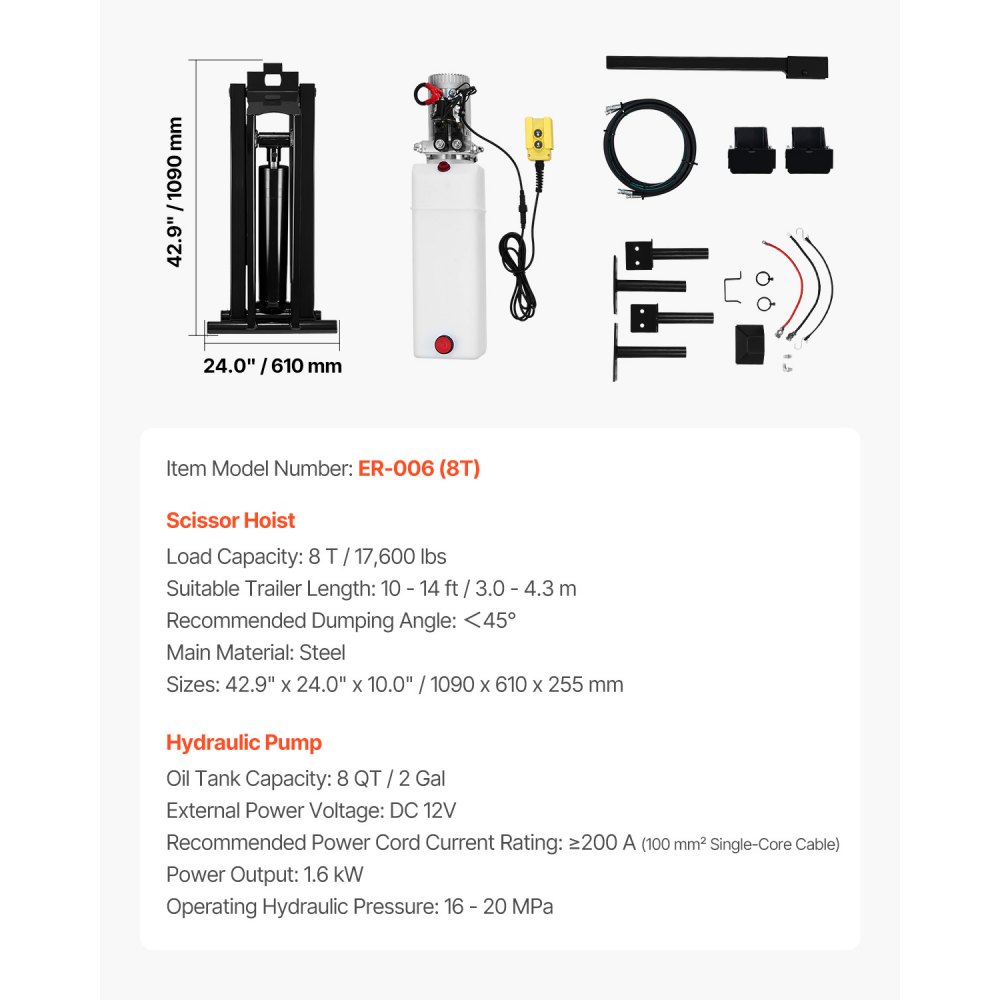

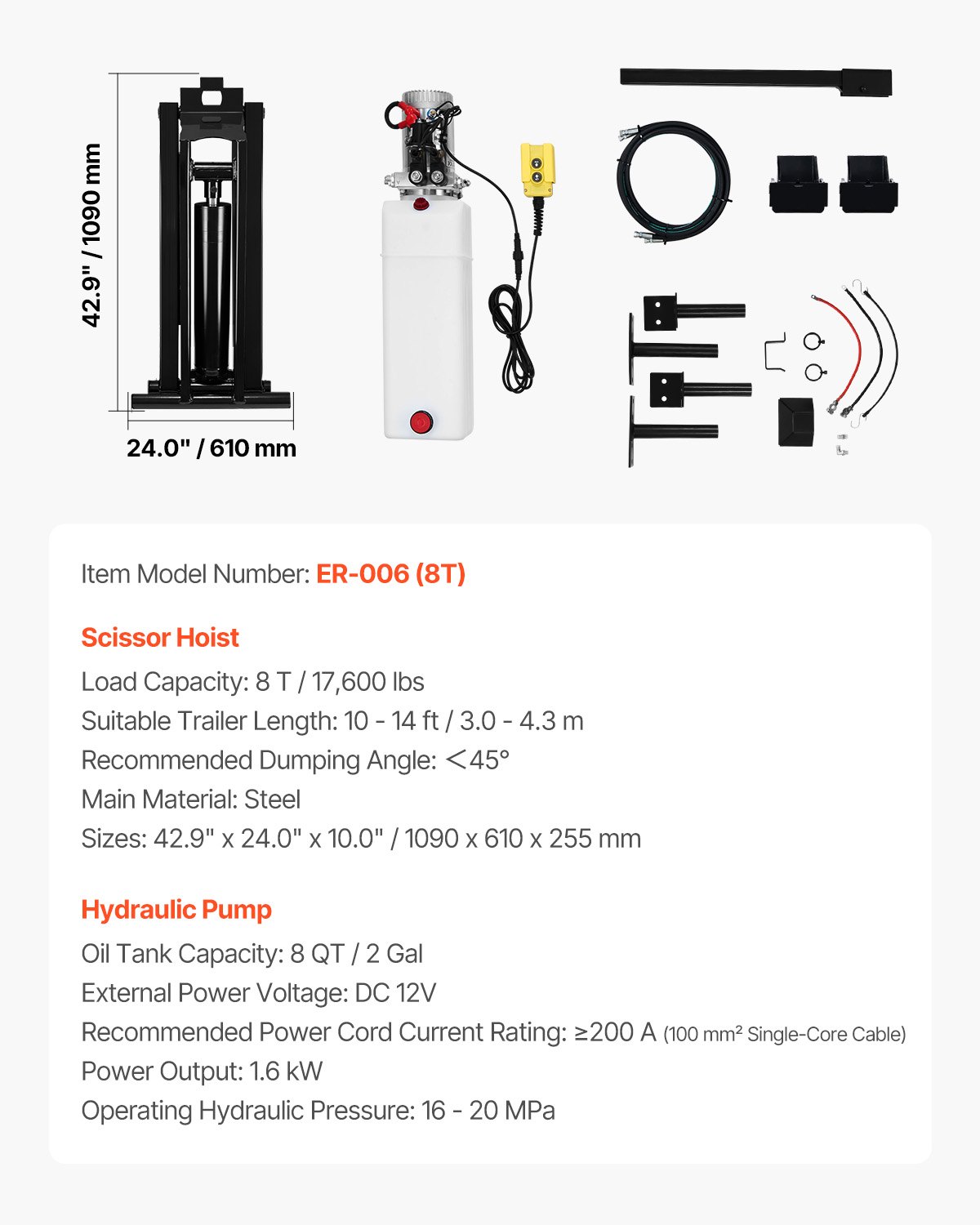

Product specification
- Item model number
- ER-006 (8T)
- Load capacity
- 8 t / 17,600 lbs
- External power supply
- DC 12 V
- Suitable trailer length
- 10-14 feet / 3048-4267 mm
- Capacity of the building's power cable
- ≥200 A (single-core cable with 100 mm²)
- Hydraulic oil tank capacity
- 8 QT / 7.6 L
- Power output
- 1.6 kW
- Hydraulic operating pressure
- 16-20 MPa
- Flow rate
- 1.45 GPM
- Maximum release pressure
- 3200 PSI / 22 MPa
- Oil tank material
- PP plastic
- Main body plate thickness
- 0.3 inches / 8 mm
- Maximum body tilt angle
- 120°
- Recommended tilt angle
- <45°
- Main material
- Steel
- Net weight
- 335.1 lbs / 152 kg
- Product dimensions
- 42.9 x 24.0 x 10.0 inches / 1090 x 610 x 255 mm
Description

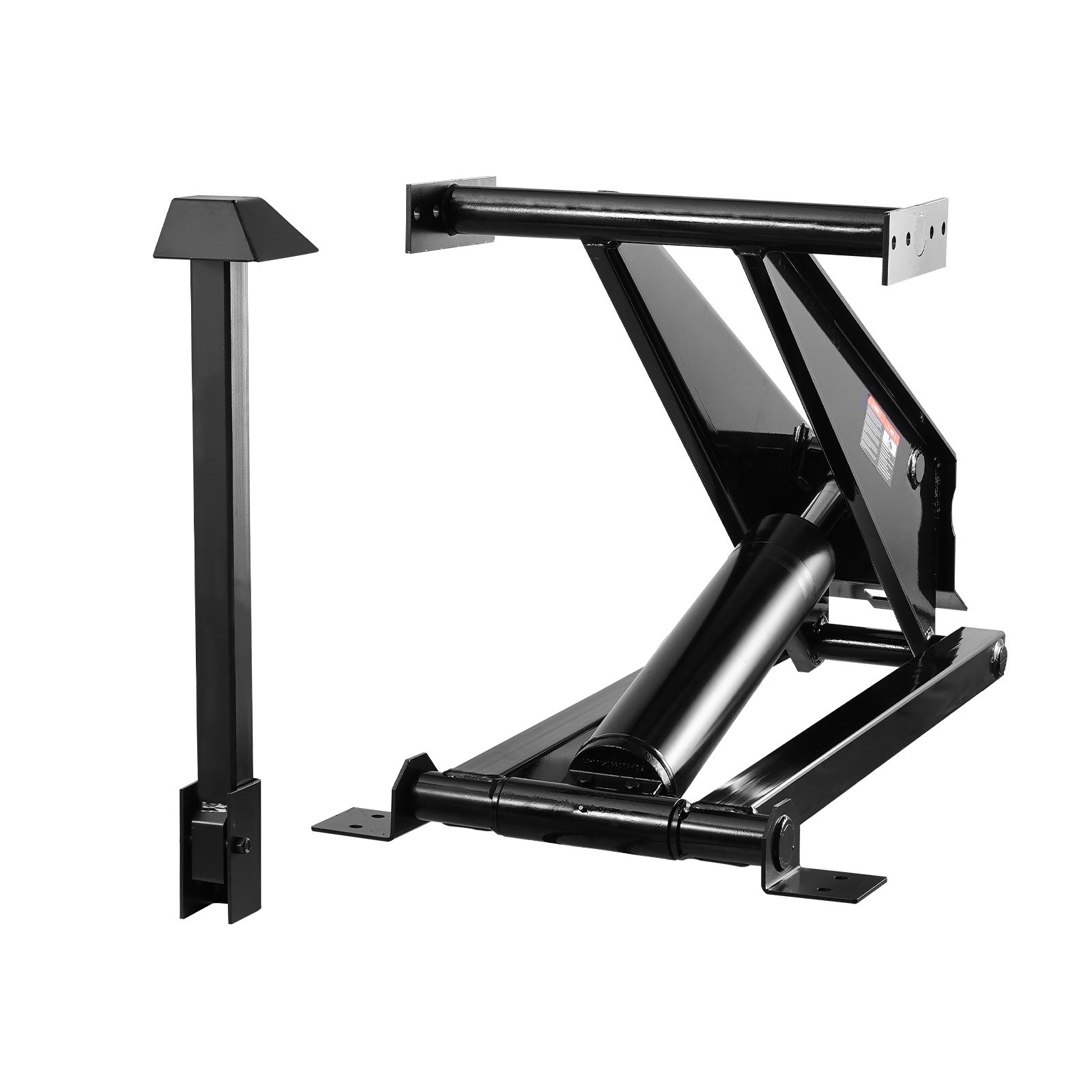

Easy maintenance or self-assembly of a safe tipping trailer
Our hydraulic tipping device was developed for dump trucks and trailers with a length of 3048 to 4267 mm and is ideally suited as a replacement for the hydraulic lifting devices of large scissor tippers. It can lift up to 8 t including load and loading platform.

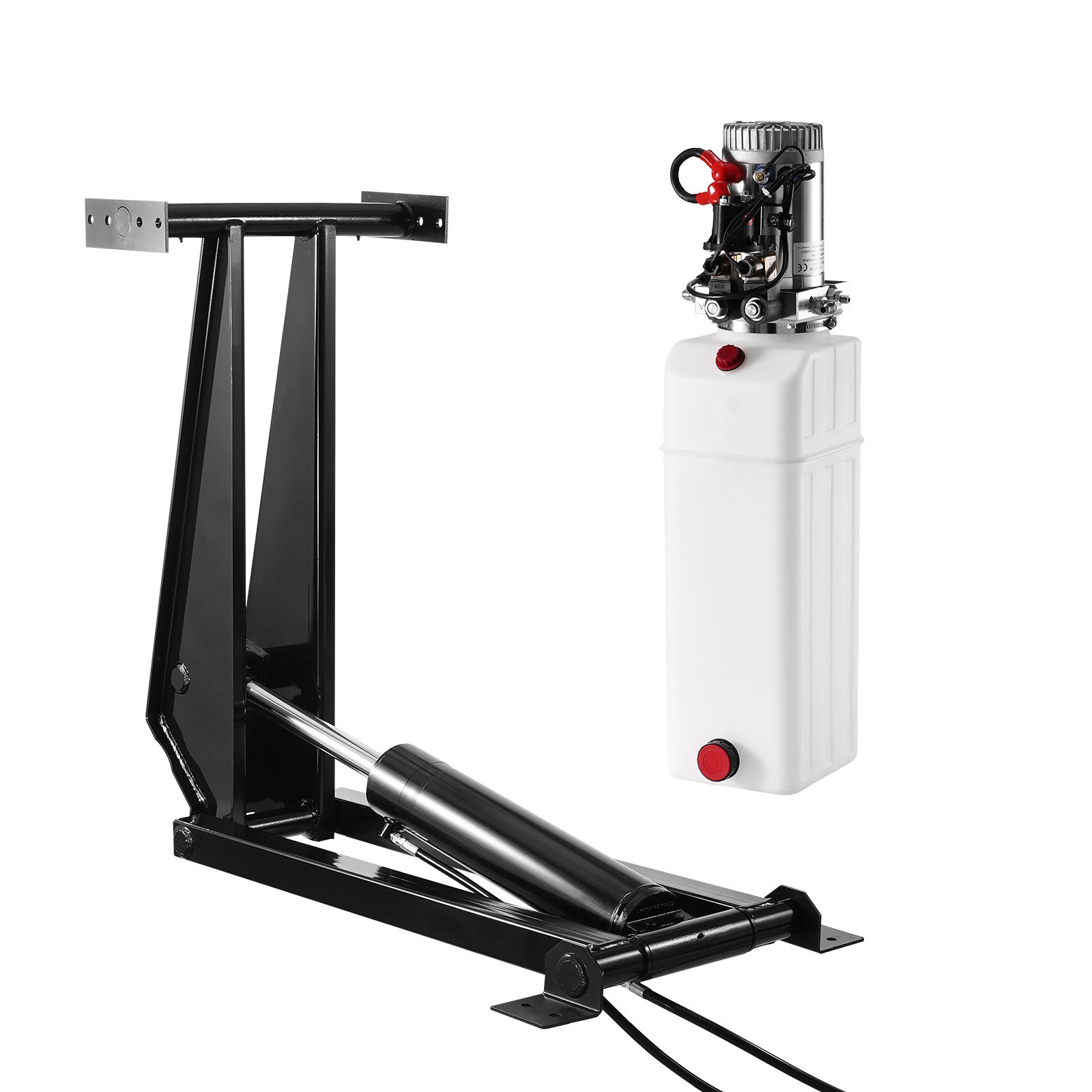

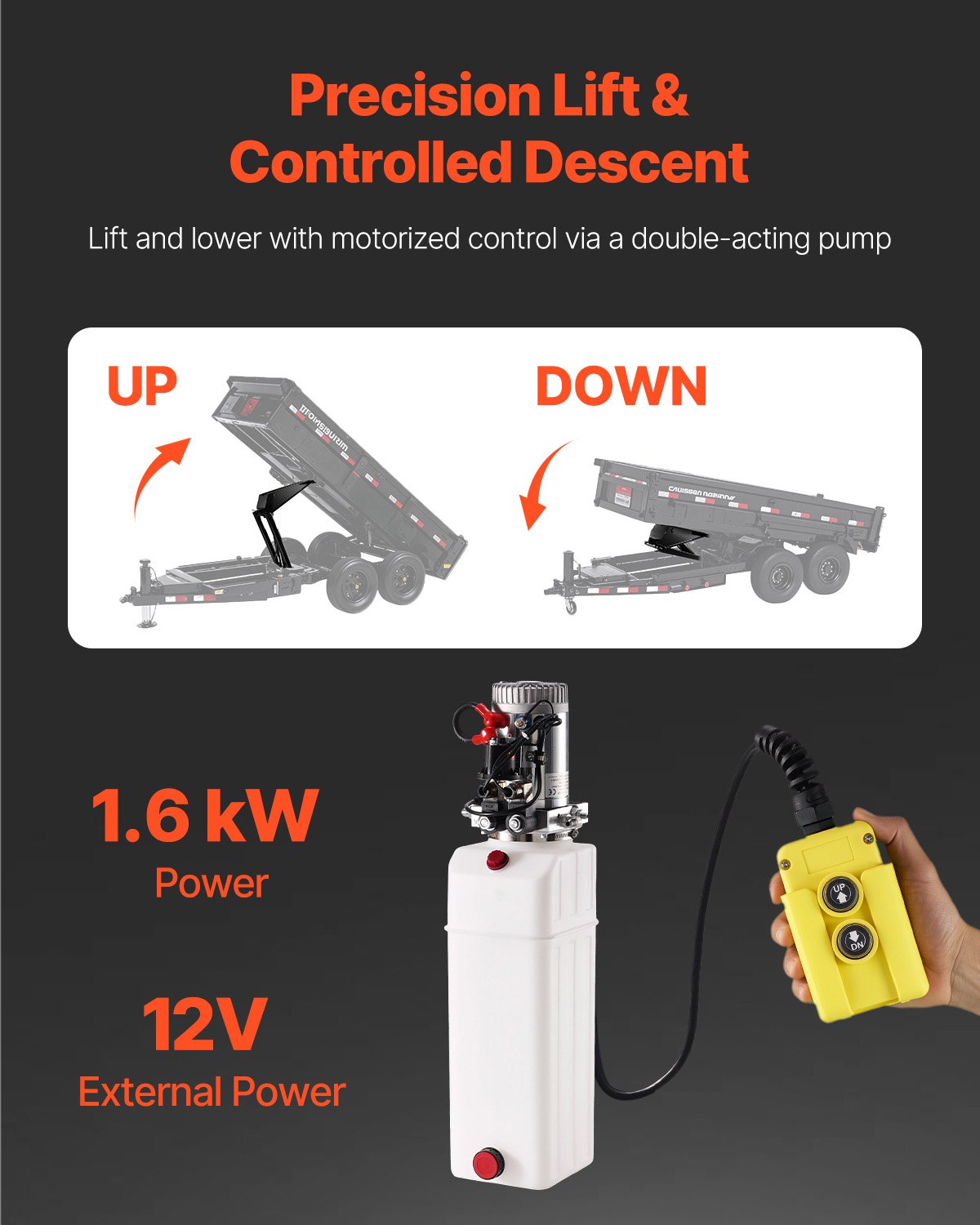

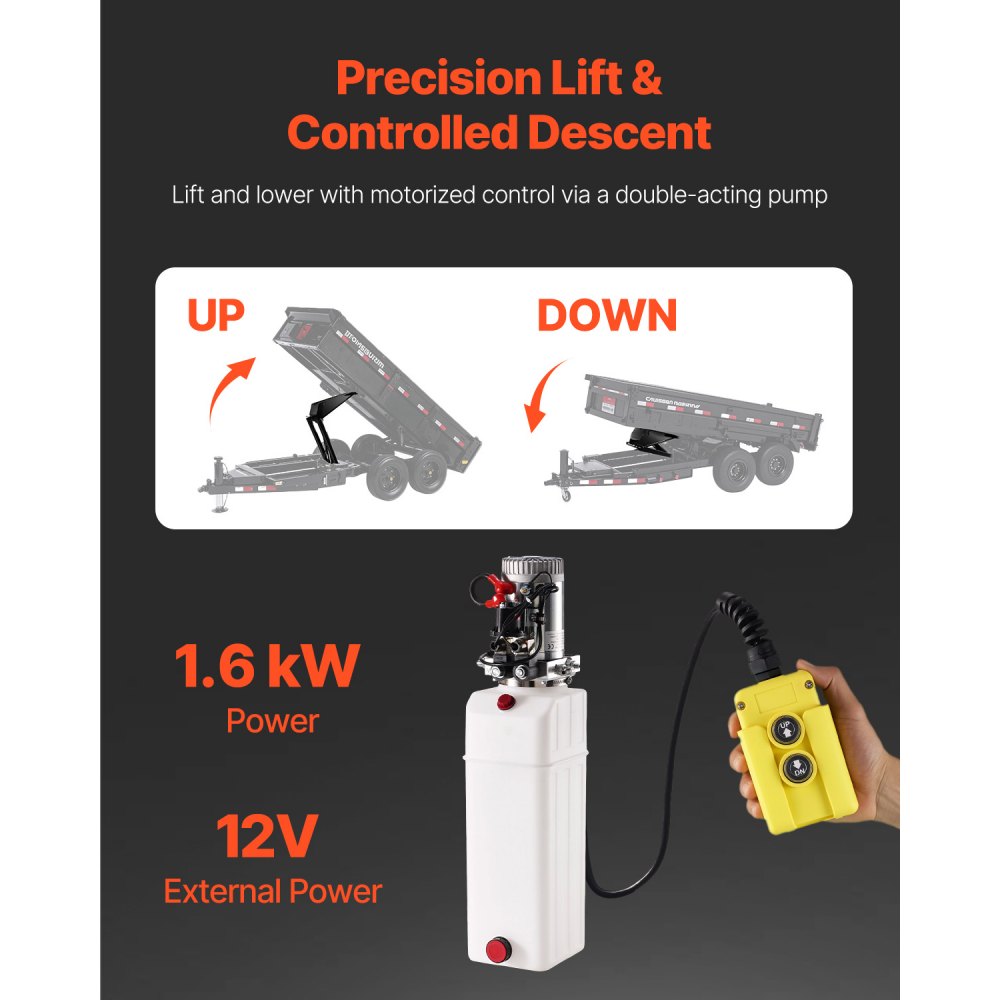

This hydraulic tipper is equipped with a double-acting hydraulic pump, enabling motor-controlled lifting and lowering. Powered by a high-performance 12V DC motor, it offers quick start-up and rapid oil delivery.
It must also be folded up during maintenance, assembly and service work to prevent unintentional falling, which could lead to serious injuries, and to ensure operational safety.
The durable plastic oil tank is leak-proof and wear-resistant, and the unit is equipped with a powerful motor. High-strength structural steel ensures that the unit does not deform even under heavy loads.

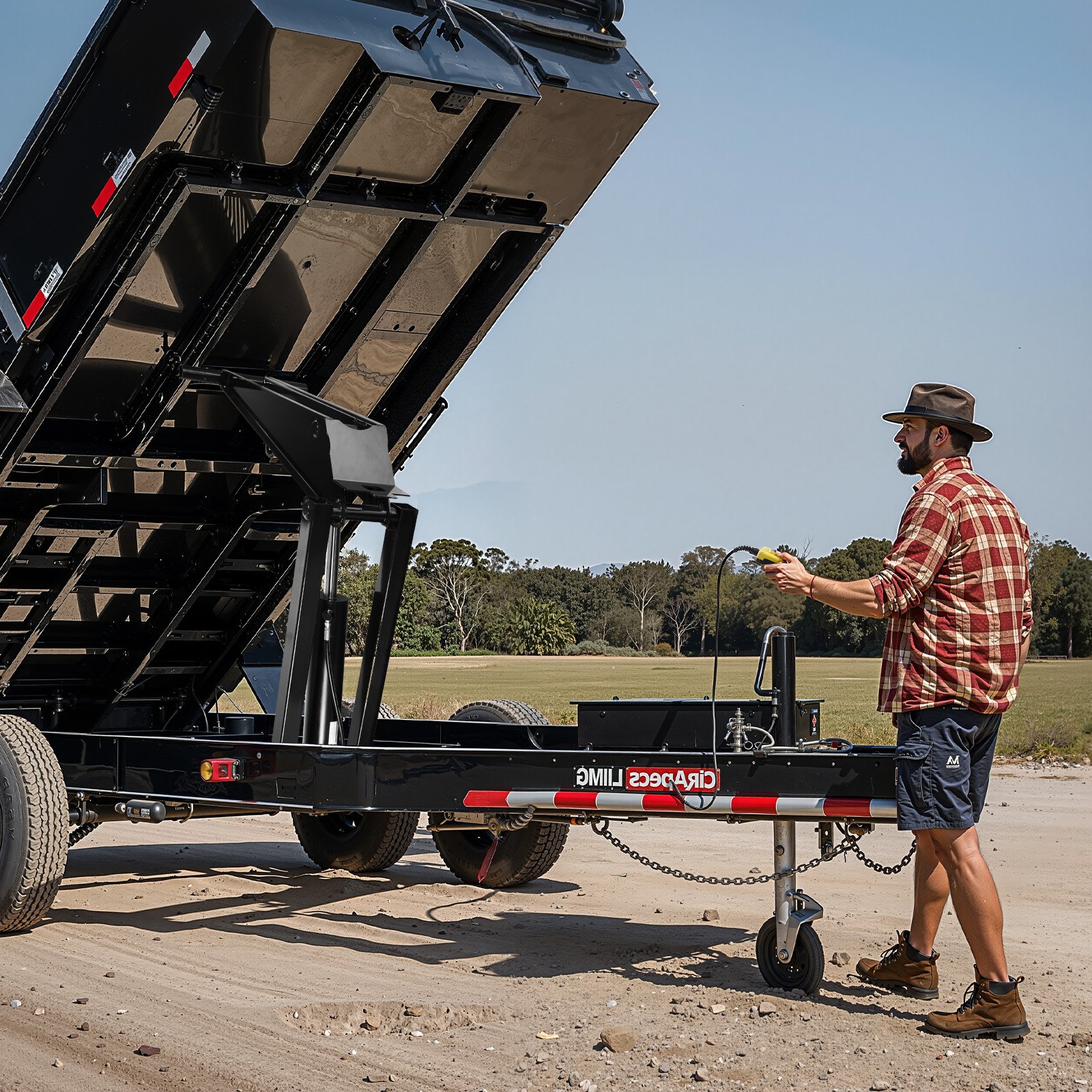

This tipping body is mounted at the rear of the tipper trailer and allows for the easy handling of various materials such as construction debris, soil, gravel, and mulch. This versatility makes it a valuable tool for transporting materials and equipment.
