VEVOR Door Closer, Easy Self-Installation SW100, 220V, Indoor and Outdoor, Opening Angle, Rod Door Closer, Door Spring, Automatic with Remote Control, 50W, 120 Degree Max
5 4 Reviews
259 90 €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now
Features & Details
- 【INTELLIGENT DOOR OPENER】 - Mains voltage: 110-240 VAC (+/- 10%); Power consumption: 50W; Product size: 20.5 x 3.7 x 3.2 inches (52.1 x 9.4 x 8.1 cm); The automatic door opener is made of an aluminum alloy and a stainless steel shell with a cast iron and aluminum alloy bracket, making it corrosion, rust, and scratch resistant. The SW100 swing door opener can support a door weight of 100 kg (220.46 lbs).
- 【INTERFERENCE-FREE SENSOR】 - The 24G sensor features an optimized detection control circuit that enables highly sensitive microwave induction within a 3m range. The door opener sensor is characterized by interference suppression, pinch protection, and stable operation.
- 【WIRELESS REMOTE CONTROL】 - The two multi-function remote controls work directly with the microcomputer control unit. The four door opening modes can be set according to your preferences. The 315 MHz remote controls allow a remote sensing range of 10 m.
- 【EASY INSTALLATION】 - The automatic swing door opener offers easy installation and good safety. Detailed instructions are provided. You can also choose the appropriate arm according to your different needs, e.g., pull or push arm. Door width range: max. 120 cm; min. 66 cm.
- 【VERSATILE APPLICATION】 - The electric door opener has a maximum opening angle of 120 degrees. It is very suitable for door security in many locations, including supermarkets, fire doors, hospitals, offices, meeting rooms, laboratories, unit doors, etc.
Product specification
- Material Aluminum alloy / Stainless steel / Cast iron
- Mains voltage 110-240 VAC (+/- 10%)
- Motor - Voltage Brushless DC 24V motor
- Power consumption 50 W

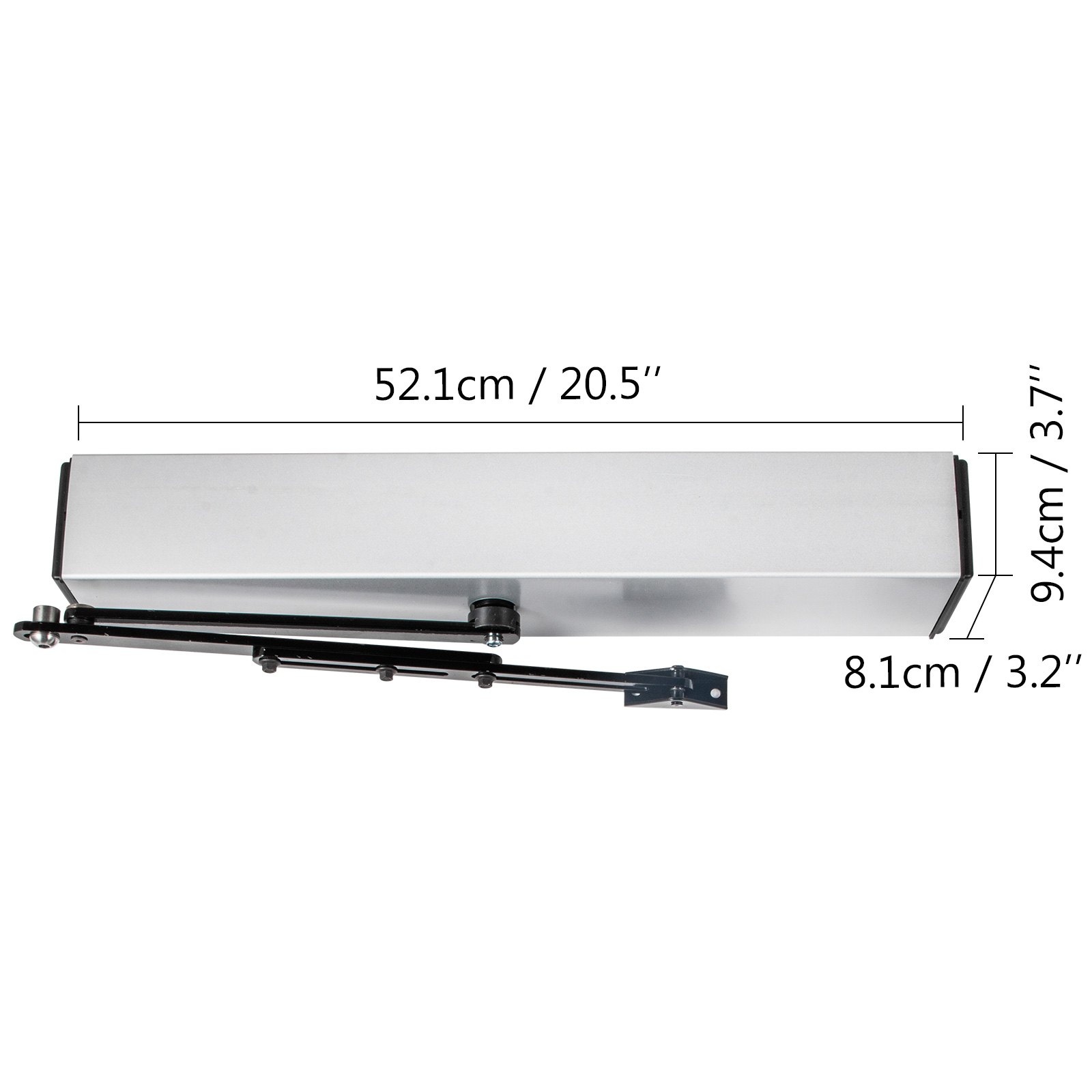

- Product size 52.1 x 9.4 x 8.1 cm / 20.5 x 3.7 x 3.2 inches
- Door width max. 120 cm; Min. 66 cm
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews 5.0
All reviews are from verified purchases
Average rating based on 4 reviews
Reviews 5.0
All reviews are from verified purchases
See all 4 reviews
About this item
Product specification
- Material
- Aluminum alloy / Stainless steel / Cast iron
- Mains voltage
- 110-240 VAC (+/- 10%)
- Motor - Voltage
- Brushless DC 24V motor
- Power consumption
- 50 W
- Product size
- 52.1 x 9.4 x 8.1 cm / 20.5 x 3.7 x 3.2 inches
- Door width
- max. 120 cm; Min. 66 cm
- Maximum opening angle
- 120 degrees
- Item weight
- 10 kg/22 lbs
Description

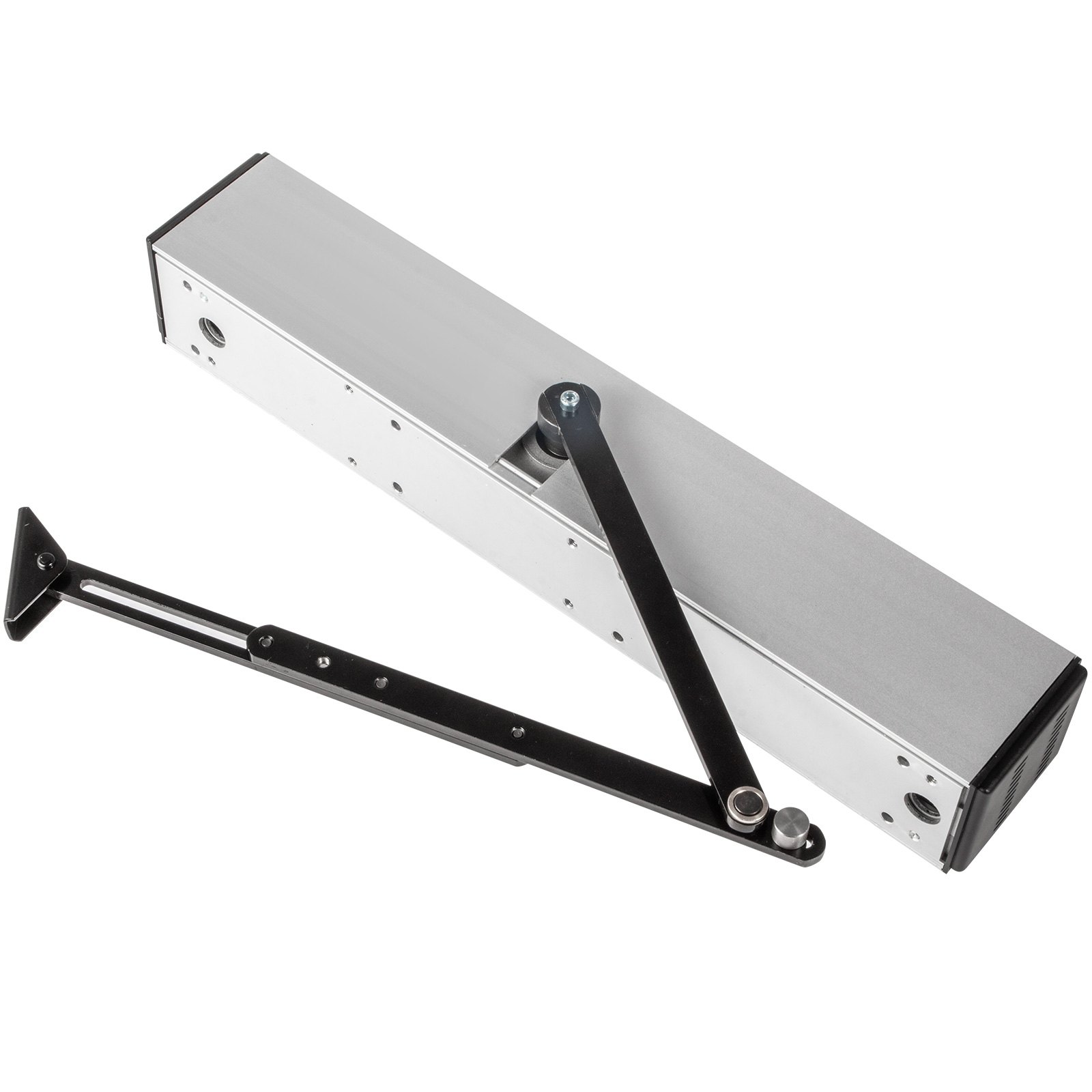

Automatic door closers
This door opener protects your door from damage, being rustproof, wear-resistant, and extremely durable. It is made of an aluminum alloy and stainless steel. The microcomputer control allows you to adjust the door's opening direction. The comprehensive set includes a sensor, two remote controls, two push buttons, and more. It's an essential door opener for your door.
- Smart door opener
- Interference suppression sensor
- Wireless remote control
- Easy assembly

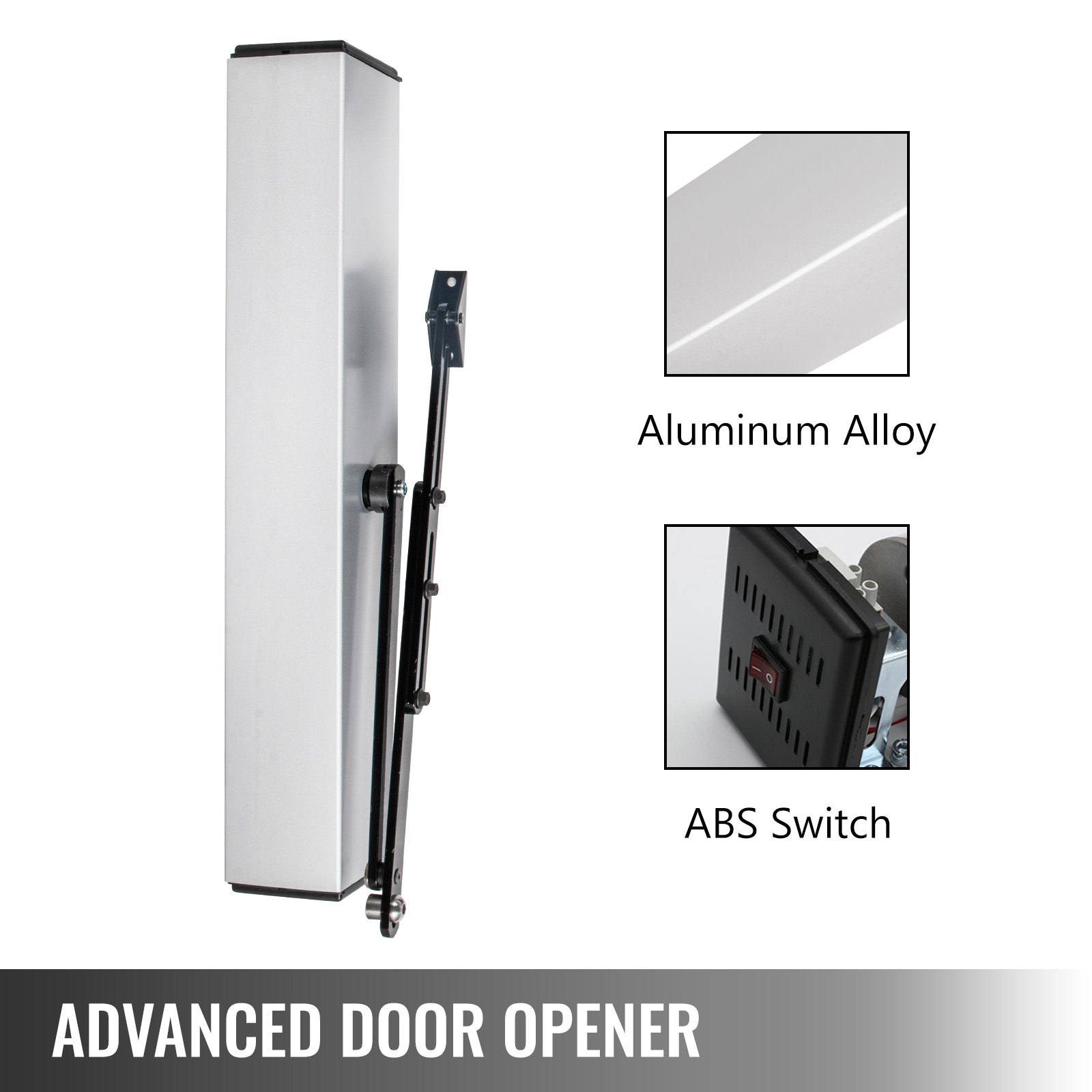

Extended door opener
The automatic swing door opener features an aluminum alloy and stainless steel construction for wear and rust resistance. An ultra-secure and creep-resistant ABS switch is included.

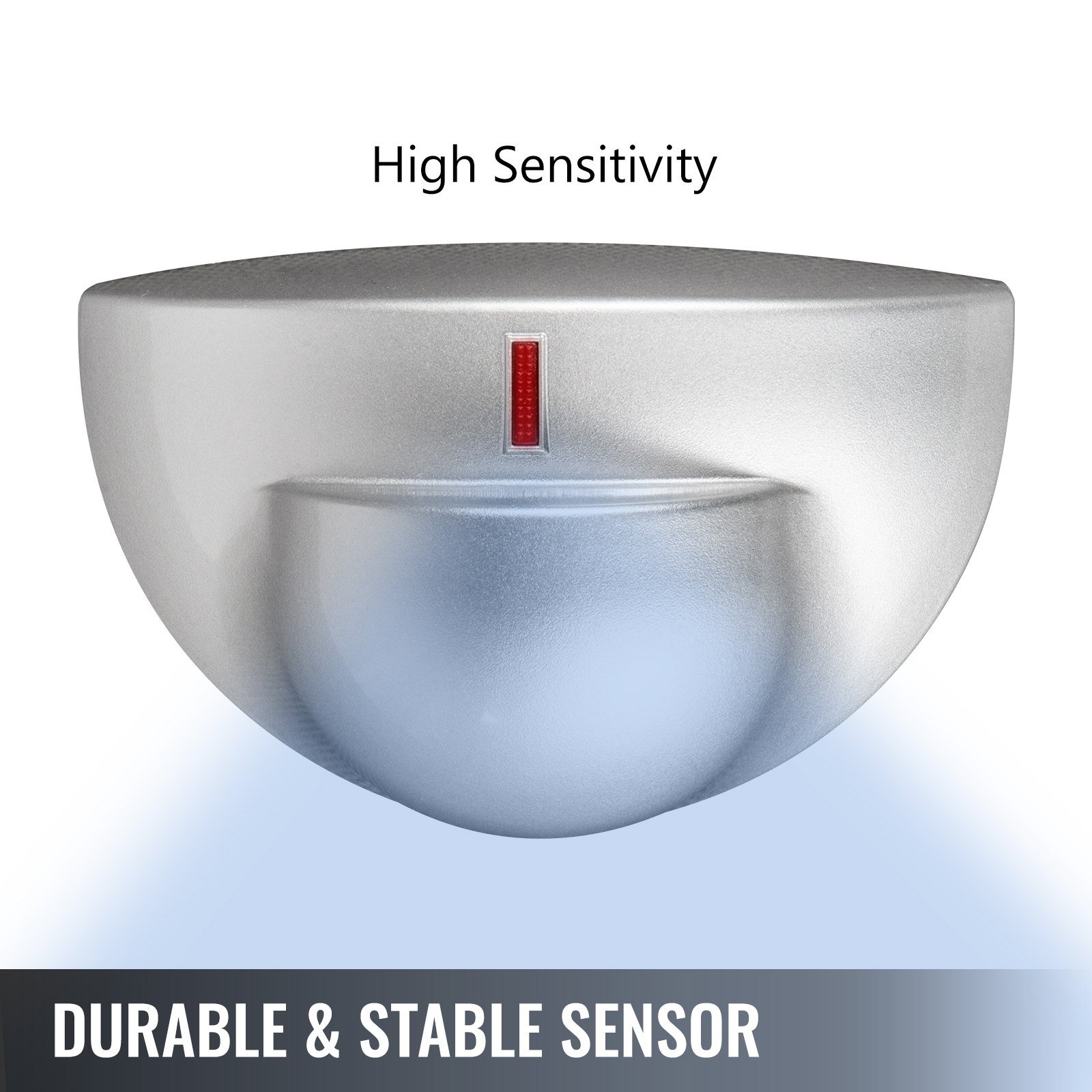

Durable and stable sensor
The electric door opener's sensor can detect movement automatically. It offers fast and reliable detection. The sensor of the swing door opener is unaffected by temperature, altitude, or humidity.
Multifunction remote control
The remote control includes four automatic door models with buttons "A" / "B" / "C" / "D". It can control the sensor switch. It can also directly adjust the speed and force of the door opening and closing.

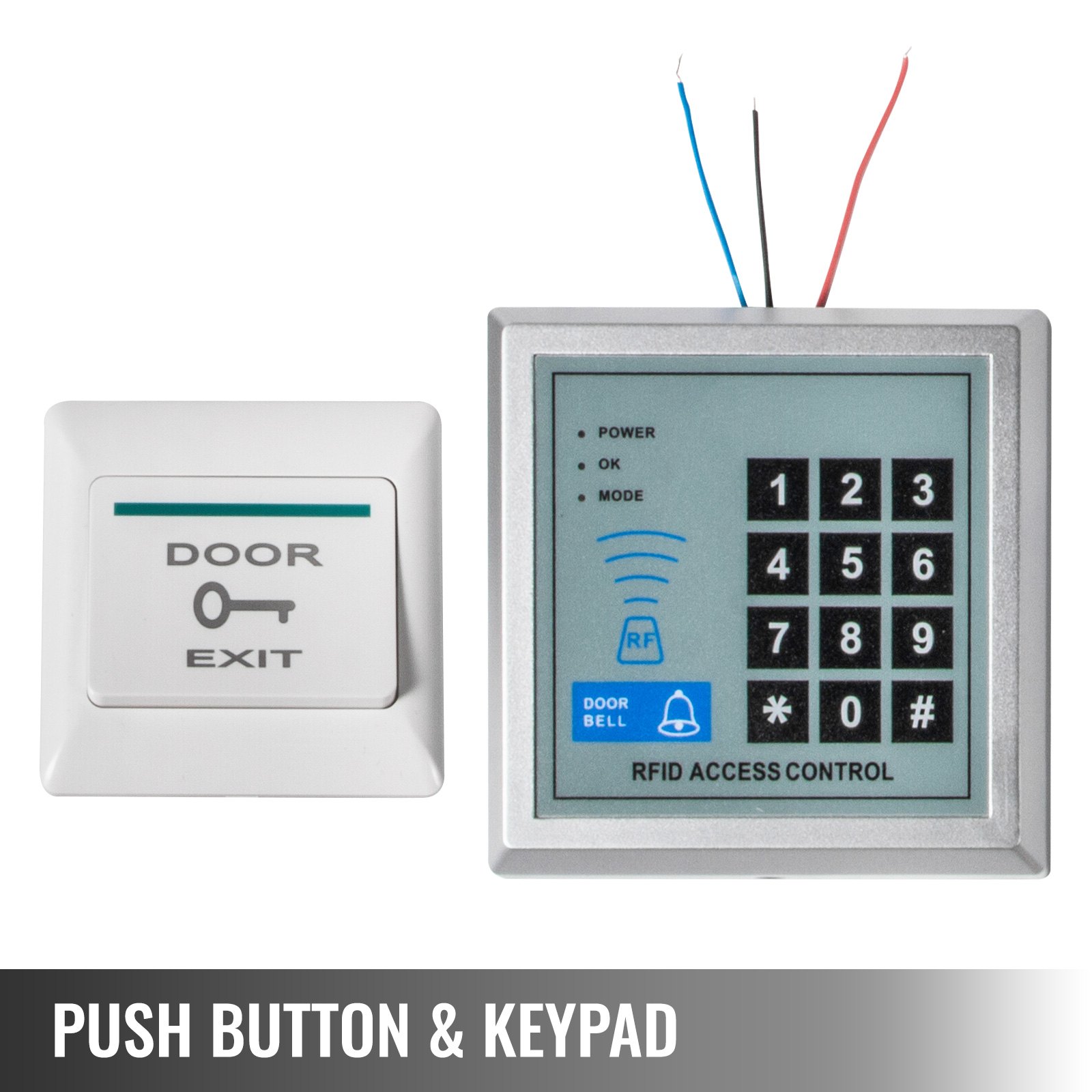

Push button & keyboard
The push button features a powerful opening function. It can enable remote door opening and automatic door closing. An access controller can also be installed by inserting IC cards.

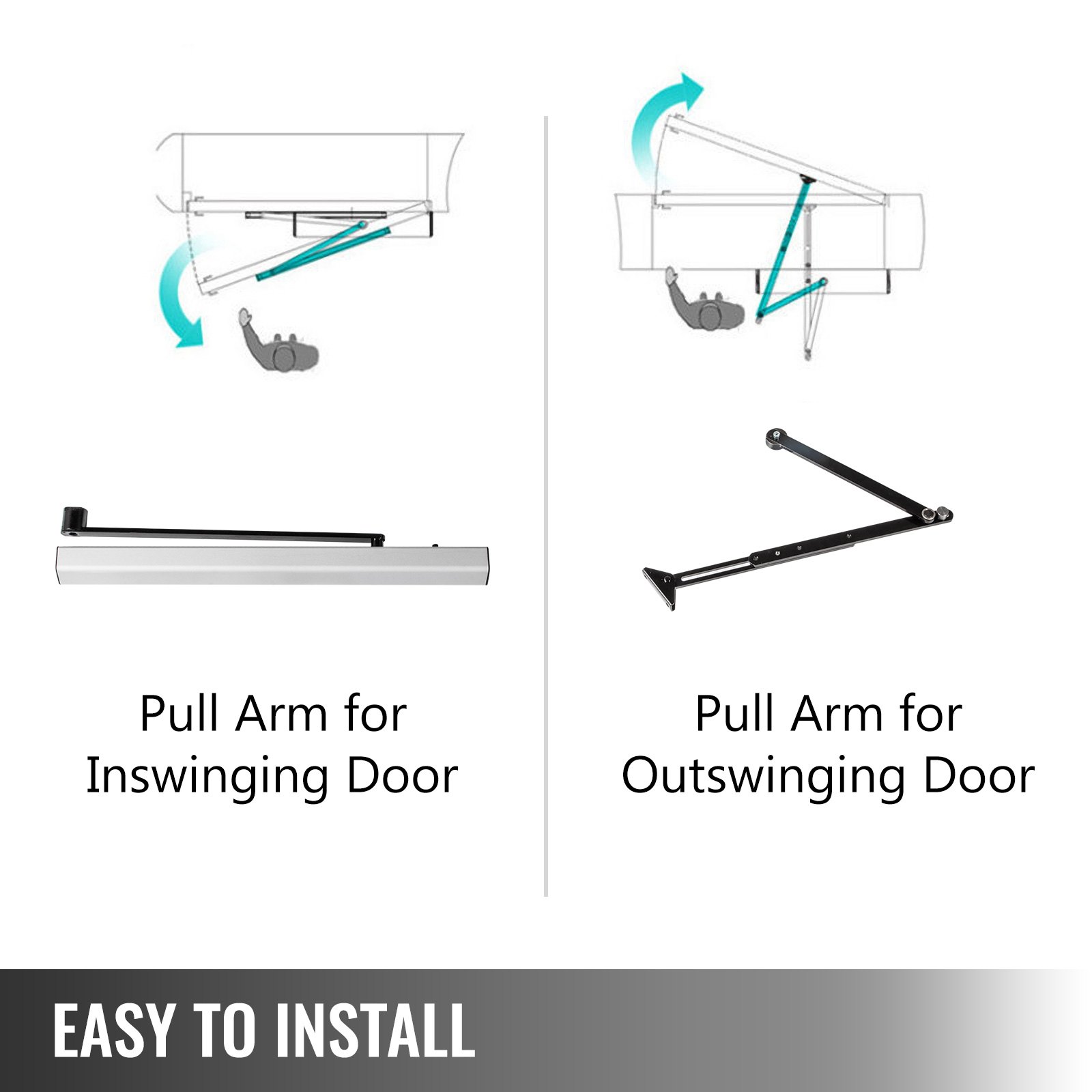

Easy to install
It's easy to follow the instructions. You can choose whether to open or retract the arm. The operating noise is below 55 dB. The hold-open time can be set from 1 to 30 seconds.
Maximum compatibility
The electric door opener and closer offers many conveniences. The opening time is 3 to 7 seconds. It is commonly used for banks, fire doors, medical facilities, private villas, etc.
- Material: Aluminum alloy / Stainless steel / Cast iron
- Mains voltage: 110-240 VAC (+/- 10%)
- Motor - Voltage: Brushless DC 24V motor
- Power consumption: 50 W
- Product size: 52.1 x 9.4 x 8.1 cm / 20.5 x 3.7 x 3.2 inches
- Door width: max. 120 cm; Min. 66 cm
- Maximum opening angle: 120 degrees
- Item weight: 10 kg/22 lbs

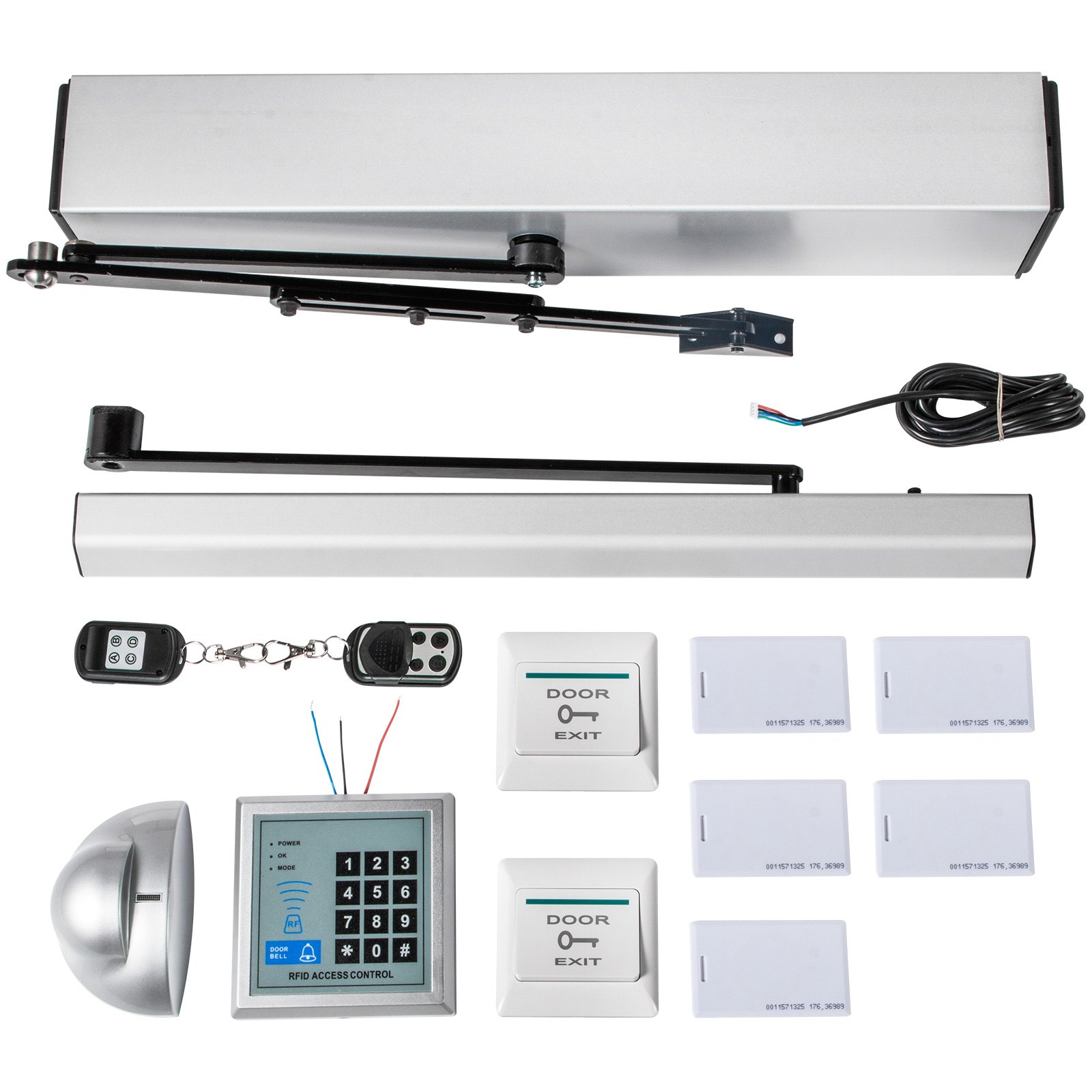

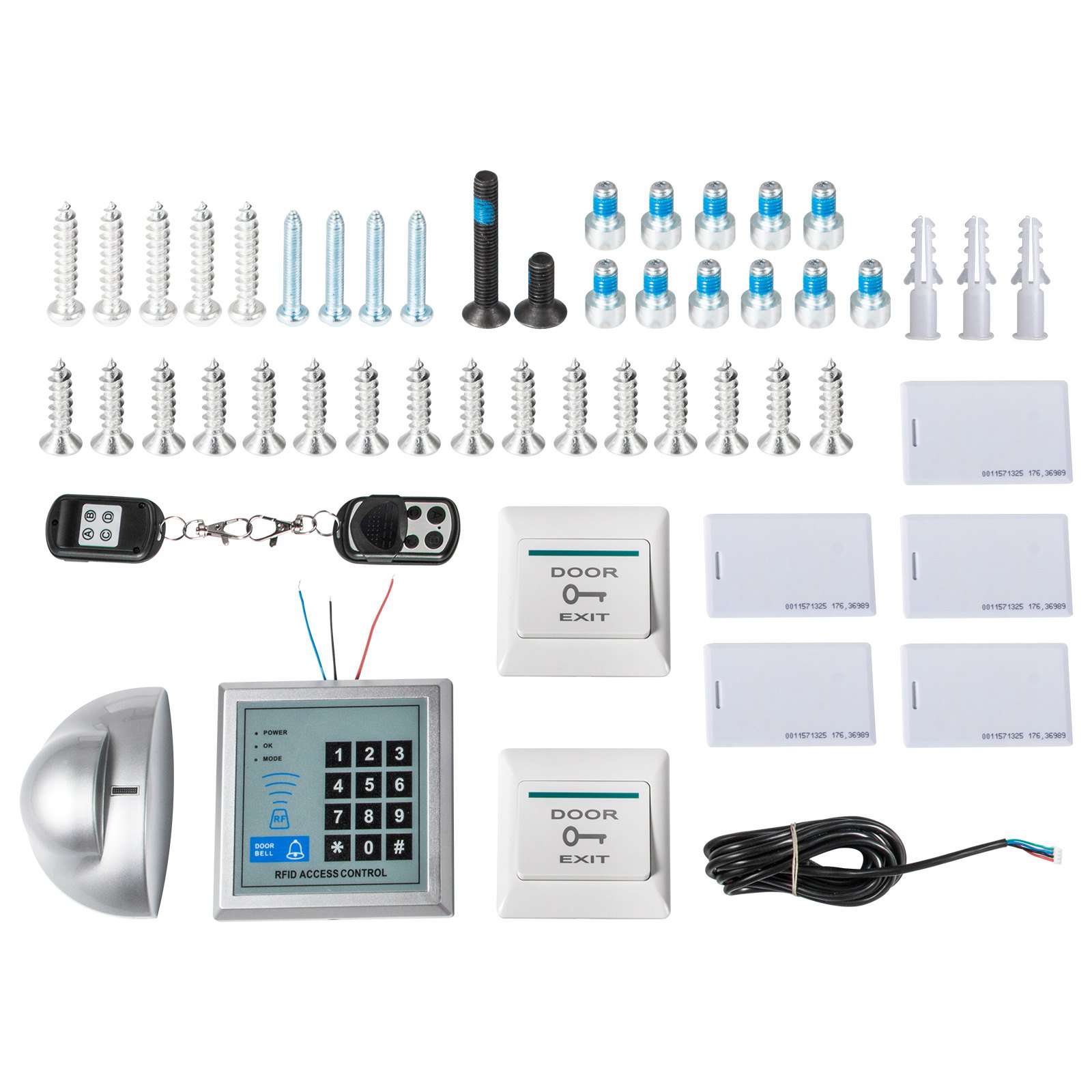

- 1 x Automatic door closer
- 2 x remote control
- 2 x snap fastener
- 2 x pull arm / push arm
- 5 x IC card
- 1 x Access Controller
- 1 x Sensor
- 1 x power cable
- 1 x screw set
- 1 x User manual
Automatic door closers
This door opener protects your door from damage, being rustproof, wear-resistant, and extremely durable. It is made of an aluminum alloy and stainless steel. The microcomputer control allows you to adjust the door's opening direction. The comprehensive set includes a sensor, two remote controls, two push buttons, and more. It's an essential door opener for your door.
- Smart door opener
- Interference suppression sensor
- Wireless remote control
- Easy assembly
Extended door opener
The automatic swing door opener features an aluminum alloy and stainless steel construction for wear and rust resistance. An ultra-secure and creep-resistant ABS switch is included.
Durable and stable sensor
The electric door opener's sensor can detect movement automatically. It offers fast and reliable detection. The sensor of the swing door opener is unaffected by temperature, altitude, or humidity.
Multifunction remote control
The remote control includes four automatic door models with buttons "A" / "B" / "C" / "D". It can control the sensor switch. It can also directly adjust the speed and force of the door opening and closing.
Push button & keyboard
The push button features a powerful opening function. It can enable remote door opening and automatic door closing. An access controller can also be installed by inserting IC cards.
Easy to install
It's easy to follow the instructions. You can choose whether to open or retract the arm. The operating noise is below 55 dB. The hold-open time can be set from 1 to 30 seconds.
Maximum compatibility
The electric door opener and closer offers many conveniences. The opening time is 3 to 7 seconds. It is commonly used for banks, fire doors, medical facilities, private villas, etc.
- 1 x Automatic door closer
- 2 x remote control
- 2 x snap fastener
- 2 x pull arm / push arm
- 5 x IC card
- 1 x Access Controller
- 1 x Sensor
- 1 x power cable
- 1 x screw set
- 1 x User manual
- Material: Aluminum alloy / Stainless steel / Cast iron
- Mains voltage: 110-240 VAC (+/- 10%)
- Motor - Voltage: Brushless DC 24V motor
- Power consumption: 50 W
- Product size: 52.1 x 9.4 x 8.1 cm / 20.5 x 3.7 x 3.2 inches
- Door width: max. 120 cm; Min. 66 cm
- Maximum opening angle: 120 degrees
- Item weight: 10 kg/22 lbs
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (15)
Buongiorno, il telecomando su che frequenza megahertz funziona? Grazie
Il telecomando funziona a una frequenza di 315 MHz.
By vevor
Helpful
(
1
)
PUO' ESSERE COMANDATO A DISTANZA ?
POSSO APRIRE E CHIUDERE LA PORTA DA REMOTO COLLEGANDOLO A INTERNET ?
L'apriporta non viene fornito con un modulo remoto, puoi acquistare tu stesso un modulo remoto.
By vevor
Helpful
(
1
)
Se volessi collegare una lampada 12/24V che stia accesa durante apertura e chiusura dove va collocata?
È possibile installare un relè per collegarlo alla porta.
By vevor
Helpful
(
0
)
Buongiorno, l'elettricista prima di montare il braccio ha testato con corrente elettrica il motorino e so è accorto che ruota sempre in un verso e non si ferma mai. Il motorino non ha un fine corsa che ruota per un certo grado e poi si ferma ? Per invertire il senso di rotazione (da apertura a chiusura) come si fa ? ....il motorino si blocca e non ruota più quando la porta arriva al muro e si blocca ? Dando nuovamente l'impulso inverter la rotazione chiudendo la porta?
Solo dopo aver inviato un segnale di apertura, la porta si aprirà e si fermerà solo quando incontrerà una resistenza superiore a 8 kg. A questo punto, la porta è considerata in posizione di apertura e potrà essere utilizzata normalmente.
Se questa risposta non ha risolto il problema, vi preghiamo di contattarci nuovamente per ricevere assistenza.
By vevor
Helpful
(
0
)
Il motoriduttore per porte a battente deve essere installato; quando la porta è in posizione semiaperta e viene alimentata, essa si chiuderà lentamente e si fermerà solo quando incontrerà una resistenza superiore a 8 kg. A questo punto, la porta è considerata in posizione di chiusura.
By vevor
Helpful
(
0
)
È possibile collegarlo ad una serratura elettrica sulla medesima porta?
Compatibile solo con serrature magnetiche
Se questa risposta non risolve il problema, contattaci nuovamente per ricevere assistenza.
By vevor
Helpful
(
0
)
